| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR213-V-2B |
| Minimum Order Quantity: | 1 piece |
| Price: | US$500-US$800 |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-5 working days after payment |
| Payment Terms: | Western Union, L/C, T/T,PAYPAL |
| Supply Ability: | 3000 sets per month |
| Material: | SUS316 Stainless Steel Body | Warranty: | 2 Years |
|---|---|---|---|
| Weather Protection: | IP54 | Handset: | No Handset |
| Version: | SIP | Application: | Gate, Prisons, Jail, Parking Lots, Hospitals, Guard Stations, Police Stations, Bank Halls, ATM Machines |
| Color: | Grey, Blue, Or Optional | LCD: | 7 Inch 1024*600 |
| TP: | 5 Point G+G Capacitive Touch Screen | Camera: | Front Cam: 5.0 MP With Infrared |
| Operating System: | Android 5.1 | ||
| High Light: | SUS316 Help Point Intercom,1024*600 LCD Help Point Intercom,Android 5.1 Video Visitation Telephone |
||
Product Description
JR213-V-2B.pdf Video Visitation Help Point Intercom

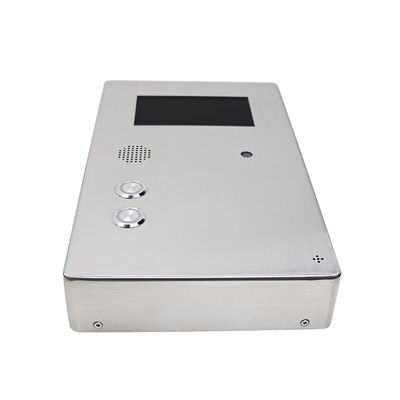

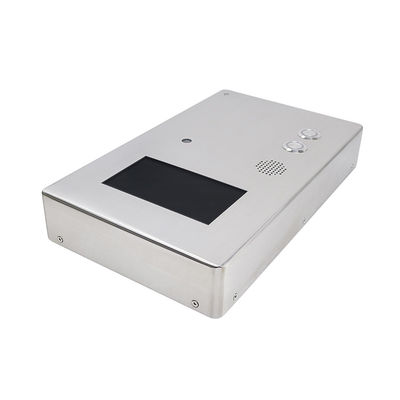

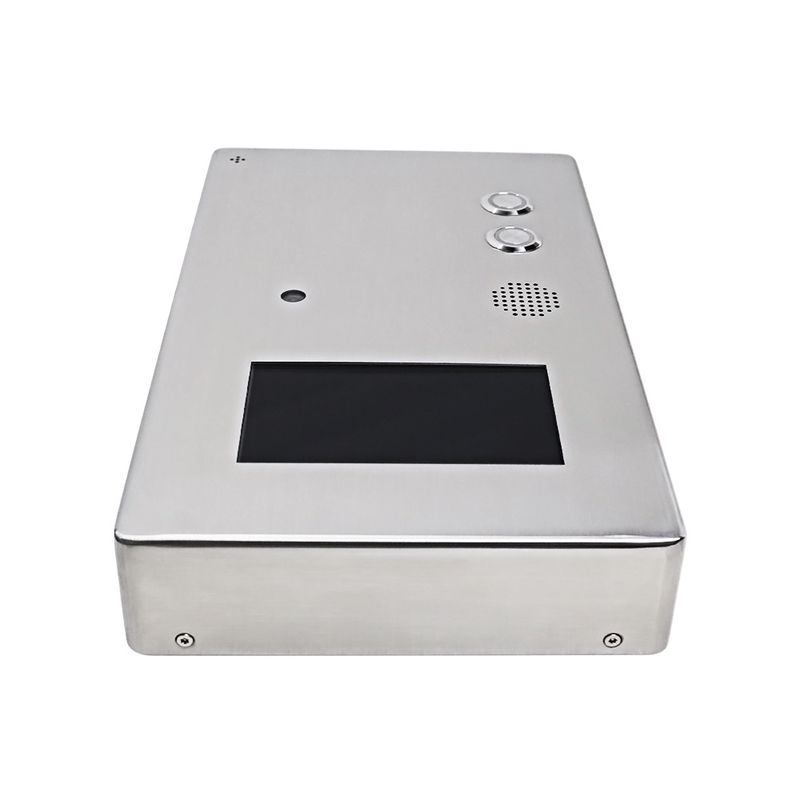

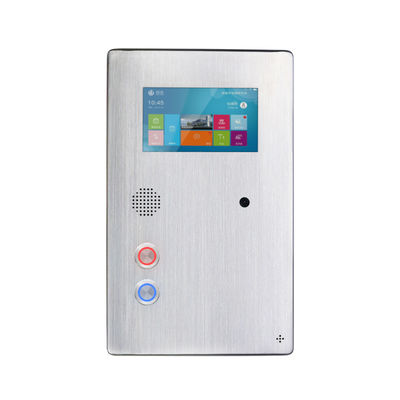

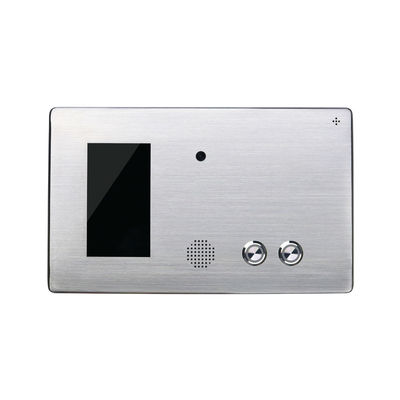

JR213-V-2B Video Visitation Help Point Intercom is mainly composed of a built-in camera, display screen and two waterproof buttons. Users can easily take video calls for help so that both sides fully feel the feeling of the scene to improve efficiency.
| Casing Material | SUS 316 stainless steel body |
| Colors | Blue, Grey, Black or Customize |
| Handset | No handset |
| Keypad |
2 waterproof stainless steel push buttons |
| Temperature | Operating: -30°C to +65°C Storing: -40°C to +75°C |
| Weather Resistance | IP54 |
| Ringing Tone | Shrill warble tone 90 dBA @ 1 metre typical |
| Face Recognition | Support Baidu / Yuemian face recognition |
| Door opening methods | Support password opening, face opening, remote opening of mobile phone |
| Personalized setting | The SIP standard protocol let it makes audio and vedio communicates with the indoor unit |
Product Specification
Video Visitation Help Point Intercom
| System Configuration | |
| OS | Android 5.1 |
| CPU | Quad-Core ARM Cortex A17 CPU @ 1.8 GHz |
| RAM | LPDDR3 1G |
| ROM | EMMC 8G |
| SIP Protocol | |
| Codec | G.723.1 / G.729 |
| Audio Format | GSM / PCMU / PCMA / OPUS |
| Audio Compression codec | Speex-16000 / 8000 / 32000 |
| Support Codec | G.7211-16000 / G.7211-32000 |
| Other Parameters | |
| LCD | 7 inch 1024*600 |
| Touch Panel | 5 point G+G capacitive touch screen |
| Camera |
Front cam: 5.0 MP with infrared |
| USB | Micro usb OTG 2.0 |
| RJ45 | IEE802.3 af |
| Speaker | 10W |
Main Functions
Video Visitation Help Point Intercom
★ Built-in HD infrared camera
★ Video supports H.264, H.263 encoding
★ Flexible hardware design, rich peripheral interface
★ Adopt hardware DSP echo cancellation technology
★ The chip designs like car's specification, can apply to variety of complex environments easily.
★ It adopts the standard SIP (RFC3261) protocol and it's compatible with the mainsteam IP-PBX platform in the market.
Applications & Project Display
Video Visitation Help Point Intercom
Video Visitation Help Point Intercom is ideal for parking lots, gate, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums etc.
Packing & Delivery
Video Visitation Help Point Intercom
| Unit Size | 430 *258 *70 (mm) |
| Carton Size | 500 *320 *80 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 4 KG |
| Gross Weight | 4.5 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
