1.5W Full duplex IP65 20mA Vandal Proof LCD Telephones

Name: 1.5W Full duplex IP65 20mA Vandal Proof LCD Telephones
Brand: J&R Technology Limited
SKU: JR212-FK
Price: 601.00 USD
Availability: InStock

Brand Name:	J&R
Model Number:	JR212-FK
MOQ:	1 Piece
Price:	negotiable
Payment Terms:	L/C, T/T, Western Union,PayPal
Supply Ability:	10000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Size:

247*130*132(mm)

Color:

Customized

Material:

Stainless Steel

Function:

Communication

Installation:

Wall Mounting

Ringer Volume:

90~95dB(A) At A Distance Of 1 M

Temperature:

Operating: -30°C To +65°C

Ingress Protection Rating:

IP65

Warranty:

2 Years

Net Weight:

3.5 Kg

Gross Weight:

4 Kg

Feature:

Anti-Vandal

Packaging Details:

J&R standard packing ,pearl cotton, carton

Supply Ability:

10000pcs per month

Highlight:

20mA Vandal Proof LCD Telephones

IP65 Vandal Proof LCD Telephones

1.5W Vandal Resistant Analogue Telephone

Product Description

JR212-FK.pdf Wholesale Vandal Proof Digital LCD Telephones

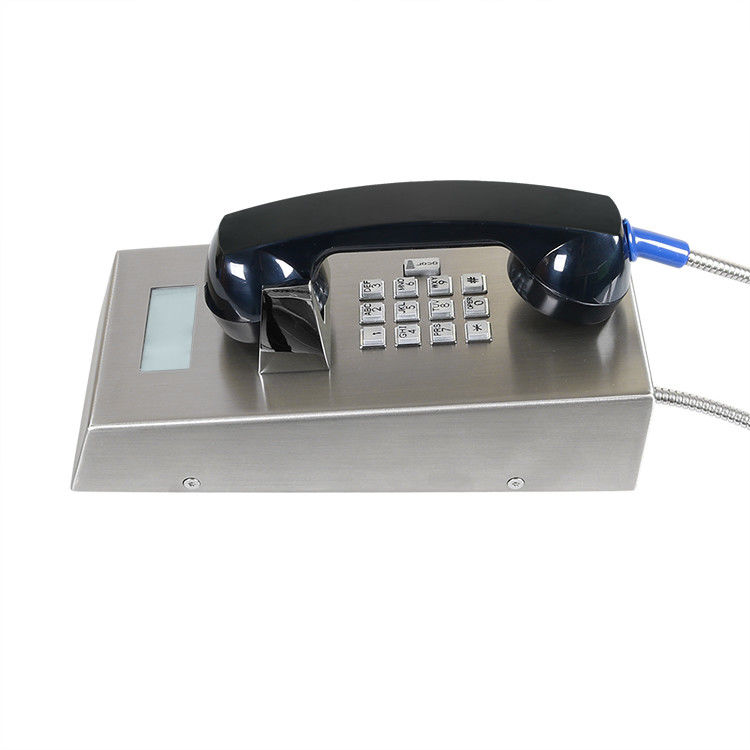

JR212-FK Wholesale Vandal Proof Digital LCD Telephones is housing in a stainless steel body with a LCD display, which perform good oxidation resistance and heat resistance. A volume control button is provided to adjust the volume.

1.5W Full duplex IP65 20mA Vandal Proof LCD Telephones 0

Casing Material	Stainless steel body
Colors	Red, Yellow, Grey
Handset	ABS material handset with stainless steel spiral cord
Keypad	Weather sealed tactile digital keypad Chrome key and frame made of zinc alloy
Temperature	Operating: -30°C to +65°C Storing: -40°C to +75°C
Weather Resistance	IP65
Ringing Tone	Shrill warble tone 80 dBA @ 1 metre typical
Hook switch	Electronic / magnetic with no visible moving parts
Weight	Up to 4 KG depending on option

Product Specification

Wholesale Vandal Proof Digital LCD Telephones

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle:1.5W -Active:1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer Volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Ambient conditions
Protection Type	IP 66 as per EN60529
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +75°C

1.5W Full duplex IP65 20mA Vandal Proof LCD Telephones 1

1.5W Full duplex IP65 20mA Vandal Proof LCD Telephones 2

Features

Wholesale Vandal Proof Digital LCD Telephones

★ LCD display

★ Volume control button

★ SUS316 stainless steel body

★ Standard analogue pgone or SIP phone

1.5W Full duplex IP65 20mA Vandal Proof LCD Telephones 3

Applications & Project Display

Wholesale Vandal Proof Digital LCD Telephones

JR212-FK Wholesale Vandal Proof Digital LCD Telephones is ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building etc.

1.5W Full duplex IP65 20mA Vandal Proof LCD Telephones 4

Packing & Delivery

Wholesale Vandal Proof Digital LCD Telephones

Unit Size	247 130 132 (mm)
Carton Size	340 235 165 (mm)
Packaging Materials	Pearl cotton, carton
Net Weight	3.5 KG
Gross Weight	4 KG

Port	Shenzhen, Guangdong
Lead Time (If you finish the payment today, your order will ship out within the delivery date.)	Quantity(Sets)	1	2-500	>500
	Est. Time(Days)	2	25	To be negotiated

1.5W Full duplex IP65 20mA Vandal Proof LCD Telephones 5

Our Company

Wholesale Vandal Proof Digital LCD Telephones

1.5W Full duplex IP65 20mA Vandal Proof LCD Telephones 6

Our Customers

Wholesale Vandal Proof Digital LCD Telephones

1.5W Full duplex IP65 20mA Vandal Proof LCD Telephones 7

Our Partners

Wholesale Vandal Proof Digital LCD Telephones

1.5W Full duplex IP65 20mA Vandal Proof LCD Telephones 8

Part of Certificates

Wholesale Vandal Proof Digital LCD Telephones

1.5W Full duplex IP65 20mA Vandal Proof LCD Telephones 9
