| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR206-FK |
| Minimum Order Quantity: | 1 set |
| Price: | US$189~US$299 |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 sets per month |
| Material: | Cold Rolled Steel | Color: | Bule, Or Optional |
|---|---|---|---|
| Warranty: | 2 Years | Weather Protection: | IP65 |
| Handset: | ABS Material With Armored Cord | Keypad: | Full Rugged & Durable Keypad |
| Voice Control Button: | Yes | Vandal Resistant: | Yes |
| Highlight: | Full Keypad Vandal Resistant Telephone,Steel 4G Vandal Resistant Telephone,80dBA 4G Vandal Proof Phone |
||
Product Description

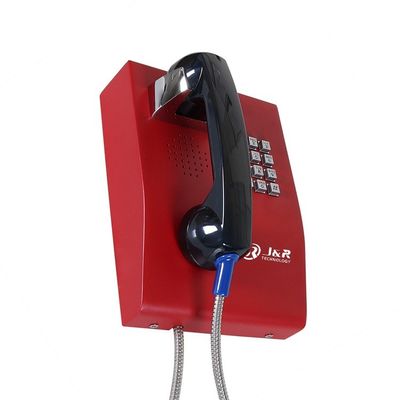

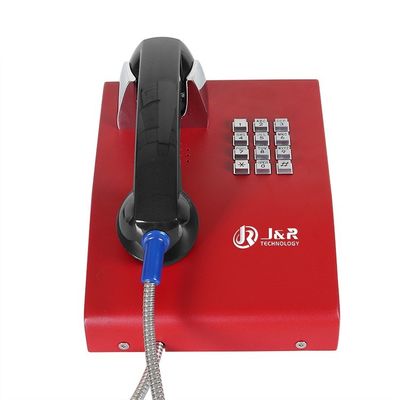

JR206-FK 4G Support Telephone with Full Keypad
JR206-FK 4G Support Telephone with Full Keypad housed in cold rolled steel box so that the telephone has anti-vandal characteristics.
JR206-FK is equipped with industrial grade noise reduction handset and waterproof metal full keyboard.
The telephone supports wall mounting and desk mounting.
The color and function of the phone can be customized according to customer needs.
| Casing Material |
Cold rolled steel body |
| Colors | RED, YELLOW, GREY |
| Handset Material | ABS material handset with stainless steel spiral cord |
| Keypad |
Weather sealed tactile digital keypad. Chrome key and frame made of zinc alloy. Vandal resistance. |
| Temperature |
Operating: -30°C to +70°C Storing: -40°C to +75°C |
| Weather Resistance | IP65 |
| Ringing Tone | Shrill warble tone 80dBA at 1 metre typical |
| Hook switch |
Electronic / magnetic with no visible moving parts |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 4 kg depending on option |
Technical Specification
4G Support Telephone with Full Keypad
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
Features
4G Support Telephone with Full Keypad
Applications
4G Support Telephone with Full Keypad
JR206-FK 4G Support Telephone with Full Keypad suitable for use in park, roadside, bank, ATM, campus, stadiums, jail, outside or outside building, etc.
Packing & Delivery
4G Support Telephone with Full Keypad
| Unit Size | 248 *185 *129 (mm) |
| Carton Size | 230 *200 *150 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 2.5 KG |
| Gross Weight | 3.5 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
Our Services
4G Support Telephone with Full Keypad
You have bought a modern product subject to meticulous quality control. If any questions regarding the telephone, or malfunctions should occur - even after the guarantee has expired - please contact . Please have the type denomination and product number (to be found on the nameplate) ready.
Our Company
4G Support Telephone with Full Keypad
J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories.
(All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Version,GSM/3G/4G Version)
After well study your information,we sincerely hope to enter into partnership with your esteemed company and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
If you’re interested in our product, welcome to inquiry. To get more details about our telephone, please feel free to e-mail us. We will try our best to meet your needs.
