Free Dial IP66 Explosion Proof Keypad Telephone

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ATEX
Model Number: JREX106-VoIP
Minimum Order Quantity: 1 Piece
Price: negotiable
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detail Information
Product Name: ExResistTel Explosion Proof Phone Color: Yellow,Orange, Black Or Customized
Version: Analogue, SIP, VoIP Installation: Wall Mounting Or Desk Mounting
Warranty: 2 Years Net Weight: 7KG
Gross Weight: 8KG Unit Size: 246 *339 *126 (mm)
Packaging Materials: Pearl Cotton, Carton Function: Explosion Proof,free Dial,IP66
Application: Refineries, Sewage Plants, Hydroelectric Facilities, Chemical Plants,Food Processing Plants, Mine, Tunnel, Etc
High Light:

IP66 Stainless Steel Telephone

,

Free Dial Vandal Resistant Phone


Product Description



Product Description

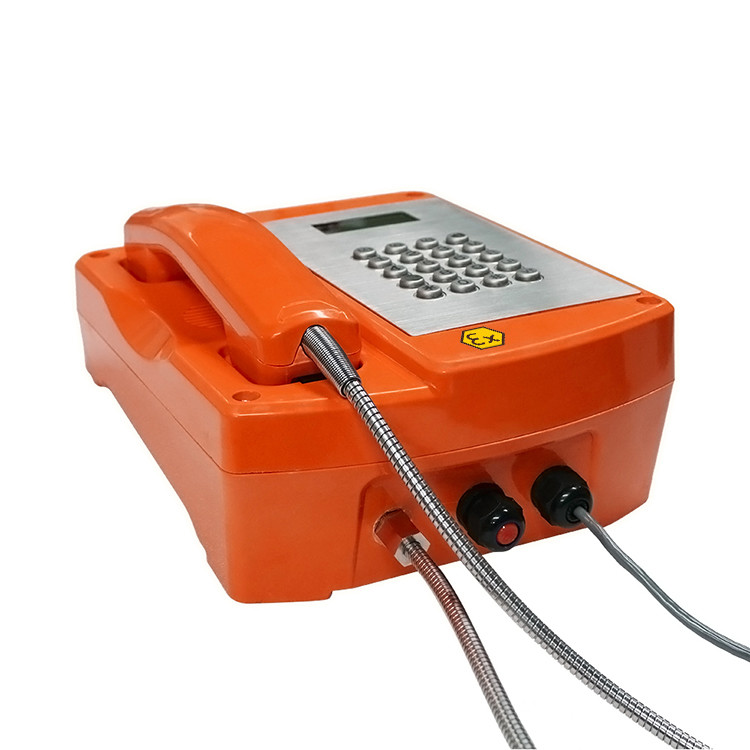

JREX106-VoIP Explosion-proof Keypad Telephone with Display Screen



JREX106-SIP are designed to provide safe,reliable communication in hazardous areas.



The telephones sets were developed for operation in the petrochemical industrial,usually used in production,transportation and refining of oil,natural gas,coal and etc.



The housing is made of impact and shock-resistant GRP and even resistant to acids, alkali and lubricants.





 Casing Material High Impact Glass fibre-reinforced polyester
 Colors yellow, other colors to special order
 Handset Material High Impact Thermoset Resin Compound
 Keypad 20-piece stainless steel keypad
 Temperature Operating: -45°C to +70°C
Storing: -45°C to +75°C
 Weather Resistance IP66
 Ringing Tone Shrill warble tone 95 dBA at 1 metre typical
 Explosion Protection II 2G Ex e ib [ib] mb IIC T4 Gb
II 2D Ex ib [ib] tb IIIC T135 °Db
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22
 Relative humidit Up to 95%(non-condensing)
 M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
 Hook Switch Life >1 000 000 Operations





Free Dial IP66 Explosion Proof Keypad Telephone 0







Free Dial IP66 Explosion Proof Keypad Telephone 1









Technical Specification









Free Dial IP66 Explosion Proof Keypad Telephone 2










Explosion-proof Keypad Telephone with Display Screen



Analogue Version
 Power Supply Line powered i.e. drawn from telephone line.
It doesn’t require any external AC Supply.
 Supply Voltage 24 VDC to 66 VDC
 Supply Current 20 mA DC to 100 mA DC
 Ringer Volume Max. approx.90dB(A) in 1 m distance
 Lightning / Transients Protection to ITU-T k .21 enhanced levels



SIP Version
 Power Supply Power over Ethernet according to IEEE 802.3af over spare cable pair or external supply, 12V DC
 Power Consumption(PoE) 2.5 W
 SIP Protocol SIP ( RFC 3261 Compliant )
 Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
 Communication Type Full duplex
 Ringer Volume 95dB(A)in 1m distance



Ambient conditions
 Protection Type IP 66 as per EN60529
 Operating Temperature -40˚ to +70˚C (-22˚F to +140˚F)
 Storage Temperature -45℃ to +70℃ (-22°F to 158°F)
 Display temperature -10 °C / +55 °C







Features









Free Dial IP66 Explosion Proof Keypad Telephone 3








Explosion-proof Keypad Telephone with Display Screen

Noise canceling microphone

Magnetic reed hook switch to reduce parts subject to wear

Hearing-aid compatible (HAC) receiver

High impact thermoset resin industrial housing and ergonomic heavy duty

Corrosion resistant hardware

Large urethane coated watertight metal keypad









Packing & Delivery







Free Dial IP66 Explosion Proof Keypad Telephone 4









Explosion-proof Keypad Telephone with Display Screen



 Unit Size 204 *334 *126(mm)
 Carton Size 200 *300 *440 (mm)
 Packaging Materials Pearl cotton, carton
 Net Weight 8 KG
 Gross Weight 8.8 KG



Port Shenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)
Quantity(Sets) 1 2-500 >500
Est. Time(Days) 2 25 To be negotiated









Our Services









Free Dial IP66 Explosion Proof Keypad Telephone 5











Explosion-proof Keypad Telephone with Display Screen

ODM & OEM products or solutions



Sample order is greatly welcomed



We will reply your inquiry within 12 hours



Update the productive process and show the packing details



After delivered the goods, we will track the products for you once every two days, until you get the products.



When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.









Our Company





Free Dial IP66 Explosion Proof Keypad Telephone 6









Explosion-proof Keypad Telephone with Display Screen

J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn’t.

(All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Version,GSM/3G/4G Version)
After well study your information,we sincerely hope to enter into partnership with your esteemed company and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.









FAQ







Explosion-proof Keypad Telephone with Display Screen



Q: Do you have any MOQ limit?

A: Low MOQ, 1pc is available



Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.



Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.



Q: What’s the quality standard of your products?

A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.



Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q: Can you produce a product in a color of my choosing?

A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.



Q: Do you provide an installation service?

A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.



Q: When can I receive your quotation?

A: Within 12 hours



Q: How can I pay you?

A: Many convenient methods for choose: Paypal, T/T, L/C.
