Place of Origin: | Shenzhen, China |
---|---|
Brand Name: | J&R |
Certification: | CE, FCC, RoHS, ISO9001 |
Model Number: | JR211-FK |
Minimum Order Quantity: | 1 Piece |
Price: | negotiable |
Packaging Details: | J&R standard packing ,pearl cotton, carton |
Delivery Time: | 3-7 working days after payment |
Payment Terms: | L/C, T/T, Western Union,PayPal |
Supply Ability: | 10000pcs per month |
Size: | 300 *150 *160(mm) | Color: | Gray Or Customized |
---|---|---|---|
Material: | Die Cast Aluminum | Function: | Communication |
Installation: | Desk Mounting | Ringer Volume: | 90~95dB(A) At A Distance Of 1 M |
Temperature: | Operating: -30°C To +65°C | Ingress Protection Rating: | IP54-IP65 |
Warranty: | 2 Years | Net Weight: | 3 Kg |
Gross Weight: | 4 Kg | ||
Highlight: | VoIP Vandal Proof Phone,SS Emergency Voip Phone |
Product Description

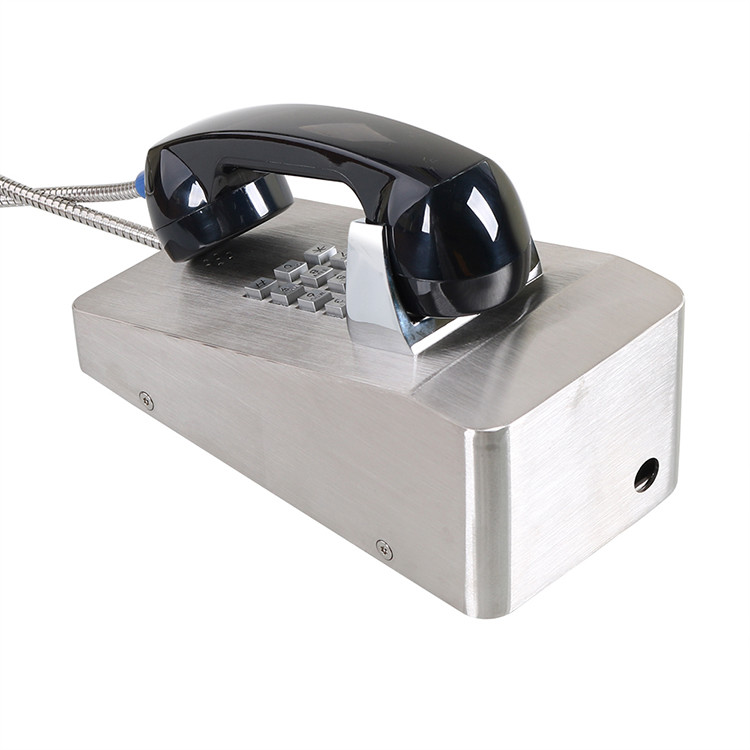

JR211-FK VoIP Stainless Steel Desk Telephone
JR211-FK VoIP Stainless Steel Desk Telephone supports the hotline call, may realize the call to hang up automatically, which is suitable for tunnel, railway, underground mine, prison, guard room, bank and many other areas.
The shell of JR211-FK has a grounding device and is completely isolated from the internal electrical circuit, which has a certain electromagnetic shielding function.
The main circuit of the telephone is controlled by industrial grade atml single chip microcomputer, while the performance is stable, the intelligence degree is high, and the program can be upgraded.
Casing Material |
Stainless steel body |
Colors | Yellow, other colors to special order |
Handset Material |
ABS material handset with stainless steel spiral cord |
Keypad |
Weather sealed tactile digital keypad. Chrome key and frame made of zinc alloy. Vandal resistance. |
Temperature |
Operating: -30°C to +65°C Storing: -40°C to +75°C |
Weather Resistance | IP65 |
Ringing Tone | Shrill warble tone 80 dBA at 1 metre typical |
Hook switch | Electronic / magnetic with no visible moving parts |
M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
Weight | Up to 4 kg depending on option |
Technical Specification
VoIP Stainless Steel Desk Telephone
Analogue Version | |
Power Supply | From the analogue telephone network |
Supply Voltage | 24 VDC to 65 VDC |
Supply Current | 20 mA DC to 100 mA DC |
Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
SIP Version | |
Power Supply | PoE or 12V DC |
Power Consumption | -Idle:1.5W -Active:1.8W |
SIP Protocol | SIP 2.0 (RFC3261) |
Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
Communication Type | Full duplex |
Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
Ambient conditions | |
Protection Type | IP 66 as per EN60529 |
Operating Temperature | -30°C to +70°C |
Storage Temperature | -40°C to +75°C |
Features
VoIP Stainless Steel Desk Telephone
Applications
VoIP Stainless Steel Desk Telephone
JR211-FK VoIP Stainless Steel Desk Telephone is suitable for the centre of transport, production production and utilities commercial, manufacturing and construction, educational & government facilities or any location in which extra security is needed.
Packing & Delivery
VoIP Stainless Steel Desk Telephone
Unit Size | 300 *150 *160 (mm) |
Carton Size | 200 *300 *440 (mm) |
Packaging Materials | Pearl cotton, carton |
Net Weight | 3 KG |
Gross Weight | 4 KG |
Port | Shenzhen, Guangdong | |||
Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
Est. Time(Days) | 2 | 25 | To be negotiated |
Customised Accessories
VoIP Stainless Steel Desk Telephone
J&R provide LOGO printing and accessories customization services.
We will also provide suitable solutions according to the needs of customers.
HOOK FUNCTION: Magnetic hooks for choice
KEYBOARD SHAPE: Round buttons and square buttons for choice
INDICATOR LAMP COLOR: Red, yellow, blue, green for choice
MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice
HADSET CORD: Black curly handset cord or stainless steel spiral cord
If you have any custom requirements, please feel free to contact us.
Our Company
VoIP Stainless Steel Desk Telephone
In the future, J&R Technology will further strengthen enterprise management, increase R&D investment, speed up the pace of technological innovation and sustained improve the core competitiveness of enterprise products so that to bring more satisfactory purchase and use experience to customers and users as well as make greater contributions to infrastructure construction.
FAQ
VoIP Stainless Steel Desk Telephone
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What’s the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products against delivery.
Q: How about the shipping?
A: 1.Send by DHL / TNT / UPS / FEDEX / EMS,3-5days
2.Send by Air: Arrive at destination Airport fast then pick it up by yourself
3.Ship by Sea: Low shipping cost and slow delivery (15 - 30 days)
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
