| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR103-CB |
| Minimum Order Quantity: | 1 Piece |
| Price: | US$179~US$350 |
| Packaging Details: | J&R standard packing ,pearl cotton, carton |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, T/T, Western Union，PayPal |
| Supply Ability: | 10000pcs per month |
| Color: | Yellow Or Customized | Material: | Die-casting Aluminum Alloy |
|---|---|---|---|
| Version: | Analogue, SIP, GSM, 3G | Installation: | Wall Mounting |
| Warranty: | 2 Years | Weight: | 5 KG |
| Size: | 204 *334 *74(mm) | Function: | SOS |
| Power Input: | 12-24V DC | Weather Resistance: | IP66-IP67 |
| Packaging Materials: | Pearl Cotton, Carton | Door: | Optional |
| Feature: | Hotline | Product Name: | Outdoor Hotline Speed Dial Emergency Weatherproof Telephone For Tunnel |
| High Light: | VoIP Waterproof Emergency Phon,SIP Industrial Analog Telephone |
||

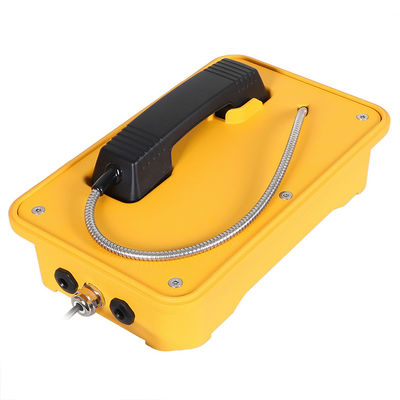

JR103-CB VoIP Industrial Telephone
JR103-CB VoIP Industrial Telephone WIFI SIP Phone is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress.
The inner ring of the cover with imported silicone rubber sealing ring, bringing about waterproof and dustproof, which is extremely suitable for high temperature and rainy climate.
The handset manufactured with industrial standards and moulded Bulk Molding Compound which possess premium high strength electrical grade with resistance to smoke generation, weathering, and corrosive environments. Meanwhile, the handset is equipped with a hearing-aid and a noise-reducing microphone, which allows high definition communication, even at noisy areas.
| Casing Material | Die cast aluminium, epoxy powder coated |
| Colors | Yellow, other colors to special order |
| Handset Material | Cycoloy with stainless steel spiral cord |
| Keypad | No keypad |
| Temperature |
Operating: -30°C to +65°C Storing: -40°C to +75°C |
| Weather Resistance | IP66 |
| Ringing Tone | Shrill warble tone 80 dBA at 1 metre typical |
| Hook switch | Electronic / magnetic with no visible moving parts |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 5 kg depending on option |
VoIP Industrial Telephone WIFI SIP Phone
Front & Motherboard
Back & Box
Product Description
VoIP Industrial Telephone WIFI SIP Phone
Technical Specification
VoIP Industrial Telephone WIFI SIP Phone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +75°C |
Features
VoIP Industrial Telephone WIFI SIP Phone
Applications
VoIP Industrial Telephone WIFI SIP Phone
JR101-CB VoIP Industrial Telephone WIFI SIP Phone more commonly used in toll station, gas station, mine, underground pipe gallery, tunnel, sewage plant, hydropower station, steel plant, food processing factory and so on.
Packing & Delivery
VoIP Industrial Telephone WIFI SIP Phone
| Unit Size | 204 *334 *109 (mm) |
| Carton Size | 200 *300 *440 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 5 KG |
| Gross Weight | 6 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
Customised Accessories
VoIP Industrial Telephone WIFI SIP Phone
J&R provide LOGO printing and accessories customization services.
We will also provide suitable solutions according to the needs of customers.
HOOK FUNCTION: Magnetic hooks for choice
KEYBOARD SHAPE: Round buttons and square buttons for choice
INDICATOR LAMP COLOR: Red, yellow, blue, green for choice
MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice
HADSET CORD: Black curly handset cord or stainless steel spiral cord
If you have any custom requirements, please feel free to contact us.
Our Company
VoIP Industrial Telephone WIFI SIP Phone
J&R Technology offers a wide variety of special telephones and unique customs services to customers. Our telephone is suitable for all IP systems, and we have provided many customers with excellent emergency system solutions and customized telephone service, which is very mature in the manufacturing of the telephone.
FAQ
VoIP Industrial Telephone WIFI SIP Phone
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: What’s the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Within 12 hours
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
