Tactile Keypad IP Jail Vandal Resistant Telephone

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR205-FK
Minimum Order Quantity: 1 Piece
Price: negotiable
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detail Information
Material: Stainless Steel Color: Color Optional
Handset Material: ABS Material Handset With Stainless Steel Spiral Cord Keypad: Weather Sealed Tactile Digital Keypad
Operating Temperature: -30°C To +65°C Weather Resistance: IP65
Ringing Tone: Shrill Warble Tone 80 DBA @ 1 Metre Typical Hook Switch: Electronic / Magnetic With No Visible Moving Parts
Unit Size: 300 *120 *101(mm) Packaging Materials: Pearl Cotton, Carton
Net Weight: 3KG Gross Weight: 4KG
High Light:

Jail Stainless Steel IP Telephone

,

Tactile Keypad Vandal Proof Telephone


Product Description




Detailed Presentation


JR205-FK Jail Telephone Set / IP Telephone



JR205-FK Jail Telephone Set / IP Telephone has compact construct, handsome show, steady capability, universal fitting parts and convenient maintains.

JR205-FK adopts stainless steel shell, equipped with magnetic spring hook and waterproof keyboard.

The high quality material makes the telephone have the anti-corrosion and anti-damage performance and the sturdy and durable characteristic.



  Casing Material Stainless steel steel body
  Colors RED, YELLOW, GREY
  Handset Material ABS material handset with stainless steel spiral cord
  Keypad

Weather sealed tactile digital keypad.

Chrome key and frame made of zinc alloy.

Vandal resistance.

  Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

  Weather Resistance IP55
  Ringing Tone Shrill warble tone 80 dBA at 1 metre typical
  Hook switch Electronic / magnetic with no visible moving parts
  M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
  Weight Up to 4 kg depending on option





Jail Telephone Set / IP Telephone

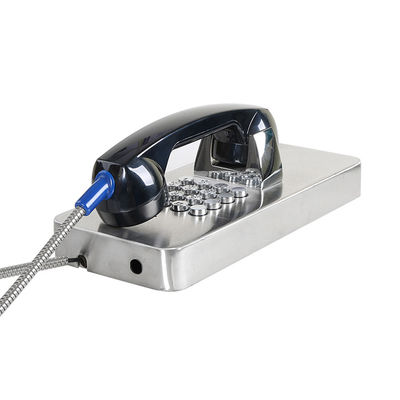

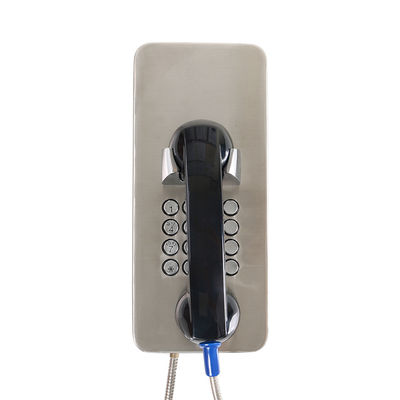

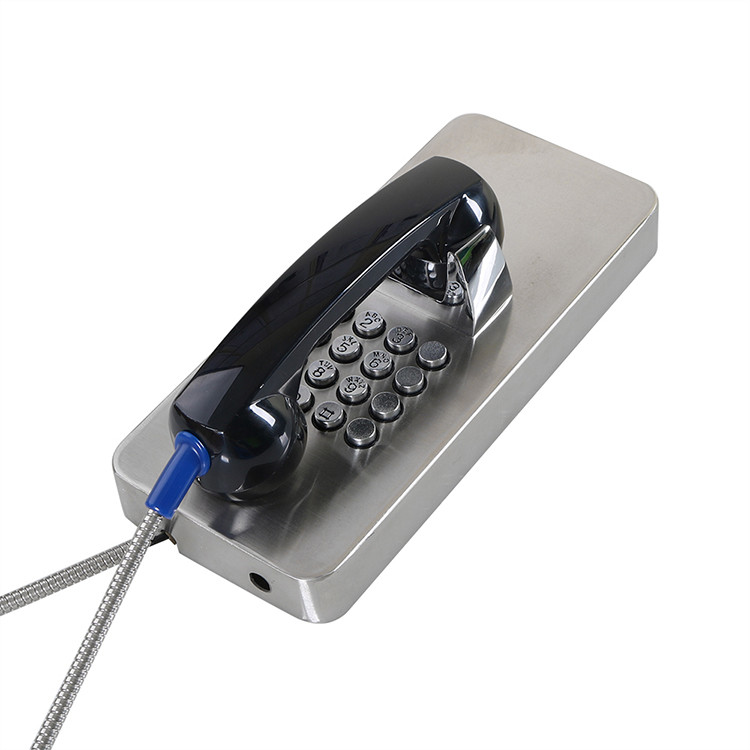

Front & Bottom

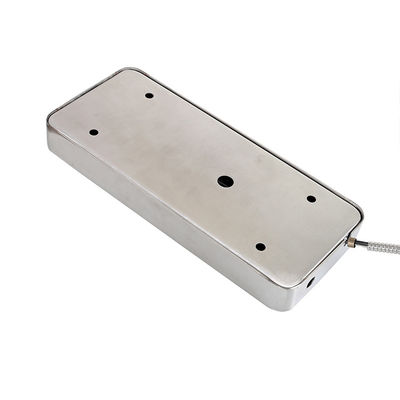

Back & Top















Product Description



Jail Telephone Set / IP Telephone



Heavy Duty, Vandal Resistant Metal Telephones











Technical Specification



Jail Telephone Set / IP Telephone



Heavy Duty, Vandal Resistant Metal Telephones

Robuste Telephone, Multi-function Telephone



Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection Type IP 66 as per EN60529
Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +75°C











Features



Jail Telephone Set / IP Telephone



Heavy Duty, Vandal Resistant Metal Telephones





    ★ Robust housing, constructed of stainless steel

    ★ Cord with stainless steel spiral - tensile force up to 200KG

    ★ Imported ABS and PC composite handset - vandal resistant

    ★ 4 additional buttons programmable for speed-dial

    ★ Weather proof protection - up to IP55

    ★ Magnetic hook -  reduce wear













Applications



Jail Telephone Set / IP Telephone



JR205-FK Jail Telephone Set / IP Telephone suitable for use in airport, hotel, bank, ATM, campus, elevator/lift, jail/prison, outside or outside building, etc.



Rugged Outdoor Weatherproof Telephone













Packing & Delivery



Jail Telephone Set / IP Telephone



Heavy Duty, Vandal Resistant Metal Telephones



 Unit Size 300 *120 *101 (mm)
 Carton Size 240 *235 *165 (mm)
 Packaging Materials Pearl cotton, carton
 Net Weight 3 KG
 Gross Weight 4 KG



Heavy Duty, Vandal Resistant Metal Telephones



Port Shenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)
Quantity(Sets) 1 2-500 >500
Est. Time(Days) 2 25 To be negotiated













Customised Accessories



Jail Telephone Set / IP Telephone



Heavy Duty, Vandal Resistant Metal Telephones



       J&R provide LOGO printing and accessories customization services.

      We will also provide suitable solutions according to the needs of customers.



      HOOK FUNCTION: Magnetic hooks for choice

      KEYBOARD SHAPE: Round buttons and square buttons for choice

      INDICATOR LAMP COLOR: Red, yellow, blue, green for choice

      MOTHERBOARD MODEL: 2G/3G/4G/SIP/GSM for choice

      HADSET CORD: Black curly handset cord or stainless steel spiral cord

      If you have any custom requirements, please feel free to contact us.











Our Company



Jail Telephone Set / IP Telephone

Heavy Duty, Vandal Resistant Metal Telephones



As a specialist in developing special telephone and technical solutions, J&R Technology has deep expertise in emergency communications systems, sensor signal acquisition, high safety applications, high-speed interconnect, and industrial manufacturing telephone standards. The company has long-term cooperated with many well-known international companies to steadily promote product development and innovation. The telephones like industrial telephones, weatherproof telephones and explosion-proof telephones and many other products are adopted by large mines, municipal projects and outdoor scenic spots.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.

If you’re interested in our product, welcome to inquiry. To get more details about our telephone, please feel free to e-mail us. We will try our best to meet your needs.











FAQ



Jail Telephone Set / IP Telephone



Q: Do you have any MOQ limit?

A: Low MOQ, 1pc is available



Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.



Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.



Q: What’s the quality standard of your products?

A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.



Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q: Can you produce a product in a color of my choosing?

A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.



Q: Do you provide an installation service?

A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.



Q: When can I receive your quotation?

A: Within 12 hours



Q: How can I pay you?

A: Many convenient methods for choose: Paypal, T/T, L/C.
