Keypad 95dB IP65 SIP Vandal Resistant Phone LCD Display Screen

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR212-FK
Minimum Order Quantity: 1 Piece
Price: negotiable
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detail Information
Size: 247*130*132(mm) Color: Customized
Material: Stainless Steel Function: Communication
Installation: Wall Mounting Ringer Volume: 90~95dB(A) At A Distance Of 1 M
Temperature: Operating: -30°C To +65°C Ingress Protection Rating: IP65
Warranty: 2 Years Net Weight: 3.5 Kg
Gross Weight: 4 Kg Feature: Anti-Vandal
High Light:

95dB SIP Vandal Resistant Phone

,

IP65 SIP Vandal Resistant Phone

,

ISO9001 Auto Dial Emergency Phone


Product Description





Product Description

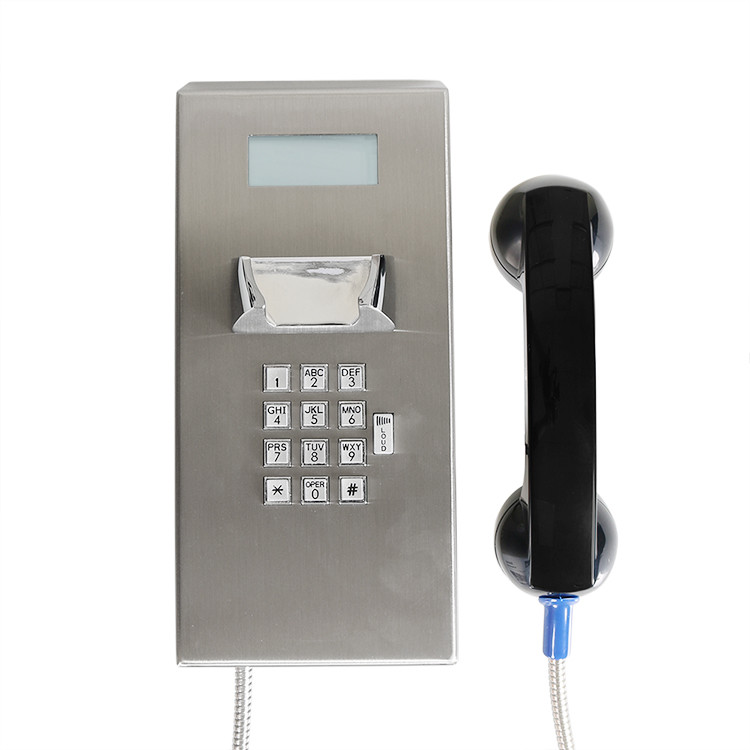

JR212-FK SIP Vandal Resistant Keypad Phone

With LCD Display Screen



Heavy Duty, Vandal Resistant Metal Telephones



  Casing Material

Stainless steel steel body

  Colors RED, YELLOW, GREY
  Handset Material ABS material handset with stainless steel spiral cord
  Keypad

Weather sealed tactile digital keypad.

Chrome key and frame made of zinc alloy.

Vandal resistance.

  Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

  Weather Resistance IP65
  Ringing Tone Shrill warble tone 80 dBA at 1 metre typical
  Hook switch Electronic / magnetic with no visible moving parts
  M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
  Weight Up to 4 kg depending on option











Technical Specification



SIP Vandal Resistant Keypad Phone

With LCD Display Screen



Heavy Duty, Vandal Resistant Metal Telephones

Robuste Telephone, Multi-function Telephone



Analogue Version
 Power Supply From the analogue telephone network
 Supply Voltage 24 VDC to 65 VDC
 Supply Current 20 mA DC to 100 mA DC
 Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
 Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
 Power Supply PoE or 12V DC
 Power Consumption -Idle:1.5W
-Active:1.8W
 SIP Protocol SIP 2.0 (RFC3261)
 Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
 Communication Type Full duplex
 Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
 Protection Type IP 66 as per EN60529
 Operating Temperature -30°C to +70°C
 Storage Temperature -40°C to +75°C











Features



SIP Vandal Resistant Keypad Phone

With LCD Display Screen



Heavy Duty, Vandal Resistant Metal Telephones





Robust housing, constructed of stainless steel, with LCD display

Full Rugged and durable keypad, volume control feature

Imported ABS and PC composite handset - sturdy and durable

Can be connected to any standard two-wire telephone line

Weather proof protection - up to IP65

Programmable for auto-dial - convenient and quick

Supports full duplex

CE,FCC,ROSH compliant - quality assurance

Flexible dial map, support hot-line















Applications



SIP Vandal Resistant Keypad Phone

With LCD Display Screen



JR212-FK SIP Vandal Resistant Keypad Phone With LCD Display Screen suitable for use in airport, roadside, bank, ATM, campus, stadiums, jail, outside or outside building, etc.



Rugged Outdoor Weatherproof Telephone











Packing & Delivery



SIP Vandal Resistant Keypad Phone

With LCD Display Screen



Heavy Duty, Vandal Resistant Metal Telephones



 Unit Size 247 *130 *132 (mm)
 Carton Size 240 *235 *165 (mm)
 Packaging Materials Pearl cotton, carton
 Net Weight 3.5 KG
 Gross Weight 4 KG



Heavy Duty, Vandal Resistant Metal Telephones



Port Shenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)
Quantity(Sets) 1 2-500 >500
Est. Time(Days) 2 25 To be negotiated











Our Services



SIP Vandal Resistant Keypad Phone

With LCD Display Screen



Heavy Duty, Vandal Resistant Metal Telephones



ODM & OEM products or solutions



Sample order is greatly welcomed



We will reply your inquiry within 12 hours



Update the productive process and show the packing details



After delivered the goods, we will track the products for you once every two days, until you get the products.



When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.



J&R telephone is guaranteed for two years.











Our Company



SIP Vandal Resistant Keypad Phone

With LCD Display Screen

Heavy Duty, Vandal Resistant Metal Telephones



J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.

If you’re interested in our product, welcome to inquiry. To get more details about our telephone, please feel free to e-mail us. We will try our best to meet your needs.











FAQ



SIP Vandal Resistant Keypad Phone

With LCD Display Screen



Q: Do you have any MOQ limit?

A: Low MOQ, 1pc is available



Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.



Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.



Q: What’s the quality standard of your products?

A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.



Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q: Can you produce a product in a color of my choosing?

A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.



Q: Do you provide an installation service?

A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.



Q: When can I receive your quotation?

A: Within 12 hours



Q: How can I pay you?

A: Many convenient methods for choose: Paypal, T/T, L/C.
