| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR202-CB |
| Minimum Order Quantity: | 1 piece |
| Price: | negotiable |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-5 working days after payment |
| Payment Terms: | L/C, T/T,paypal, Western Union |
| Supply Ability: | 3000 sets per month |
| Material: | Cold Rolled Steel Or Stainless Steel | Warranty: | 2 Years |
|---|---|---|---|
| Weather Protection: | IP55-IP65 | Handset: | ABS Material With Armored Cord |
| Size: | 247 *130 *132 (mm) | Weight: | 3.5 KG |
| Version: | Analogue/SIP/GSM | Powered: | Telephone Line Powered Or DC12V |
| Product Name: | Full Keypad Public Emergency Vandal Resistant Prison Telephone For Bank | ||
| High Light: | vandal proof telephone,vandal proof intercom |
||

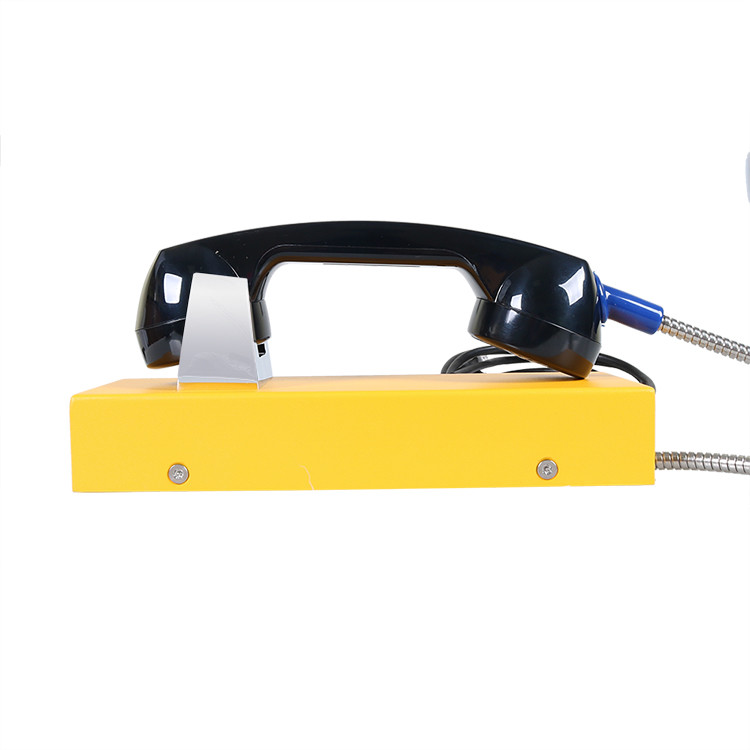

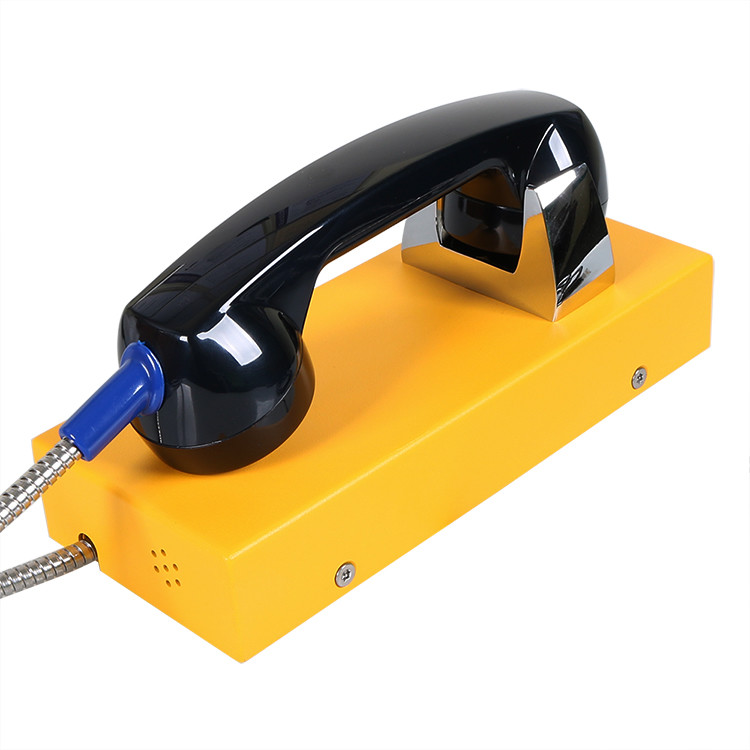

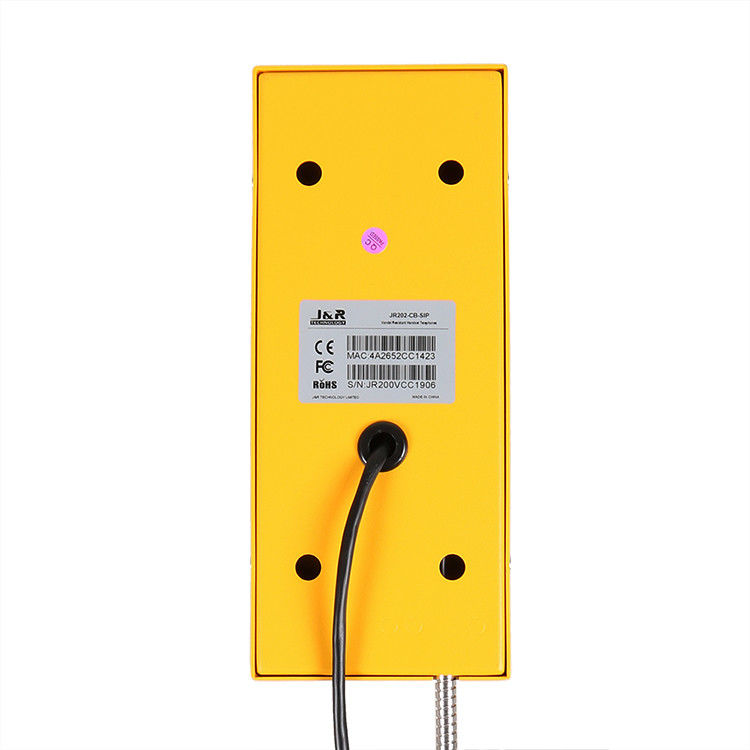

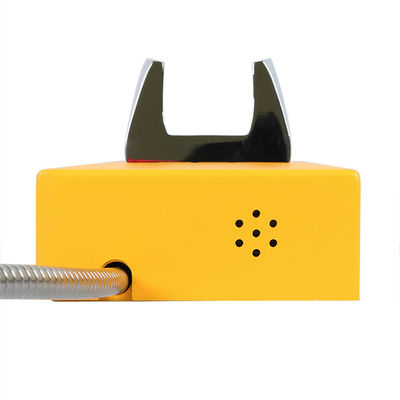

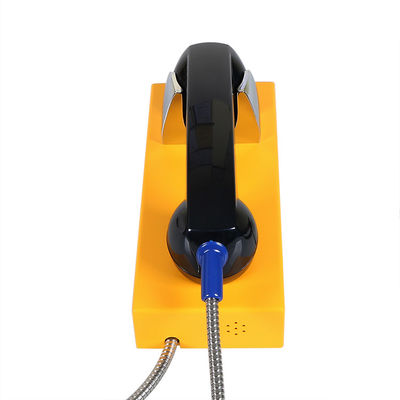

Product Description JR202-CB VoIP SIP Hot Line Panel Phone
JR202-CB Vandal Resistant VoIP SIP Hot Line Panel Phone housing is made of stainless steel, equipped with industrial ABS and PC material handset and built-in tensile steel rope, tensile force up to 200 KG.
Its high-quality materials, resulting in the telephone has excellent anti-vandal and waterproof characteristics.
Users can call to the rescue center for help by simply lifting the handset.
| Casing Material | Cold rolled steel body |
| Colors | RED, YELLOW, GREY |
| Handset Material | ABS material handset with stainless steel spiral cord |
| Keypad | No Keypad |
| Temperature |
Operating: -30°C to +65°C Storing: -40°C to +75°C |
| Weather Resistance | IP55-IP65 |
| Ringing Tone | Shrill warble tone 80 dBA at 1 metre typical |
| Hook Switch | Electronic / magnetic with no visible moving parts |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 4 kg depending on option |
Technical Specification
Vandal Resistant VoIP SIP Hot Line Panel Phone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +75°C |
Features
Vandal Resistant VoIP SIP Hot Line Panel Phone
SUPERIOR QUALITY
Weather protection IP65
Weatherproof and corrosion resistant handset
CE, FCC, IOS9001, ROSH compliant
HANDSET
Specially designed anti-damage hanset,
use imported PC and ABS composite,
stainless steel retractable hose,
internal design resist tensile force steel rope.
Resist tensile force 200KG
Applications
Vandal Resistant VoIP SIP Hot Line Panel Phone
Vandal Resistant VoIP SIP Hot Line Panel Phone is ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, outside building, etc.
▼J&R Airport Lobby project in Kuwait ▼J&R emergency telephone project in UK
▲J&R National Bank Project in Mexico
Packing & Delivery
Vandal Resistant VoIP SIP Hot Line Panel Phone
| Unit Size | 240 *100 *106 (mm) |
| Carton Size | 340 *235 *165 (mm) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 2.7 KG |
| Gross Weight | 3.5 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
Our Services
Vandal Resistant VoIP SIP Hot Line Panel Phone
✬ ODM & OEM products or solutions
✬ Sample order is greatly welcomed
✬ We will reply your inquiry within 12 hours
✬ Update the productive process and show the packing details
✬ After delivered the goods, we will track the products for you once every two days, until you get the products.
✬ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.
Our Company
Vandal Resistant VoIP SIP Hot Line Panel Phone
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn’t.
(All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Version,GSM/3G/4G Version)
After well study your information,we sincerely hope to enter into partnership with your esteemed company and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
FAQ
Vandal Resistant VoIP SIP Hot Line Panel Phone
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: What’s the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Within 12 hours
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
