| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JR201-FK |
| Minimum Order Quantity: | 1 Piece |
| Price: | US$99-US$189 |
| Packaging Details: | J&R standard packing ,pearl cotton, carton |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, T/T, Western Union，PayPal |
| Supply Ability: | 10000pcs per month |
| Color: | Red, Blue, Grey Or Customization | Material: | Robust Cold-rolled Steel Body |
|---|---|---|---|
| Version: | Analogue, SIP/VoIP, GSM/3G/4G | Installation: | Wall Mounting Or Pillar Mounting Or Desk Mounting |
| Powered: | POE Or DC12V Powered Or Telephone Line Powered | Warranty: | 2years |
| Ringing Volume: | 75-90db | Protection Type: | IP65-IP67 |
| SIP Protocol: | SIP2.0 | Application: | Bank, Jail, Prison, ATM, Tunnel, Hospital Etc |
| Highlight: | vandal proof telephone,vandal proof intercom |
||

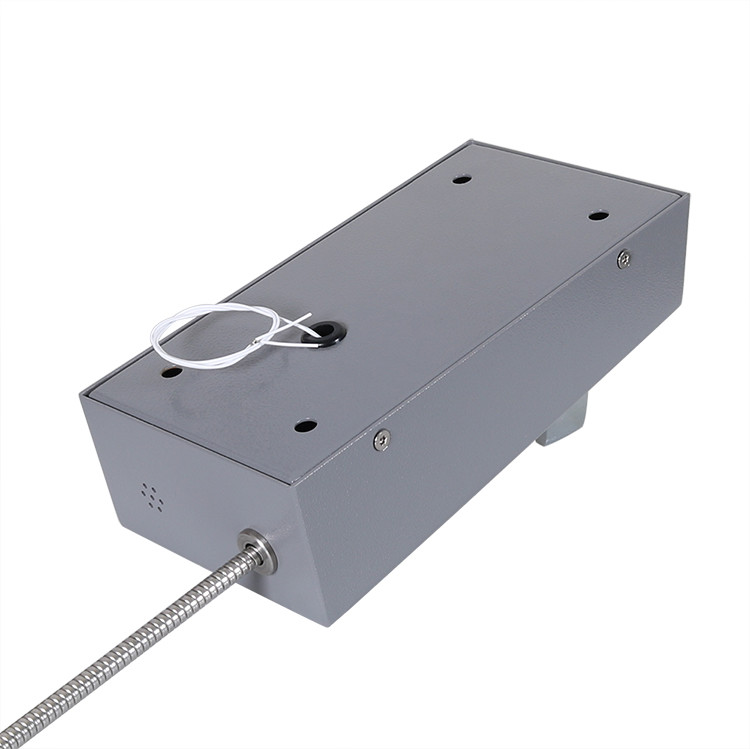

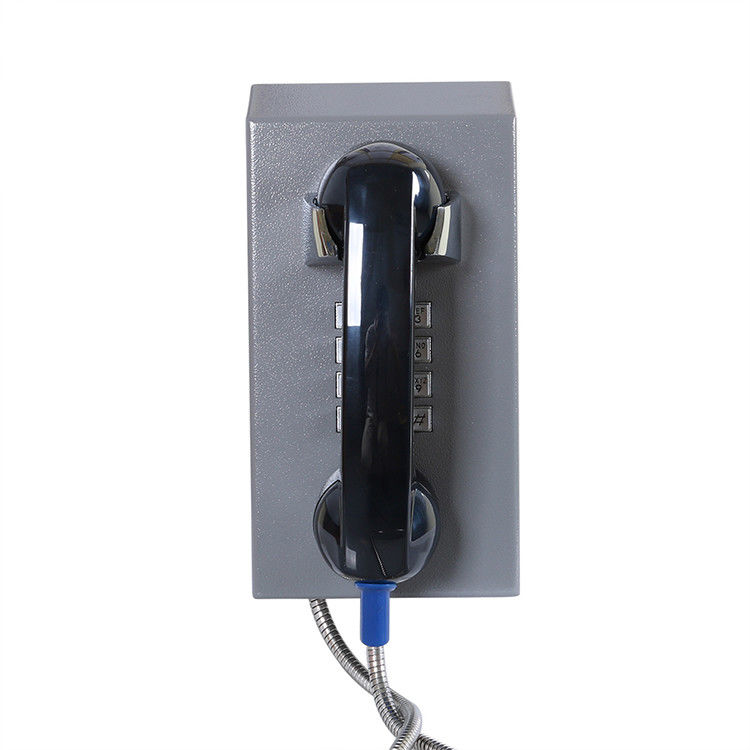

Product Description JR201-FK Heavy Duty Vandal Resistant Metal Telephones JR201-FK Heavy Duty Vandal Resistant Metal Telephone has the characteristics of simple installation, easy handle, stable operation and strong compatibility. The telephone adopts stainless steel panel with strong vandal proof feature. At the same time, the shell has a grounding device and is completely isolated from the internal electrical circuit, which has a certain electromagnetic shielding function. Moreover, the handset, keypad, circuit board and other accessories are made of multi-layer waterproof and dustproof materials. Operating: -30°C to +65°C Storing: -40°C to +75°C Technical Specification Heavy Duty Vandal Resistant Metal Telephones Features Heavy Duty Vandal Resistant Metal Telephones Applications Heavy Duty Vandal Resistant Metal Telephones Heavy Duty Vandal Resistant Metal Telephones supports the hotline call, may realize the call to hang up automatically, which is suitable for tunnel, railway, underground mine, prison, guard room, bank and many other areas. Packing & Delivery Heavy Duty Vandal Resistant Metal Telephones 130 *247 *136 (mm) Our Services Heavy Duty Vandal Resistant Metal Telephones ✬ ODM & OEM products or solutions ✬ Sample order is greatly welcomed ✬ We will reply your inquiry within 12 hours ✬ Update the productive process and show the packing details ✬ After delivered the goods, we will track the products for you once every two days, until you get the products. ✬ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time. Our Company Heavy Duty Vandal Resistant Metal Telephones J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn’t. (All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Version,GSM/3G/4G Version) FAQ Heavy Duty Vandal Resistant Metal Telephones Q: Do you have any MOQ limit? A: Low MOQ, 1pc is available Q: Can I have a sample order ? Q: What about the lead time? Q: What’s the quality standard of your products? A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory. Q: Is it OK to print my logo on the products? Q: Can you produce a product in a color of my choosing? A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable. Q: Do you provide an installation service? A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure. Q: When can I receive your quotation? A: Within 12 hours Q: How can I pay you? A: Many convenient methods for choose: Paypal, T/T, L/C.
Casing Material
Robust Cold-rolled steel body(CRS)
Handset Material
ABS material handset with stainless steel spiral cord
Protection Type
IP65
Hookswitch
Electronic / magnetic with no visible moving parts
Temperature
Ringing Tone
Shrill warble tone 85 dBA at 1 metre typical
M.T.B.F.
excess of 50,000 hours using
Weight
Up to 4 kg depending on option
Warranty
2 Years
Analogue Version
Power Supply
From the analogue telephone network
Supply Voltage
24 VDC to 65 VDC
Supply Current
20 mA DC to 100 mA DC
Ringer Volume
- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method
DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply
PoE or 12V DC
Power Consumption
-Idle:1.5W
-Active:1.8W
SIP Protocol
SIP 2.0 (RFC3261)
Support Codec
G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type
Full duplex
Ringer Volume
- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Ambient conditions
Protection Type
IP 66 as per EN60529
Operating Temperature
-30°C to +65°C
Storage Temperature
-40°C to +75°C
★ Standard Analogue phone/SIP phone
★ Vandal resistant handset and cord
★ Robust housing, constructed of robust cold-rolled steel(CRS)
★ Full rugged & durable keypad
★ Weather proof protection IP54 (can be upgraded to IP 55)
★ Wall mounting, Simple installation
★ External power supply or PoE (SIP-VoIP)
★ Inductive coupler fitted as standard for hard of hearing
★ CE,FCC,ROSH compliant
Unit Size
Carton Size
340 *240 *160 (mm)
Packaging Materials
Pearl cotton, carton
Net Weight
3.5 KG
Gross Weight
4 KG
Port
Shenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)Quantity(Sets)
1
2-500
>500
Est. Time(Days)
2
25
To be negotiated
After well study your information,we sincerely hope to enter into partnership with your esteemed company and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
