75-90db Industrial Weatherproof Telephone VoIP

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, IP67, ISO9001:2015
Model Number: JR101-FK
Minimum Order Quantity: 1 Piece
Price: US$229 - US$399
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detail Information
Color: Yellow, Blue, Red Or Customization Material: Die-casting Aluminum Alloy
Version: Analogue, SIP/VoIP, GSM/3G/4G Installation: Wall Mounting Or Pillar Mounting Or Column Mounting
Powered: POE Or DC12V Powered Or Telephone Line Powered Warranty: 2years
Ringing Volume: 75-90db Protection Type: IP65-IP67
SIP Protocol: SIP2.0 Application: Metro, Railway, Highway Side,Tunnel,Roadside Etc
High Light:

weatherproof telephone box

,

outdoor weatherproof telephones


Product Description



Features



JR101-FK VoIP Weatherproof Telephone Manufacturer



75-90db Industrial Weatherproof Telephone VoIP 0





 Standard Analogue phone/SIP phone

 Vandal resistant handset and cord

★ Weather proof protection to IP67

★ Full keypad with memory, 0-9 buttons can be programmed as speed dial button

 “LR” button for last number redial

 “R” for flash recall

 “M” for muting

★ Wall mounting, Simple installation

★ Inductive coupler fitted as standard for hard of hearing

★ Phone line powered(Analogue)

★ External power supply or PoE (SIP-VoIP)

★ RJ45 port for SIP phone

★ CE,FCC,ROSH compliant



Product Description









VoIP Weatherproof Telephone Manufacturer

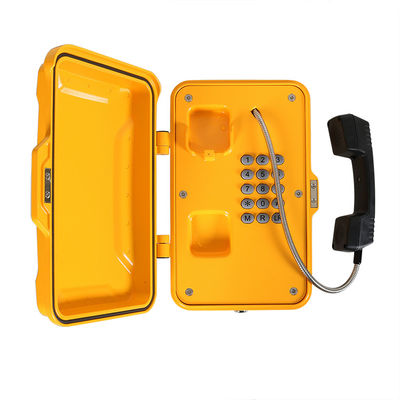

JR101-FK IP67 VoIP Weatherproof Telephone is suitable for harsh environmental fields such as mines, tunnels and oil deposit due to J&R Technology’s telephone is made of top-ranking materials.

JR101-FK IP67 VoIP Weatherproof Telephone is equipped with corrosion resistant cast aluminum weatherproof case and robust handset with stainless steel spiral cord, which can completely prevent dust from entering.

When subjected to severe wave impact or strong water spray, the usage of the telephone will not be affected.



  Casing Material Die cast aluminium, epoxy powder coated
  Colors Yellow, other colors to special order
  Handset Material Cycoloy with stainless steel spiral cord
  Keypad Rubber Keypad
  Temperature Operating: -30°C to +65°C
Storing: -40°C to +75°C
  Weather Resistance IP67
  Ringing Tone Shrill warble tone 80 dB A at 1 metre typical
  Hook switch Electronic / magnetic with no visible moving parts
  M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
Relative humidity:Up to 95% (non-condensing)
  Weight Up to 6 kg depending on option













Technical Specification



VoIP Weatherproof Telephone Manufacturer



75-90db Industrial Weatherproof Telephone VoIP 1



Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer Volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection Type IP 66 as per EN60529
Operating Temperature -30°C to +65°C
Storage Temperature -40°C to +75°C





















Applications



VoIP Weatherproof Telephone Manufacturer



VoIP Weatherproof Telephone are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.



75-90db Industrial Weatherproof Telephone VoIP 3
75-90db Industrial Weatherproof Telephone VoIP 4
75-90db Industrial Weatherproof Telephone VoIP 5
75-90db Industrial Weatherproof Telephone VoIP 6













Packing & Delivery



VoIP Weatherproof Telephone Manufacturer



75-90db Industrial Weatherproof Telephone VoIP 7



 Unit Size 204 *334 *162(mm)
 Carton Size 200 *300 *440 (mm)
 Packaging Materials Pearl cotton, carton
 Net Weight 7 KG
 Gross Weight 8 KG



75-90db Industrial Weatherproof Telephone VoIP 8



Port Shenzhen, Guangdong
Lead Time
(If you finish the payment today, your order will ship out within the delivery date.)
Quantity(Sets) 1 2-500 >500
Est. Time(Days) 2 25 To be negotiated











Our Services



VoIP Weatherproof Telephone Manufacturer



75-90db Industrial Weatherproof Telephone VoIP 9



 ODM & OEM products or solutions



 Sample order is greatly welcomed



 We will reply your inquiry within 12 hours



 Update the productive process and show the packing details



 After delivered the goods, we will track the products for you once every two days, until you get the products.



 When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.













Our Company



VoIP Weatherproof Telephone Manufacturer



75-90db Industrial Weatherproof Telephone VoIP 10



J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn’t.

(All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Version,GSM/3G/4G Version)
After well study your information,we sincerely hope to enter into partnership with your esteemed company and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.











FAQ



VoIP Weatherproof Telephone Manufacturer



  QDo you have any MOQ limit?

  A: Low MOQ, 1pc is available



  QCan I have a sample order ?
  A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.



  QWhat about the lead time?
  A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.



  Q: What’s the quality standard of your products?

  A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.



  QIs it OK to print my logo on the products?
  A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



  Q: Can you produce a product in a color of my choosing?

  A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.



  Q: Do you provide an installation service?

  A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.



  Q: When can I receive your quotation?

  A: Within 12 hours



  Q: How can I pay you?

  A: Many convenient methods for choose: Paypal, T/T, L/C.
