| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ATEX |
| Model Number: | JREX106-VoIP |
| Minimum Order Quantity: | 1 Piece |
| Price: | negotiable |
| Packaging Details: | J&R standard packing ,pearl cotton, carton |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, T/T, Western Union，PayPal |
| Supply Ability: | 10000pcs per month |
| Product Name: | Explosion-Proof Weatherproof Outdoor Industrial Telephone | Color: | Yellow Or Customized |
|---|---|---|---|
| Version: | Analogue, SIP, VoIP | Installation: | Wall Mounting Or Desk Mounting |
| Warranty: | 2 Years | Net Weight: | 6.5KG |
| Gross Weight: | 7.5KG | Unit Size: | 246 *339 *126 (mm) |
| Packaging Materials: | Pearl Cotton, Carton | Function: | Explosion Proof,free Dial,IP67 |
| Application: | Refineries, Sewage Plants, Hydroelectric Facilities, Chemical Plants,Food Processing Plants, Mine, Tunnel, Etc | ||
| High Light: | hazardous area telephone,explosion proof ip phone |
||
Product Description

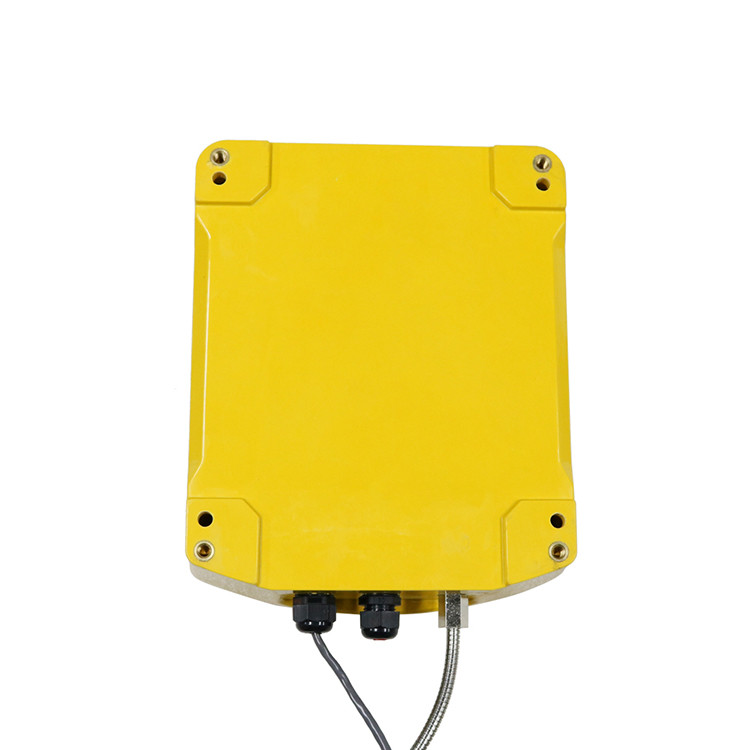

JREX106-VoIP Explosion-Proof Weatherproof Outdoor Industrial Telephone
The JREX106-SIP are designed to provide safe,reliable communication in hazardous areas.
The housing is made of impact and shock-resistant GRP and even resistant to acids, alkali and lubricants.
It is designed to provide ultimate user comfort on the basis of industrial standards and decades of market leading expertise and know-how.
| Casing Material | High Impact Glass fibre-reinforced polyester |
| Colors | yellow, other colors to special order |
| Handset Material | High Impact Thermoset Resin Compound |
| Keypad | No keypad |
| Temperature | Operating: -45°C to +70°C Storing: -45°C to +75°C |
| Weather Resistance | IP66 |
| Ringing Tone | Shrill warble tone 95 dBA at 1 metre typical |
| Explosion Protection | II 2G Ex e ib [ib] mb IIC T4 Gb II 2D Ex ib [ib] tb IIIC T135 °Db -40 °C ≤ Ta ≤ +60 °C/+40°C Zone 1, 2, 22 |
| Relative humidit | Up to 95%(non-condensing) |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Hook Switch Life | >1 000 000 Operations |
Technical Specification
Explosion-Proof Weatherproof Outdoor Industrial Telephone
| Analogue Version | |
| Power Supply | Line powered i.e. drawn from telephone line. It doesn’t require any external AC Supply. |
| Supply Voltage | 24 VDC to 66 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | Max. approx.90dB(A) in 1 m distance |
| Lightning / Transients | Protection to ITU-T k .21 enhanced levels |
| SIP Version | |
| Power Supply | Power over Ethernet according to IEEE 802.3af over spare cable pair or external supply, 12V DC |
| Power Consumption(PoE) | 2.5 W |
| SIP Protocol | SIP ( RFC 3261 Compliant ) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer Volume | 95dB(A)in 1m distance |
| Ambient conditions | |
| Protection Type | IP 66 as per EN60529 |
| Operating Temperature | -40˚ to +70˚C (-22˚F to 140˚F) |
| Storage Temperature | -45℃ to +70℃ (-22°F to 158°F) |
| Housing SMC/BMC |
-80℃ to +180°C (-112°F to 380°F) |
Features
Explosion-Proof Weatherproof Outdoor Industrial Telephone
★ Noise canceling microphone
★ Magnetic reed hook switch to reduce parts subject to wear
★ Hearing-aid compatible (HAC) receiver
★ High impact thermoset resin industrial housing and ergonomic heavy duty
★ Corrosion resistant hardware
★ Direct dial to an assigned location
Packing & Delivery
Explosion-Proof Weatherproof Outdoor Industrial Telephone
| Unit Size | 204*334*126 mm (H*W*D) |
| Carton Size | 200*300*440 mm (H*W*D) |
| Packaging Materials | Pearl cotton, carton |
| Net Weight | 6.5 KG |
| Gross Weight | 7.5 KG |
| Port | Shenzhen, Guangdong | |||
| Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1 | 2-500 | >500 |
| Est. Time(Days) | 2 | 25 | To be negotiated | |
Our Services
Explosion-Proof Weatherproof Outdoor Industrial Telephone
✬ ODM & OEM products or solutions
✬ Sample order is greatly welcomed
✬ We will reply your inquiry within 12 hours
✬ Update the productive process and show the packing details
✬ After delivered the goods, we will track the products for you once every two days, until you get the products.
✬ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.
Our Company
Explosion-Proof Weatherproof Outdoor Industrial Telephone
J&R is China based design and manufacturer of rugged communications equipment.
Our telephones and systems work, and last, in environments where regular products wouldn’t.
(All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Version,GSM/3G/4G Version)
After well study your information,we sincerely hope to enter into partnership with your esteemed company
and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
FAQ
Explosion-Proof Weatherproof Outdoor Industrial Telephone
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: What’s the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Within 12 hours
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
