| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR201-FK-VC |
| Minimum Order Quantity: | 1 set |
| Price: | US$99-US$289 |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Stainless Steel | Warranty: | 2 Years |
|---|---|---|---|
| Weather Protection: | IP55-IP65 | Volume Control Button: | Yes |
| Metal Keypad: | Yes | Net Weight: | 3 KG |
| Version: | Analog, SIP, GSM/3G | Size: | 247 *130 *132 (mm) |
| High Light: | vandal proof telephone,vandal proof intercom |
||
↶ Product Description ↷

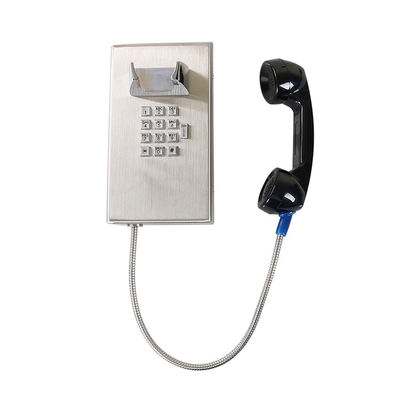

JR201-FK Vandal Resistant Handset Telephone with Full Keypad
The Handset Telephone is designed to meet the needs of client who experience loss through vandalism.
Housed in stainless steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.
|
Casing Material |
Robust Cold-rolled steel body(CRS) |
|
Handset Material |
ABS material handset with stainless steel spiral cord |
|
Protection Type |
IP65 |
| Hookswitch | Electronic / magnetic with no visible moving parts |
| Temperature |
Operating: -30°C to +65°C Storing: -40°C to +75°C |
| Ringing Tone | Shrill warble tone 85 dBA at 1 metre typical |
| M.T.B.F. | excess of 50,000 hours using |
| Weight | Up to 4 kg depending on option |
| Warranty |
2 Years |
↶ Technical Specification ↷
Vandal Resistant Handset Telephone with Full Keypad
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 55 - IP 65 as per EN60529 |
| Operating temperature | -25°C to +70°C |
| Storage temperature | -25°C to +85°C |
↶ Features ↷
Vandal Resistant Handset Telephone with Full Keypad
⊛ Full Rugged & durable keypad
⊛ Vandal resistant handset and armored cord
⊛ Robust housing, constructed of cold rolled steel
⊛ Can be programmed remotely by tone phone or locally via keypad
⊛ Impact, shock, fall and vibration proof,able to perform in difficult environments
↶ Packing & Delivery ↷
Vandal Resistant Handset Telephone with Full Keypad
| Unit size | 130*247*136 (mm) |
| Carton size | 340 *240 *160 (mm) |
| Packaging materials | pearl cotton, carton |
| Net weight | 3.5 KG |
| Gross weight |
4 KG |
| Port | Shenzhen, Guangdong, China | ||||
|
Lead Time (If you finish the payment today, your order will ship out within the delivery date.) |
Quantity(Sets) | 1-10 | 11-50 | 51-200 | >200 |
| Est.Time(Days) | 2 | 10 | 20 |
To be negotiated |
|
↶ Our Servives ↷
Vandal Resistant Handset Telephone with Full Keypad
◉ ODM & OEM products or solutions
◉ Sample order is greatly welcomed
◉ We will reply your inquiry within 12 hours
◉ Update the productive process and show the packing details
◉ After delivered the goods, we will track the products for you once every two days, until you get the products.
◉ When you got the products, if there is any further questions, welcome to contact us and we will solve the problems for you in time.
↶ Our Company ↷
Vandal Resistant Handset Telephone with Full Keypad
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn’t.
(All Of Our Phone Model Avaliable For Analogue Version,IP/SIP Versio,GSM/3G/4G Version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
↶ FAQ ↷
Vandal Resistant Handset Telephone with Full Keypad
Q: Do you have any MOQ limit?
A: Low MOQ, 1pc is available
Q: Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What about the lead time?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.And mass production time needs 2-4 weeks for order quantity more than 100 units.
Q: What’s the quality standard of your products?
A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality,every phone be thoroughly tested before leaving the factory.
Q: Is it OK to print my logo on the products?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q: Can you produce a product in a color of my choosing?
A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.
Q: Do you provide an installation service?
A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.
Q: When can I receive your quotation?
A: Within 12 hours
Q: How can I pay you?
A: Many convenient methods for choose: Paypal, T/T, L/C.
