Industrial Heavy Duty IP Telephone Aluminum Alloy For Industry / Highway

Product Details

Place of Origin: Shenzhen, China

Brand Name: J&R

Certification: CE, FCC, RoHS, IP67, ISO9001:2015

Model Number: JR104-SC

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: US$199~US$289

Packaging Details: pearl cotton, carton

Delivery Time: 3-7 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 3000 sets per month

Get Best Price
Product Details
High Light:

weatherproof telephone box

,

outdoor weatherproof telephones

Material:
Aluminum Alloy
Weather Resistant:
IP67
Color:
Yellow, Blue, Red, Orange (or Optional)
Version:
Analogue, SIP/VoIP, GSM/3G
Installation:
Wall/ Pillar Mounting
Warranty:
2 Years
Net Weight:
7 KG
Hearing-Aid:
YES
Vandal Resistant:
Yes
Material:
Aluminum Alloy
Weather Resistant:
IP67
Color:
Yellow, Blue, Red, Orange (or Optional)
Version:
Analogue, SIP/VoIP, GSM/3G
Installation:
Wall/ Pillar Mounting
Warranty:
2 Years
Net Weight:
7 KG
Hearing-Aid:
YES
Vandal Resistant:
Yes
Product Description

 Product Description

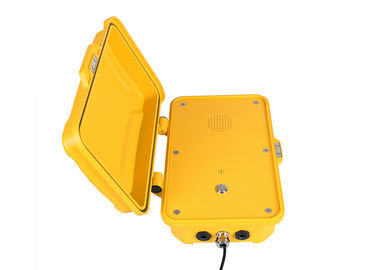

JR104-SC Industrial Heavy Duty IP Telephone Aluminum Alloy



This telephone is fully contained within a corrosion resistant cast aluminium weatherproof case and cold rolled steel faceplate with epoxy powder coated providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.



  Casing Material Die cast aluminium body, cold rolled steel paceplate epoxy powder coated
  Colors yellow, other colors to special order
  Handset Material No handset
  Keypad No Keypad
  Temperature Operating: -30°C to +65°C Storing: -40°C to +75°C
  Weather Resistance IP66-IP67
  Ringing Tone Shrill warble tone 90 dBA @ 1 metre typical
  Hook switch No hook switch
  Push button Vandal resistant stainless steel button
  M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
  Weight Up to 6 kg depending on option
  Power Input 12-24V DC





Technical Specification

Industrial Heavy Duty IP Telephone Aluminum Alloy For Industry / Highway



  Ambient conditions
  Protection type IP 66 as per EN60529
  Operating temperature -40°C to +70°C
  Storage temperature -45°C to +85°C



  Analogue Version
  Power Supply From the analogue telephone network
  Supply Voltage 24 VDC to 65 VDC
  Supply Current 20 mA DC to 100 mA DC
  Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



  SIP Version
  Power Supply PoE or 12V DC
  Power Consumption -Idle:1.5W
-Active:1.8W
  SIP Protocol SIP 2.0 (RFC3261)
  Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
  Communication Type Full duplex
  Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)





Industrial Heavy Duty IP Telephone Aluminum Alloy For Industry / Highway 0





 Industrial Heavy Duty IP Telephone Aluminum Alloy For Industry / Highway 1







Features

Industrial Heavy Duty IP Telephone Aluminum Alloy For Industry / Highway



Industrial Heavy Duty IP Telephone Aluminum Alloy For Industry / Highway 2



            ∻  Standard VoIP/SIP phone
              Aluminum alloy die-casting body
              Vandal resistant metal button
              Hands free operation

               Weatherproof protection to IP67
               Wall mounting, simple installation





Packing & Delivery

Industrial Heavy Duty IP Telephone Aluminum Alloy For Industry / Highway



Industrial Heavy Duty IP Telephone Aluminum Alloy For Industry / Highway 3



  Unit size 334*204*74(mm)
  Carton size 200*300*440(mm)
  Packaging materials pearl cotton, carton
  Net weight 6KG
  Gross weight 7KG



Industrial Heavy Duty IP Telephone Aluminum Alloy For Industry / Highway 4

Port Shenzhen, Guangdong, China

Lead Time

(If you finish the payment today, your order will ship out within the delivery date.)

Quantity (Pieces) 1-10 11-50 50-200 >200
Est. Time (days) 2 10 20 To be negotiate
