Die Cast Aluminium Hotline Explosion Proof Telephone Heavy Duty For Hazardous Area

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: ATEX CE FCC HoHS ISO9001
Model Number: JREX101-CB
Minimum Order Quantity: 1 unit
Price: US$399~US$699
Packaging Details: Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 7KG Gross weight:8KG
Delivery Time: 3-5 working days
Payment Terms: L/C, , D/P, T/T, Western Union,Paypal
Supply Ability: 3000 sets per month
Detail Information
Color: Orange Or Customized Feature1: Explosion Proof
Warranty: 2 Years Feature2: Hotline
Material: Die Cast Aluminium, Epoxy Powder Coated SIZE: 246*339*126(mm)
Net Weight: 7kg Usage: Heavy Duty Factory
Ingress Protection Rating: IP67 Function: SOS
High Light:

hazardous area telephone

,

explosion proof ip phone


Product Description

Product Detail

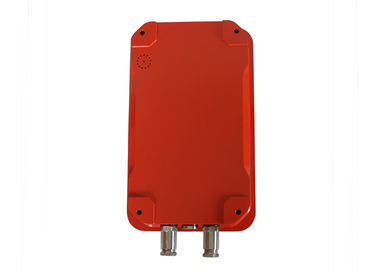

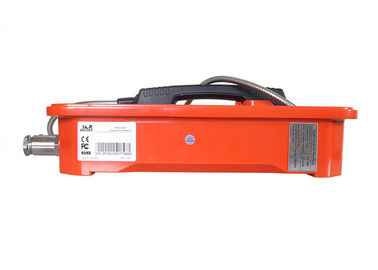

JREX101-HB Die Cast Aluminium Hotline Explosion-Proof Heavy Duty Industrial Telephone



As a Explosion-proof proof telephone, it is fully contained within a corrosion resistant cast aluminium explosion-proof proof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.



Operating Temperature -40°C to +65°C
Storing Temperature -40°C to +75°C
Ringing Tone Shrill warble tone 90 dBA at 1 metre typical
M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
Dialing MF (tone)
Lightning / Transients Protection to ITU-T k.21 enhanced levels









Technical Specification

Die Cast Aluminium Hotline Explosion-Proof Heavy Duty Industrial Telephone for Hazardous Area

Die Cast Aluminium Hotline Explosion Proof Telephone Heavy Duty For Hazardous Area 0

  SIP Version
  Power Supply PoE or 12V DC
  Power Consumption -Idle:1.5W
-Active:1.8W
  SIP Protocol SIP 2.0 (RFC3261)
  Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
  Communication Type Full duplex
  Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



  Analogue Version
  Power Supply From the analogue telephone network
  Supply Voltage 24 VDC to 65 VDC
  Supply Current 20 mA DC to 100 mA DC
  Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



Die Cast Aluminium Hotline Explosion Proof Telephone Heavy Duty For Hazardous Area 1





Explosion Protection

Die Cast Aluminium Hotline Explosion-Proof Heavy Duty Industrial Telephone for Hazardous Area

Die Cast Aluminium Hotline Explosion Proof Telephone Heavy Duty For Hazardous Area 2

                  II 2G Rx e ib [ib] mb IIC T6 Gb

                  III 2D Ex ib [ib] tb IIIC T135 °

                  Certificated for use in Hazardous areas of Gas Group IIB/IIA

                  Zone classification: Zone 1, Zone 2 and Zone 22

                  Ex ’d’ protected

               ☄ Intrinsically safe Ex”ib” certified

                 ☄ Temperature classification:T4









Features

Die Cast Aluminium Hotline Explosion-Proof Heavy Duty Industrial Telephone for Hazardous Area

explosionproof telephone.jpg





       Standard Analogue phone

       Aluminum alloy die-casting body

       Vandal resistant handset and armored cord

       Weather proof protection to IP67

       Wall mounting, Simple installation

       Inductive coupler fitted as standard for hard of hearing

      ✼ Phone line powered (Analogue)









Packing & Delivery

Die Cast Aluminium Hotline Explosion-Proof Heavy Duty Industrial Telephone for Hazardous Area



Die Cast Aluminium Hotline Explosion Proof Telephone Heavy Duty For Hazardous Area 4



  Unit size 246 *339 *126 (mm)
  Carton size 200*300*440 (mm)
  Packaging materials pearl cotton, carton
  Gross weight 8 KG
  Net weight 7 KG



Die Cast Aluminium Hotline Explosion Proof Telephone Heavy Duty For Hazardous Area 5

Port Shenzhen, Guangdong

Lead Time

(If you finish the payment today, your order will ship out within the delivery date.)

Quantity(Pieces) 1-10 11-50 51-200 >200
Est. Time(days) 2 10 20 To be negotiated









Our Company

Die Cast Aluminium Hotline Explosion-Proof Heavy Duty Industrial Telephone for Hazardous Area



J&R is one of the most professional manufacturers of emergency telephones, industrial telephones and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories. Our main products include waterproof phones, inmate phones, emergency phones, elevator phones and telephone kits as well.



Die Cast Aluminium Hotline Explosion Proof Telephone Heavy Duty For Hazardous Area 6




FAQ

Die Cast Aluminium Hotline Explosion-Proof Heavy Duty Industrial Telephone for Hazardous Area



    Q: Do You Have Any MOQ Limit?
    A: Low MOQ, 1pc Is Available

    Q: Can I Have A Sample Order ?
    A: Yes, We Welcome Sample Order To Test And Check Quality.Mixed Samples Are Acceptable.

    Q: What About The Lead Time?
    A: Normally Within 2-5 Working Days. We Have Materials In Stock For Most Of Hot Selling Products.And Mass Production Time Needs 2-4 Weeks For Order Quantity More Than 100 Units.

    Q: What's the quality standard of your products?
    A: CE, FCC, RoHS, ISO9001:2015 certification approved. All materials are in high grade and new. With the strict quality, every phone be thoroughly tested before leaving the factory.

    Q: Is it OK to print my logo on the products?
    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

    Q: Can you produce a product in a color of my choosing?
    A: Yes, we can manufacture products in different colors, however there may be minimum quantities or surcharges applicable.

    Q: Do you provide an installation service?
    A: No, we do not install products, but they are very straightforward to install, please kindly contact us if unsure.

    Q: When can I receive your quotation?
    A: Once learn your detail requirements.

    Q: How can I pay you?
    A: Many convenient methods for choose: Paypal, T/T, L/C.
