Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy

Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy
Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy

Large Image :  Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR103-CB

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: US$179~US$350
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detailed Product Description
Color: Yellow Or Customized Material: Die-casting Aluminum Alloy
Version: Analogue, SIP, GSM, 3G Installation: Wall Mounting
Warranty: 2 Years Weight: 5 KG
Size: 204 *334 *74(mm) Function: SOS
Power Input: 12-24V DC Weather Resistance: IP66-IP67
Packaging Materials: Pearl Cotton, Carton Door: Optional
Feature: Hotline Product Name: Outdoor Hotline Speed Dial Emergency Weatherproof Telephone For Tunnel
High Light:

weatherproof telephone box

,

outdoor weatherproof telephones



Product Description

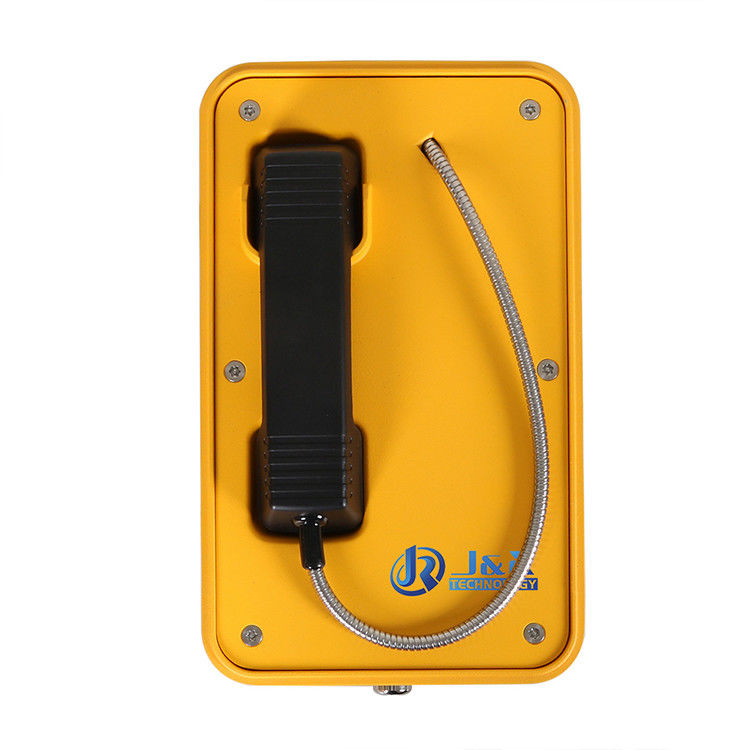

IP67 VOIP Waterproof Weather Resistant Hotline Telephone for Roadside, Tunnel, Hazardous Area

₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪

The industrial telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
JR103-CB is designed for voice communication in the hostile envirronment where reliability, efficiency and safety are of prime importance.





 Relative humidity high 93% R.H at 40°C (non condensing)
 Casing Material Heavy Duty aluminium (salt & corrosion resistant)
 Excellent Sound Quality STI approved to 0.9 (Excellent Sound)
 Quality of Service (QoS) ensuring optimal delivery of voice
 Type of Service (ToS) high throughput and reliability (RFC3168)
 Remote Management Available with remote management software,to simplify installation and cut maintenance costs



Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy 0





Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy 1

  Analogue Version
  Power Supply From the analogue telephone network
  Supply Voltage 24 VDC to 65 VDC
  Supply Current 20 mA DC to 100 mA DC
  Ringer Volume
- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
  SIP Version
  Power Supply PoE or 12V DC
  Power Consumption

-Idle:1.5W

-Active:1.8W
  SIP Protocol SIP 2.0 (RFC3261)
  Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
  Communication Type Full duplex
  Ringer volume

- 90~95dB(A) at a distance of 1 m

- 110dB(A) at a distance of 1 m (for external horn speaker)
  3G Version
  Power Supply 12V DC
  Power Consumption

-Idle:0.3W

-Active: 1.5W
  Communication Type Full duplex
  Ringer volume 90~95dB(A) at a distance of 1 m
  Program Method Remote programming by SMS




  Frequency
A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
  Ambient conditions
  Protection type IP 66 as per EN60529
  Operating temperature -25°C to +70°C
  Storage temperature -25°C to +85°C







Features

IP67 VOIP Waterproof Weather Resistant Hotline Telephone for Roadside, Tunnel, Hazardous Area

₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪
 Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy 2


             Standard Analogue phone/ SIP phone


             Vandal resistant handset and cord


             Weather proof protection to IP66


             Wall mounting, Easy for installation


             Inductive coupler fitted as standard for hard of hearing







Packing & Delivery

IP67 VOIP Waterproof Weather Resistant Hotline Telephone for Roadside, Tunnel, Hazardous Area

₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪



Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy 3

  Unit size 334*204*109 (mm)
  Carton size  200*300*440 (mm)
  Packaging materials pearl cotton, carton
  Net weight  5 KG
  Gross weight  6 KG



Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy 4



  Port Shenzhen

  Lead Time

(If you finish the payment today, your order will ship out within the delivery date.)

Quantity(Pieces) 1-10 11-50 51-200 >200
Est. Time(days) 1 10 20 To be negotiated








Application

IP67 VOIP Waterproof Weather Resistant Hotline Telephone for Roadside, Tunnel, Hazardous Area

₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪



The phone is suitable for use in harsh environment characterized by:
indoor & outdoor, Presence of dust & water ingress.for Tunnels, Mining, Marine, Construction sites, Blast furnace areas, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants, oil&Gas station, and related heavy duty industrial rough environment conditions, etc.

Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy 5
Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy 6




Our Company

IP67 VOIP Waterproof Weather Resistant Hotline Telephone for Roadside, Tunnel, Hazardous Area

₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪

J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories. Our main products include weatherproof phones, Explosion proof telephone, prison phones, emergency phones, elevator phones , acoustic phone booths and telephone kits as well.
As a reliable supplier of different kinds of industrial telephones, we have been sharing the equipments and systems with different customers and users all over the world. The professional service and excellent quality made us enjoy the reputation over more than 80 countries, including USA, China, Thailand, Malaysia, Turkey, Israel, Greece, Spain, France, UK, Denmark, South Africa, Australia, Mexico, Colombia, Chile etc.
Dedication and profession have been our pursuing goal during any procedures of our production, not only in developing and quality controlling, but also in marketing and after sales. We serve any single potential customer with special individual solutions and systems.

Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy 7Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy 8Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy 9Hotline Industrial Weatherproof Telephone IP67 VOIP Die Casting Aluminum Alloy 10





FAQ

IP67 VOIP Waterproof Weather Resistant Hotline Telephone for Roadside, Tunnel, Hazardous Area

₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪ ₪



Q: Do you have any MOQ limit for this Hotline Emergency Telephone,Hotline telephone system,railway emergency hotline telephone?
A: Low MOQ, 1pc is available



Q: What about the lead time for this Hotline Emergency Telephone,Hotline telephone system,railway emergency hotline telephone?
A: Normally within 2-5 working days. We have materials in stock for most of hot selling products.

And mass production time needs 2-4 weeks for order quantity more than 100 units.



Q:Will you do OEM or Customzied work for this Hotline Emergency Telephone,Hotline telephone system,railway emergency hotline telephone?
A: Yes. Any OEM/ODM/Customzied work are welcomed!!! Pls send your email to us about it.



Q: How is your after sell service?

A: 2 years warranty time, 7*24 hours online professional technical support!!!

If you have more questions, Pls kindly contact with us, Thank you.
