Highway Emergency Telephone For Roadside Highway

China Highway Emergency Telephone For Roadside Highway supplier
Highway Emergency Telephone For Roadside Highway supplier Highway Emergency Telephone For Roadside Highway supplier Highway Emergency Telephone For Roadside Highway supplier Highway Emergency Telephone For Roadside Highway supplier Highway Emergency Telephone For Roadside Highway supplier

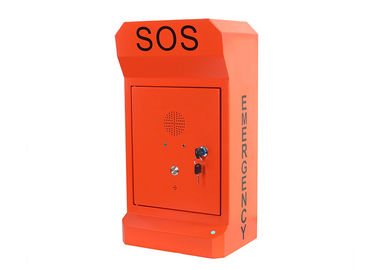

Large Image :  Highway Emergency Telephone For Roadside Highway

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR330-SC-C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: US$139~US$299
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 sets per month
Contact Now
Detailed Product Description
Material: Cold Rolled Steel Color: Yellow , Red
Warranty: 2 Years Weather Protection: IP65
Button: 1 Button Handsfree: Yes
Vandal Resistant: Yes Unit Size: 1500 *280*200 (mm)

Product Description

Highway Emergency Telephone For Roadside Highway

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

This Emergency GSM & GSMR telephone is designed for outdoor use, based on a cold rolled steel with powder coated body, and stainless faceplate, offers increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

GSM connection offers wireless communications to provide a completely standalone telephone installation. The GSM phone greatly reduces installations costs by eliminating running wires.



  Relative humidity high 93% R.H at 40°C (non condensing)
  Casing Material Heavy Duty aluminium (salt & corrosion resistant)
  Illuminated LCD Display for status notifications and instructions
  Flashing Light ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
  Excellent Sound Quality STI approved to 0.9 (Excellent Sound)
  Remote Management Available with remote management software,to simplify installation and cut maintenance costs.







 Technical Specification

GSM/3G/4G Hands-free Waterproof SOS Emergency Telephone for Roadside, Highway

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Highway Emergency Telephone For Roadside Highway

  Analogue Version
  Power Supply From the analogue telephone network
  Supply Voltage 24 VDC to 65 VDC
  Supply Current 20 mA DC to 100 mA DC
  Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
  Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
  SIP Version
  Power Supply PoE or 12V DC
  Power Consumption -Idle:1.5W
-Active:1.8W
  SIP Protocol SIP 2.0 (RFC3261)
  Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
  Communication Type Full duplex
  Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
  3G Version
  Power Supply 12V DC
  Power Consumption

-Idle:0.3W

-Active: 1.5W
  Communication Type Full duplex
  Ringer volume 90~95dB(A) at a distance of 1 m
  Program Method Remote programming by SMS
  Frequency A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
  Ambient conditions
  Protection type IP 66 as per EN60529
  Operating temperature -25°C to +70°C
  Storage temperature -25°C to +85°C



Highway Emergency Telephone For Roadside Highway



Features

Highway Emergency Telephone For Roadside Highway

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Highway Emergency Telephone For Roadside Highway

           ☛ Standard GSM,3G,4G phone,available for analogue version and IP version
           ☛ External Antenna with long cable
           ☛ Vandal resistant metal button

One button programmable for speed dial
           ☛ Two indicators: one for power supply; one for phone state
           ☛ Support message function for low battery, door opening & low signal strength







Packing & Delivery

Highway Emergency Telephone For Roadside Highway

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Highway Emergency Telephone For Roadside Highway



  Unit size 530 *280*200 (mm)
  Carton size 620*340 *260 (mm)
  Packaging materials  Pearl cotton, Carton
  Gross weight 12 KG
  Net weight 10 KG



Highway Emergency Telephone For Roadside Highway



  Port Shenzhen

  Lead Time

(If you finish the payment today, your order will ship out within the delivery date.)

Quantity(Pieces) 1-10 11-100 101-200 >200
Est. Time(days) 2 10 20 To be negotiated
