Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip

China J&R Technology Limited certification
China J&R Technology Limited certification
I'm Online Chat Now

Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip

Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip
Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip

Large Image :  Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip

Product Details:
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR103-FK
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: negotiable
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detailed Product Description
Color: Yellow Or Customized Material: Die-casting Aluminum Alloy
Version: Analogue, SIP, GSM, 4G Installation: Wall Mounting
Warranty: 2 Years Weight: 5 KG
Size: 204 *334 *74(mm) Keypad: Yes
Power Input: 12-24V DC Weather Resistance: IP66-IP67
Packaging Materials: Pearl Cotton, Carton Door: Optional
High Light:

weatherproof telephone box

,

outdoor weatherproof telephones

Product Description

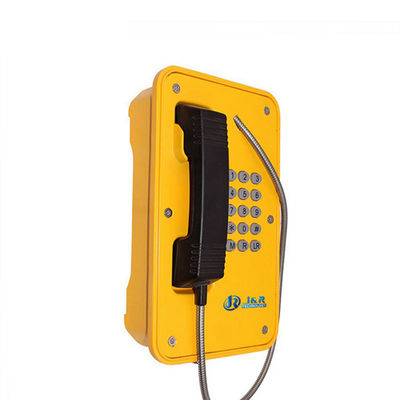

Aluminium Alloy Marine Telephone Weatherproof Telephone for offshore
The industrial telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
JR103-FK is designed for voice communication in the hostile envirronment where reliability, efficiency and safety are of prime importance.



SIP-VoIP TECHNICAL SPECIFICATIONS
Power Input:
12-24V DC
Port:
WAN: 10/100Base- T RJ-45 for LAN, Auto MDIX
LAN: 10/100Base- T RJ-45 for PC, Auto MDIX
Power Consumption:
Idle:1.5W/ Active:1.8W
Voice Features

l Support SIP 2.0 (RFC3261)

l Codec: G.711A/u, G.7231 high/low, G.729, G.722

l Echo cancellation: Support G.168 and hand-free can support 96ms

l Supports full duplex

l SIP support SIP domain, SIP authentication(none, basic,MD5),DNS name of server

l DTMF:SIP info, DTMF Relay,RFC2833

l Call control features: Flexible dial map, support hot-line
Network Features

l WAN/LAN: support Bridge mode

l Support static IP address

l Support DHCP get IP on WAN port

l Support VLAN
        Support web config





Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip 0

Application

Aluminium Alloy Marine Telephone Weatherproof Telephone for offshore
The phone is suitable for use in harsh environment characterized by: indoor & outdoor, Presence of dust & water ingress. Corrosive atmosphere, varying temperature, loud ambient noise, safety ect.
Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip 1
Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip 2
Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip 3

Specification

Aluminium Alloy Marine Telephone Weatherproof Telephone for offshore


Casing Material
Die cast aluminium body, cold rolled steel paceplate epoxy powder coated
Colors
yellow, other colors to special order
Handset Material
Cycoloy with stainless steel spiral cord
Keypad
Rubber Keypad
Temperature:Operating
Operating: -30°C to +65°C Storing: -40°C to +75°C
Weather Resistance
IP66-IP67
Ringing Tone
Shrill warble tone 80 dBA @ 1 metre typical
Hook switch
Electronic/ magnetic with no visible moving parts
Push button
Vandal resistant stainless steel button
M.T.B.F.
Calculated to have an M.T.B.F. in excess of 60,000 hours using
Weight
Up to 5 kg depending on option
Package Materials Pearl cotton, carton



Feature

Aluminium Alloy outdoor emergency phone Weatherproof Telephone for offshore



Standard Analogue phone/ SIP phone
Vandal resistant handset and cord
Weather proof protection to IP66
Full keypad with memory, 0-9 buttons can be programmed as speed dial button
"LR" button for last number redial
"R" for flash recall
"M" for muting
Wall mounting, Easy for installation
Inductive coupler fitted as standard for hard of hearing, with LCD display
Phone line power supply or PoE (SIP-VoIP)
RJ45 port for SIP phone
CE, FCC, ROSH compliant

Package

Aluminium Alloy Marine Telephone Weatherproof Telephone for offshore


unit size 204*334*74(mm)
Carton size 200*300*440(mm)
Package Materials pearl cotton, carton
Gross Weight 6KG
Net Weight 5KG

Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip 4

Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip 5Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip 6Aluminum Alloy Waterproof Emergency Phone Full Keypad 12-24V DC Support Sip Voip 7
