Home > products > Industrial Weatherproof Telephone > Industrial Waterproof Emergency Phone LCD Display SOS Function For Hazardou Area

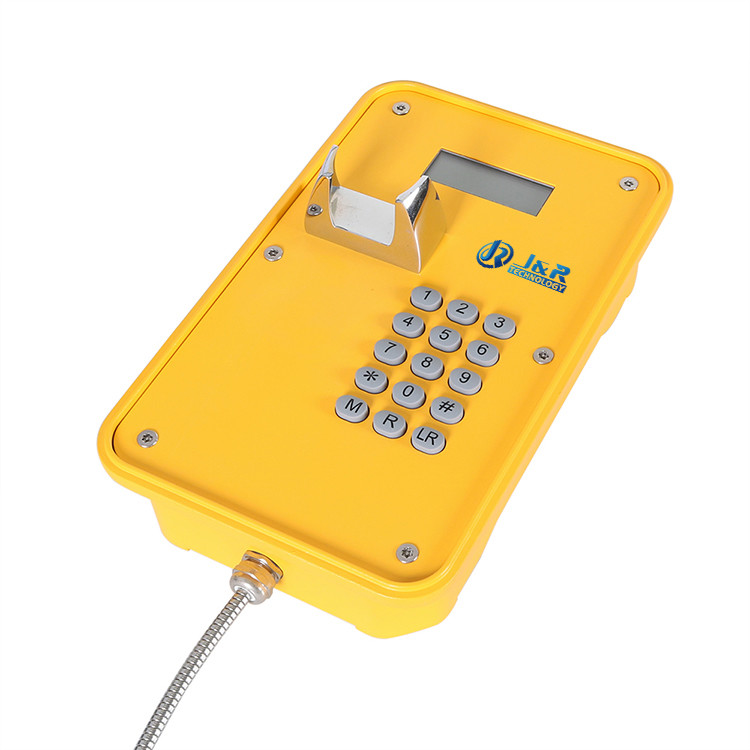

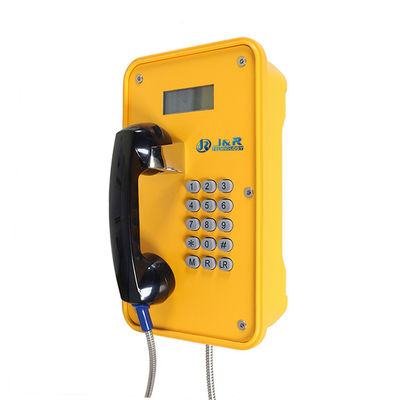

Industrial Waterproof Emergency Phone LCD Display SOS Function For Hazardou Area

Product Details

Place of Origin: Shenzhen, China

Brand Name: J&R

Certification: CE, FCC, RoHS, ISO9001

Model Number: JR105-FK

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Reconsideration

Packaging Details: Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 6.2KG Gross weight: 7KG

Delivery Time: 3-5 working days

Payment Terms: L/C, T/T

Supply Ability: 3000 sets per month

Get Best Price
Product Details
High Light:

weather resistant telephone

,

weatherproof telephone box

Product Name:
Weatherproof Hospital Emergency SIP Telephone With LCD Display
Material:
Aluminum Alloy
Function:
SOS
Main Chip:
Audiocodec
Package:
Pearl Cotton, Carton
Modle:
Analog/ SIP/ GSM/ 3G
Mounting:
Wall /Pillar Mounted
Ingress Protection Rating:
IP66-IP67
Full Keypad:
Yes
Door Cover:
Optional
Temperature:
-30°C To +65°C
OEM:
Yes
Warranty:
2 Years
Feature1:
Anti Vandal
Feature2:
LCD
Product Name:
Weatherproof Hospital Emergency SIP Telephone With LCD Display
Material:
Aluminum Alloy
Function:
SOS
Main Chip:
Audiocodec
Package:
Pearl Cotton, Carton
Modle:
Analog/ SIP/ GSM/ 3G
Mounting:
Wall /Pillar Mounted
Ingress Protection Rating:
IP66-IP67
Full Keypad:
Yes
Door Cover:
Optional
Temperature:
-30°C To +65°C
OEM:
Yes
Warranty:
2 Years
Feature1:
Anti Vandal
Feature2:
LCD
Product Description

PRODUCTION DESCRIPTION

Industrial Emergency Weatherproof Telephones with LCD Display for Hazardou Area

The JR100 series telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.

The JR100 series Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.

Standard Analogue

As a standard analogue telephone, this unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including analogue PABX lines and PSTN.



FEATURE

l Standard Analogue phone/SIP phone

l Vandal resistant handset and cord

l Weather proof protection to IP66

l Full keypad with memory, 0-9 buttons can be programmed as speed dial button.

l LR button for last number redial

l R for flash recall

l M for muting

l Wall mounting, Easy for installation

l Inductive coupler fitted as standard for hard of hearing, with LCD display

l Phone line powered(Analogue)

l External power supply or PoE (SIP-VoIP)

l RJ45 port for SIP phone

       CE,FCC,ROSH compliant









TECHNICAL SPECIFICATIONS

Casing Material

Die cast aluminium, epoxy powder coated. Colors

Yellow, other colors to special order

Handset Material

Cycoloy with stainless steel spiral cord

Keypad

Rubber Keypad

Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

Weather Resistance

IP66-IP67

Ringing Tone

Shrill warble tone 80 dBA @ 1 metre typical

Hook switch

Electronic / magnetic with no visible moving parts

M.T.B.F.

Calculated to have an M.T.B.F. in excess of 60,000 hours using

Weight

Up to 5 kg depending on option



ANALOGUE

Dialing

MF (tone)

Power supply

Drawn from telephone line

Lightning / Transients

Protection to ITU-T k.21 enhanced levels

Programming

Can be programmed remotely by DTMF tone or use keypad

APPLICATION

Weatherproof Hospital Emergency SIP Telephone with LCD Display

Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.



2 application

PACKAGE

Weatherproof Hospital Emergency SIP Telephone with LCD DisplayIMG_0233

IMG_4080



Industrial Waterproof Emergency Phone LCD Display SOS Function For Hazardou Area 3
