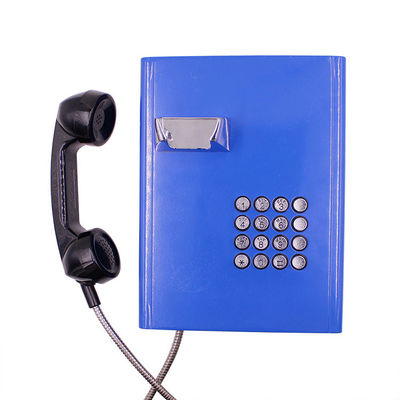

Public Server Vandal Resistant Telephone Rugged Inmate With Volume Control Button

China J&R Technology Limited certifications
China J&R Technology Limited certifications
I'm Online Chat Now

Public Server Vandal Resistant Telephone Rugged Inmate With Volume Control Button

Public Server Vandal Resistant Telephone Rugged Inmate With Volume Control Button
Public Server Vandal Resistant Telephone Rugged Inmate With Volume Control Button Public Server Vandal Resistant Telephone Rugged Inmate With Volume Control Button Public Server Vandal Resistant Telephone Rugged Inmate With Volume Control Button

Large Image :  Public Server Vandal Resistant Telephone Rugged Inmate With Volume Control Button

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR201-FK-VC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detailed Product Description
Material: Cold Rolled Steel Color: Bule, Or Optional
Warranty: 2 Years Weather Protection: IP65
Handset: ABS Material With Armored Cord Keypad: Full Rugged & Durable Keypad
Voice Control Button: Yes Vandal Resistant: Yes
High Light:

vandal proof intercom

,

vandal resistant phone

Rugged Inmate Phones with Voice Control Button, Anti-vandal Visitation Telephone



Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.





MAIN FEATURES

- Standard Analogue phone, or VoIP/SIP Phone

- Robust housing, constructed of cold rolled steel with powder coat

- Vandal resistant handset and armored cord



- Weather proof protection: IP55-IP65

- Full rugged & durable keypad with volume control feature

- With memory, easy to operate. 0-9 buttons can also be programmed as speed dial button.



- Wall mounting, simple installation

- Inductive coupler fitted as standard for hard of hearing

- CE, FCC, RoHS, ISO9001 compliant



- Phone line powered (Analog version)

- External Power supply or PoE (SIP phone)

- RJ45 port for SIP phone

- Compatible with standard SIP protocol, independently accessible to VOIP phone system.

   (Asterisk, Elastix,Grandstream,Cisco,Yeastar etc. mainstream IP-PBX)





TECHNICAL PARAMETERS



Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle: 1.5W
-Active: 1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C







PACKAGE

unit size: 247 *130 *132 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 3 KG

Gross weight: 4 KG



Public Server Vandal Resistant Telephone Rugged Inmate With Volume Control Button 0

Public Server Vandal Resistant Telephone Rugged Inmate With Volume Control Button 1

Public Server Vandal Resistant Telephone Rugged Inmate With Volume Control Button 2

Our Company

J&R is a China-based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model available for Analogue version, IP/SIP version,GSM/3G version)
After well study your information, we sincerely hope to enter into partnership with your esteemed company. and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and cost-effective solution to support you with the project requirement and marketing proposal.


Public Server Vandal Resistant Telephone Rugged Inmate With Volume Control Button 3Public Server Vandal Resistant Telephone Rugged Inmate With Volume Control Button 4
