| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | ATEX CE FCC HoHS ISO9001 |
| Model Number: | JREX106-A03 |
| Minimum Order Quantity: | 1 unit |
| Price: | Reconsideration |
| Packaging Details: | Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 7KG Gross weight:8KG |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, , D/P, T/T, Western Union,Paypal |
| Supply Ability: | 3000 sets per month |
| Color: | Orange Or Customized | Feature1: | Explosion Proof |
|---|---|---|---|
| Warranty: | 2 Years | Feature2: | Full Keypad |
| Material: | Die Cast Aluminium, Epoxy Powder Coated | SIZE: | 246*339*126(mm) |
| Net Weight: | 7kg | Usage: | Heavy Duty Factory |
| Ingress Protection Rating: | IP67 | Function: | SOS |
| High Light: | hazardous area telephone,explosion proof ip phone |
||
Product Description

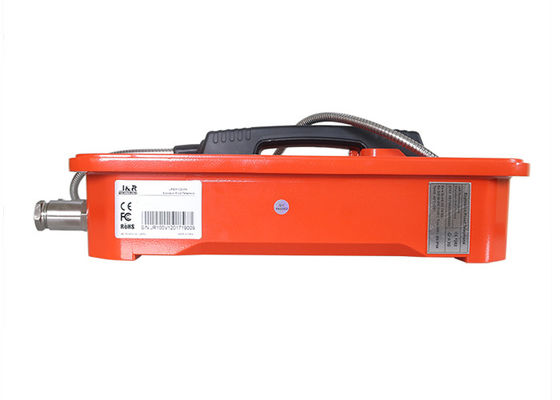

Explosion Proof Mining, Tunnel Telephone in Harsh Environment
The Explosion Proof Telephone is designed for voice communication in the hostile enviornment where reliability, efficiency and safety are of prime importance. The telephone can handle the large temperature difference found out-doors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.
Feature
Explosion Proof Mining, Tunnel Telephone in Harsh Environment
l Standard Analogue phone
l Aluminum alloy die-casting body
l Vandal resistant handset and armored cord
l Weather proof protection to IP67
l Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
l “LR” button for last number redial
l “R” for flash recall
l “M” for muting
l Wall mounting, Simple installation
l Inductive coupler fitted as standard for hard of hearing
l Phone line powered (Analogue)
l CE, FCC, ATEX, RoHS compliant
EXPLOSION PROTECTION
l II 2G Rx e ib [ib] mb IIC T6 Gb
l III 2D Ex ib [ib] tb IIIC T135 °
l Certificated for use in Hazardous areas of Gas Group IIB/IIA
l Zone classification: Zone 1, Zone 2 and Zone 22
l Ex ’d’ protected
l Intrinsically safe Ex”ib” certified
l Temperature classification:T4
TECHNICAL SPECIFICATIONS
| Casing Material | Die cast aluminium, epoxy powder coated |
| Colors | Orange, other colors to special order |
| Handset Material | Cycoloy with stainless steel spiral cord |
| Keypad | Rubber Keypad |
| Temperature |
Operating: -40°C to +70°C Storing: -45°C to +80°C |
| Weather Resistance | IP67 |
| Ringing Tone | Shrill warble tone 85 dBA @ 1 metre typical |
| Hook switch | Electronic / magnetic with no visible moving parts |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 7 kg depending on option |
Package
Explosion Proof Mining, Tunnel Telephone in Harsh Environment
Unit size: 246 *339 *126 (mm)
Carton size: 200*300*440 (mm)
Packaging materials: pearl cotton, carton
Gross weight: 8 KG
Net weight: 7 KG
