Industrial Weatherproof Telephone
Created with Pixso.

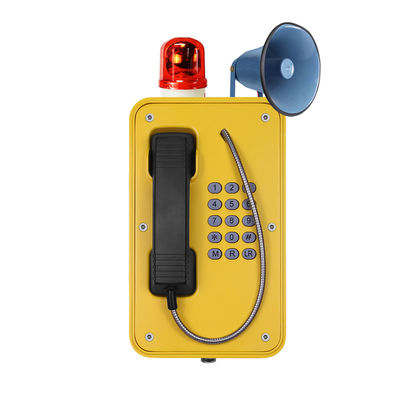

SIP Emergency Industrial Weatherproof Telephone JR103-FK-HB Die Casting Aluminum

SIP Emergency Industrial Weatherproof Telephone JR103-FK-HB Die Casting Aluminum

Brand Name: J&R
Model Number: JR103-FK-HB
MOQ: 1 Unit
Price: negotiable
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE, FCC, RoHS, ISO9001
Color:
Yellow Or Customized
Material:
Die-casting Aluminum
Version:
Analogue, SIP, GSM, 3G
Installation:
Wall Mounting
Warranty:
2 Years
Weight:
6KG
Size:
204 *334 *126(mm)
Keypad:
Full Keypad
Weather Resistance:
IP66-IP67
Function:
Anti Vandal
Feature:
With Horn And Beacon
Packaging Details:
J&R standard packing ,pearl cotton, carton
Supply Ability:
10000pcs per month
Highlight:

weatherproof telephone box

,

outdoor weatherproof telephones

Product Description

Product Description

JR103-FK-HB Weatherproof Heavy Industrial SIP Emergency Telephone

The JR100 series telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.



With HD voice quality, wide band voice cede G.722, making perfect acoustic enjoyment; Full duplex speakerphone, latest Echo Cancel algorithm and professional echo cancellation Technology; PoE power supply, no need to connect external power supply, reducing wiring trouble.



Standard Analogue phone/SIP phone

Vandal resistant handset and cord

Weather proof protection to IP66

Full keypad with memory, 0-9 buttons can be programmed as speed dial button.

The phone will ringing loudly and lamp will flashing when there is a incoming call.

With auto-answer feature after 5ringing,Auto- release the line when the other side cut off the line.

Built-in amplifier,with external ringer and lamp:15W (30W optional),broadcasting feature

Wall mounting, simple installation

External power supply

CE,FCC,ROSH compliant

SIP Emergency Industrial Weatherproof Telephone JR103-FK-HB Die Casting Aluminum 0

Application

It's suitable for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.



SIP Emergency Industrial Weatherproof Telephone JR103-FK-HB Die Casting Aluminum 1

SIP Emergency Industrial Weatherproof Telephone JR103-FK-HB Die Casting Aluminum 2

Specification

Casing Material

Die cast aluminium, epoxy powder coated

Colors

Yellow, other colors to special order

Handset Material

Cycoloy with stainless steel spiral cord

Keypad

Rubber Keypad

Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

Weather Resistance

IP66

Ringing Tone

Shrill warble tone 80 dBA @ 1 metre typical

Hook switch

Electronic / magnetic with no visible moving parts

M.T.B.F.

Calculated to have an M.T.B.F. in excess of 50,000 hours using

Weight

Up to 6 kg depending on option

SIP Emergency Industrial Weatherproof Telephone JR103-FK-HB Die Casting Aluminum 3

Pacakge

unit size: 204 *334 *126(mm)

Carton size:200*300*440( mm )

Packaging materials: pearl cotton, carton

Gross weight: 7KG

Net weight: 6KG

SIP Emergency Industrial Weatherproof Telephone JR103-FK-HB Die Casting Aluminum 4

Our Company

J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.
