Aluminum Alloy Waterproof Emergency Phone Audiocodec Main Chip For Outdoor SOS

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR101-FK-H
Minimum Order Quantity: 1 unit
Price: Reconsideration
Packaging Details: Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 6.2KG Gross weight: 7KG
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 sets per month
Detail Information
Product Name: High Quality Industrial Weatherproof Telephony For Outdoor SOS Material: Aluminum Alloy
Function: SOS Main Chip: Audiocodec
Package: Pearl Cotton, Carton Modle: Analog/ SIP/ GSM/ 3G
Mounting: Wall /Pillar Mounted Ingress Protection Rating: IP66-IP67
Full Keypad: Yes Door Cover: Optional
Temperature: -30°C To +65°C OEM: Yes
Warranty: 2 Years Feature1: Anti Vandal
Feature2: Horn
High Light:

weather resistant telephone

,

weatherproof telephone box


Product Description

Product Description

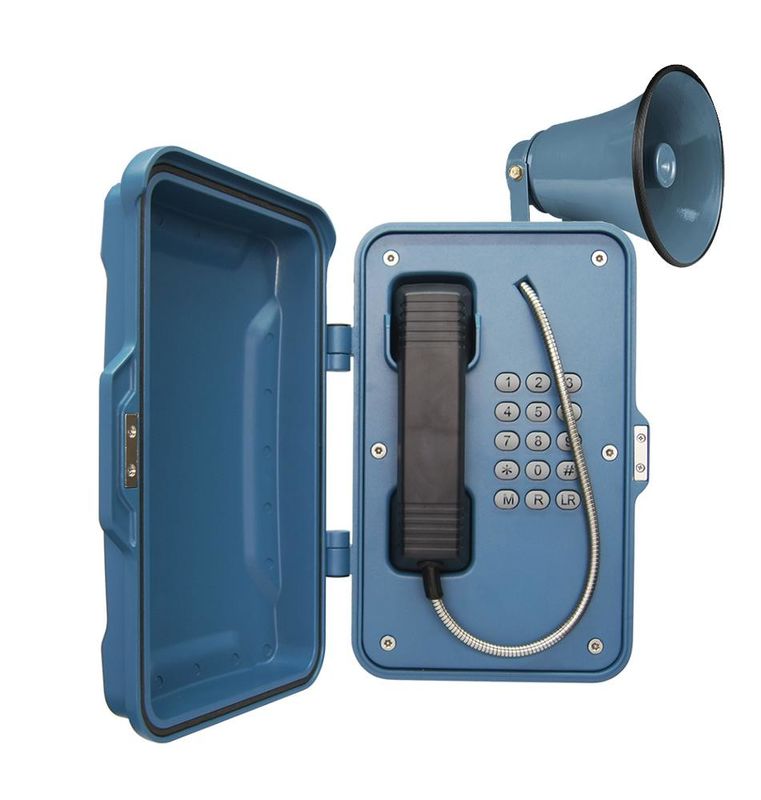

High Quality Industrial Weatherproof Telephony for outdoor SOS

As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.


Specification

Analogue Version
Power Supply: From the analogue telephone network
Supply Voltage: 24 VDC to 65 VDC
Supply Current:20 mA DC to 100 mA DC
Ringer Volume: - 80dB(A) at a distance of 1 m

                            - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method: DTMF mode in accordance with ITU-T recommendation Q.23.


SIP Version
Power Supply: PoE or 12V DC
Power Consumption: -Idle:1.5W
                                      -Active:1.8W
SIP Protocol: SIP 2.0 (RFC3261)
Support Codec: G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type: Full duplex
Ringer volume: - 90~95dB(A) at a distance of 1 m
                            - 110dB(A) at a distance of 1 m (for external horn speaker)


3G Version
Power Supply: 12V DC
Power Consumption: -Idle:0.3W
                                       -Active: 1.5W
Communication Type: Full duplex
Ringer volume: 90~95dB(A) at a distance of 1 m
Program Method: Remote programming by SMS
Frequency: A version: - Dual-Band WCDMA/HSDPA 850/1900MHz
                                       - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
                    E version: - Dual-Band UMTS/HSDPA 900/2100MHz
                                       - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
                    J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz
                                       - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz


Ambient conditions
Protection type: IP 66 as per EN60529
Operating temperature: -25°C to +70°C
Storage temperature: -25°C to +85°C


Application

Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.
