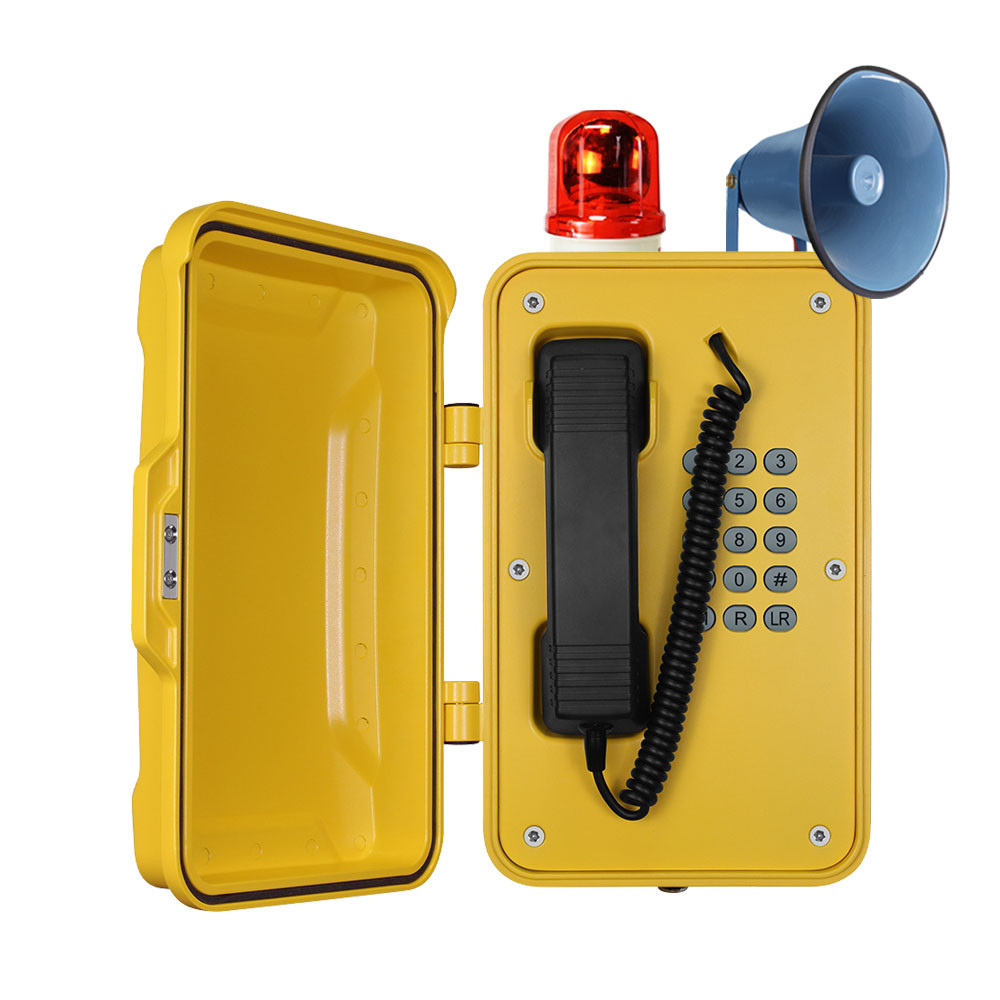

JR101-FK-HB Houtdoor Weatherproof Telephones Heavy Duty Mining Type Full Keypad

Name: JR101-FK-HB Houtdoor Weatherproof Telephones Heavy Duty Mining Type Full Keypad
Brand: J&R Technology Limited
SKU: JR101-FK-HB
Price: 374.00 USD
Availability: InStock

Brand Name:	J&R
Model Number:	JR101-FK-HB
MOQ:	1 unit
Price:	Reconsideration
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Product Name:

JR101-FK-HB Hot Sell Outdoor Weatherproof Heavy Duty Mining Telephone

Material:

Aluminum Alloy

Function:

SOS

Main Chip:

Audiocodec

Package:

Pearl Cotton, Carton

Modle:

Analog/ SIP/ GSM/ 3G

Mounting:

Wall /Pillar Mounted

Ingress Protection Rating:

IP66-IP67

Full Keypad:

Yes

Door Cover:

Optional

Temperature:

-30°C To +65°C

OEM:

Yes

Warranty:

2 Years

Feature1:

Anti Vandal

Feature2:

Horn And Beacon

Packaging Details:

Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 6.2KG Gross weight: 7KG

Supply Ability:

3000 sets per month

Highlight:

weatherproof telephone box

outdoor weatherproof telephones

Product Description

PRODUCT DESCROTION

FEATURE

JR101-FK-HB hot sell Outdoor Weatherproof Heavy Duty Mining telephone

Standard Analogue phone

Vandal resistant handset and cord

Weather proof protection to IP67

Full keypad with memory, 0-9 buttons can be programmed as speed dial button.

“LR” button for last number redial

“R” for flash recall

l “M” for muting

Wall mounting or Pole mounitng, Simple installation

Inductive coupler fitted as standard for hard of hearing

Phone line powered

CE,FCC,ROHS,ISO9001 compliant

Application

JR101-FK-HB hot sell Outdoor Weatherproof Heavy Duty Mining telephone

Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.

JR101-FK-HB Houtdoor Weatherproof Telephones Heavy Duty Mining Type Full Keypad 0

JR101-FK-HB Houtdoor Weatherproof Telephones Heavy Duty Mining Type Full Keypad 1

Technical Specification

JR101-FK-HB hot sell Outdoor Weatherproof Heavy Duty Mining telephone

Analogue Version
Power Supply		From the analogue telephone network
Supply Voltage		24 VDC to 65 VDC
Supply Current		20 mA DC to 100 mA DC
Ringer Volume		- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method		DTMF mode in accordance with ITU-T recommendation Q.23.

Ambient conditions
Protection type		IP 66 as per EN60529
Operating temperature		-40°C to +70°C
Storage temperature		-40°C to +85°C

JR101-FK-HB Houtdoor Weatherproof Telephones Heavy Duty Mining Type Full Keypad 2

PACKAGE

JR101-FK-HB Houtdoor Weatherproof Telephones Heavy Duty Mining Type Full Keypad 3

JR101-FK-HB Houtdoor Weatherproof Telephones Heavy Duty Mining Type Full Keypad 4

Certificate

JR101-FK-HB Houtdoor Weatherproof Telephones Heavy Duty Mining Type Full Keypad 5

10 Reasons to Choose J&R

1. Where environmental factors pose a problem for conventional telephones

2. Where emergency communication points are needed

3. Where public information points are needed

4. When reliability and up-time are critical goals

5. When central management and control are important

6. Where maintenance access is difficult

7. When compatibility to existing systems is important

8. When voice sound quality is important

9. When future-proofing is needed

10. When ease of installation is important Service – Here when you Need us At J&R, we strive to deliver excellent service and customer support. We offer accreditation and installation training to our authorised partners, imparting best practice when it comes to installation and maintenance support. We also offer extended warranties and repair services on all our deliveries. We aim to respond to all product support requests within 24 hours.
