| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR101-FK-L |
| Minimum Order Quantity: | 1 |
| Price: | Reconsideration |
| Packaging Details: | Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 6.2KG Gross weight: 7KG |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Product Name: | Emergency Outdoor Industrial Weatherproof Telephone For Underground With Light | Material: | Die-casting Aluminum Alloy |
|---|---|---|---|
| Function: | Waterproof,free Dial ,emergency Call, | Main Chip: | Audiocodec |
| Package: | Pearl Cotton, Carton | Modle: | Analog/ SIP/ GSM/ 3G |
| Mounting: | Wall /Pillar Mounted | Ingress Protection Rating: | IP66-IP67 |
| Full Keypad: | Yes | Door Cover: | Yes |
| Feature: | With LED Lamp Indicator | Handset: | Yes |
| Temperature: | -30°C To +65°C | OEM: | Yes |
| Warranty: | 2 Years | ||
| High Light: | weather resistant telephone,weatherproof telephone box |
||
Product Description

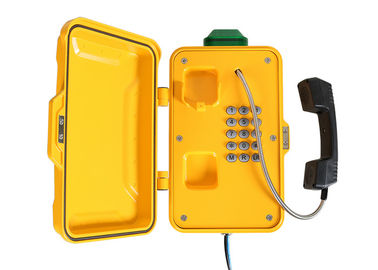

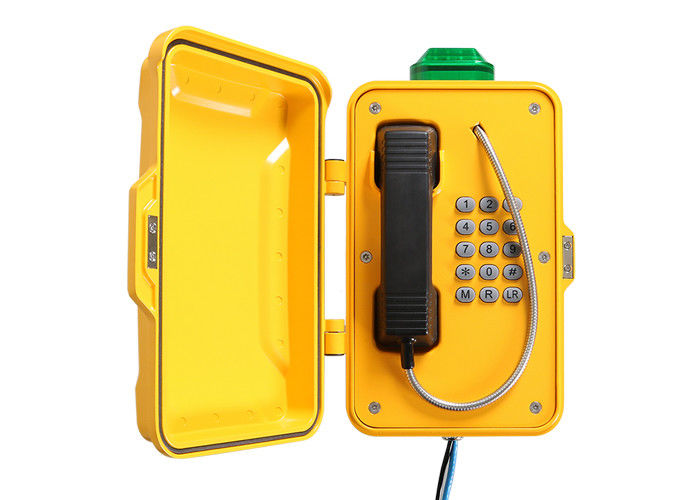

The JR100 series telephones are full contained within a corrosion resistant cast aluminum weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Feature
Emergency Outdoor Industrial Rainproof Telephone for Underground with Light
-Standard Analogue phone or SIP phone
-Vandal resistant handset and armored cord
- Weather proof protection to IP66-IP67

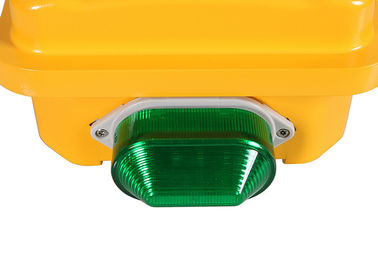

- With LED lamp fixed on the top, When there is a incoming call, the lamp will flashing.
- Full keypad with memory, 0-9 buttons can be programmed as speed dial button.
“LR”button for last number redial
“R”for flash recall
“M”for muting
-Can be programmed remotely by tone phone or locally via keypad
- On wall mounting, Simple installation
- Inductive coupler fitted as standard for hard of hearing
- Phone line powered (Analogue)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
- CE, FCC, RoHS, ISO9001 compliant
| Casing Material | Aluminum |
| Colors | Yellow, other colors to special order |
| Handset | Yes |
| Keypad | Full Keypad |
| Temperature/Operating |
Operating: -30°C to +65°C
Storing: -40°C to +75°C
|
| Weather Resistance | IP66-IP67 |
| Ringing Tone | Shrill warble tone 90 dBA @ 1 metre typical |
| Hook switch | No |
| Push button | Vandal resistant stainless steel button |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Installation | wall-mounting |
| Power Input | 12-24V DC |
Application
Emergency Outdoor Industrial Rainproof Telephone for Underground with Light
The JR100 Series Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.
Emergency Outdoor Industrial Rainproof Telephone for Underground with Light
