Help Line Metro Service Emergency Telephone Emergency Help Point With Camera

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001:2015
Model Number: JR315-SC
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month
Detail Information
Phone Material: Stainless Steel Pillar MaterialWeather Resistant: IP65 Cold Rolled Steel
Power Supply: PoE Color: Blue, Grey
Size: 1800*300 *90 (mm) Net Weight: 45 KG
Warranty: 2 Years Weather Resistant: IP65
Product Name: Help Line Emergency Telephone,metro Service Phone,emergency Help Point With Camera
High Light:

sos emergency phone


highway emergency phone

Product Description

Vandal Resistant Hands-free VoIP Emergency Video Telephone for Metro / Subway


The Handsfree SOS Telephone with camera is designed to meet the needs of client who experience loss through vandalism. Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

Help Line Metro Service Emergency Telephone Emergency Help Point With Camera 0Help Line Metro Service Emergency Telephone Emergency Help Point With Camera 1



This emergency telephone pillar is very popular for university and college campuses, roadsides, streets, public square, car-parks, police stations, outside buildings, shopping malls, medical centers, industrial campuses, transit facilities and remote locations where local power is not available.


Main Features:


- SOS-Video Pillar

- Standard SIP Phone

- Finished in contrasting colours, with a raised 32mm button. Raised text, Induction Loop facility for hearing impaired


- Hands-free loudspeaking communications for any public area,with Media converter

- Dual purpose design for surface or pillar mounting, simple installation

- Robust/Weather resistant: IP65


- Dual button autodial for emergency call

- External power supply or PoE (SIP)

- RJ45 Port for SIP connection

- CE, FCC, RoHS, ISO9001 compliant


Camera Features of Intrinsically Safe Telephone


Video Codec: H.264 HP,MPEG4 SP,MJPEG

Resolution Ratio: 1,280*720@20 fps

Sensitivity: 0.5 Lux,1.0V/lux-sec (550nm)

Viewing angle: 135'(H),109'(V)

Video Compression Output: 16Kbps - 2Mbps

FPS: 10-30 fps

D-Range: 71dB (SNRMAX = 42.3dB)


Technical Specifications


SIP Version
Power Supply   PoE or 12V DC
Power Consumption   -Idle:1.5W
SIP Protocol   SIP 2.0 (RFC3261)
Support Codec   G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type   Full duplex
Ringer volume   - 90~95dB(A) at a distance of 1 m
  - 110dB(A) at a distance of 1 m (for external horn speaker)


Ambient conditions
Protection type   IP 66 as per EN60529
Operating temperature   -40°C to +70°C
Storage temperature   -45°C to +85°C

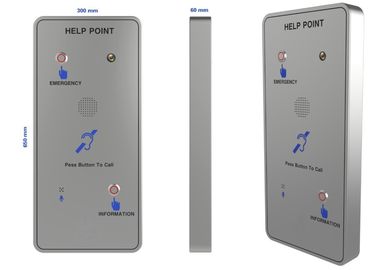

Help Point Unit Size: 650 *300 *60 (mm)

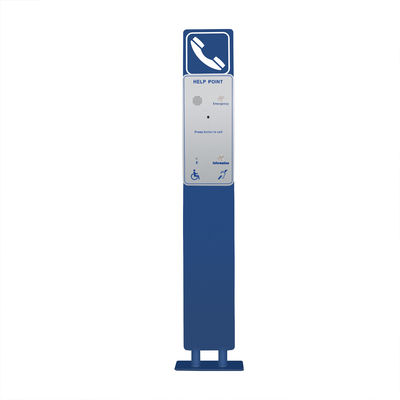

Pillar Size:1800 (H) *300 (W) ( mm )

Packaging materials: pearl cotton, carton

Net weight: 45 KG

Gross weight: 50 KG



Help Line Metro Service Emergency Telephone Emergency Help Point With Camera 2
