Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE,FCC, RoHS, ISO9001
Model Number: JR-TH-01
Minimum Order Quantity: 1 unit
Price: Reconsideration
Packaging Details: Pearl cotton, Wooden box
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Detail Information
Material: Fiberglass Reinforced Polyester (GRP) Noise Attenuation: -24dB (SPL)
Size: 780 * 680 * 500 (mm) Color: Blue, Yellow, Orange, Red Or Optional
Application: Both Indoors, Outdoors, Off-Shore & On-Shore Packaging Materials: Pearl Cotton, Wooden Box
Net Weight: 25 KG Installation: Wall Mounting
Vandal Resistant: Yes Fire Retardant: Yes
Product Name: Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant
High Light:

soundproof phone booth

,

acoustic phone hood


Product Description

Product Description

Public Emergency Cabinet Telephone Hood Marine Soundproof Booth for Power Plant

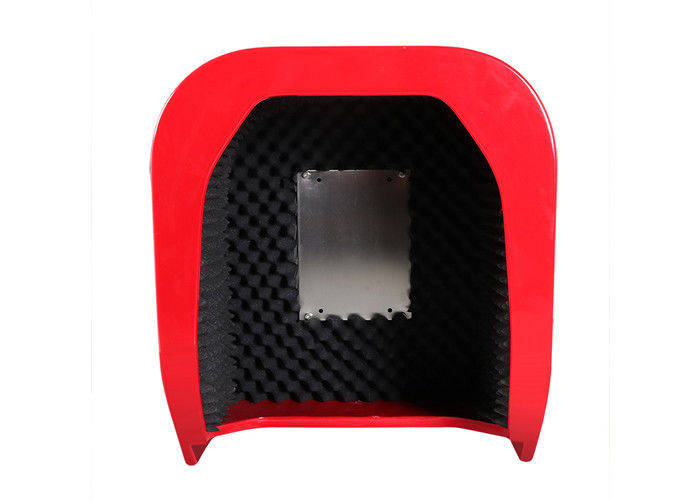

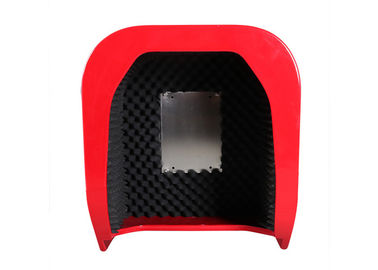

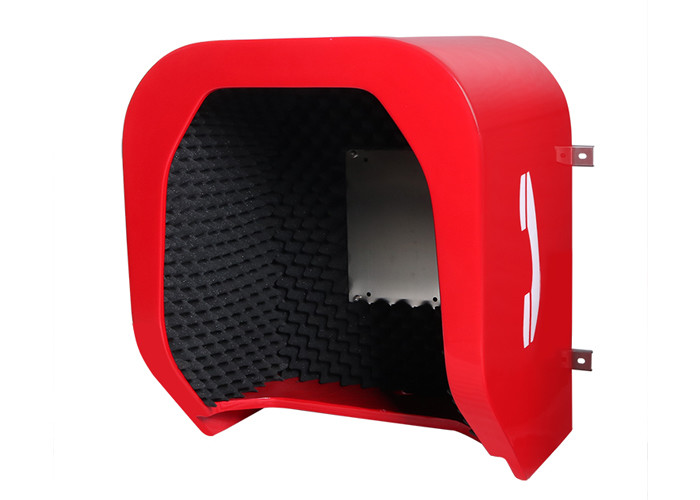

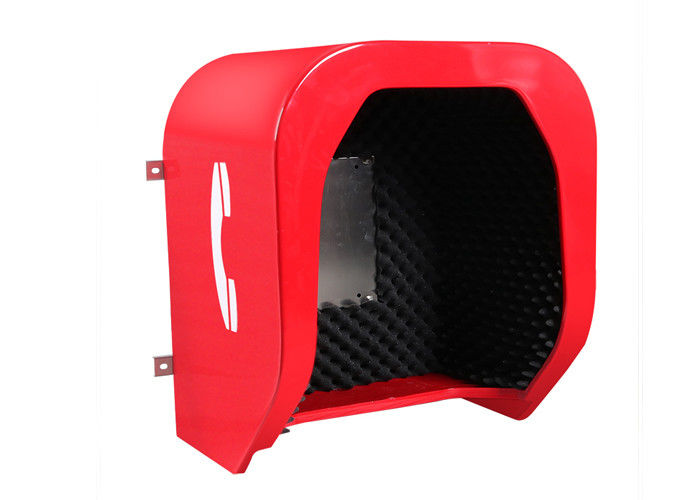

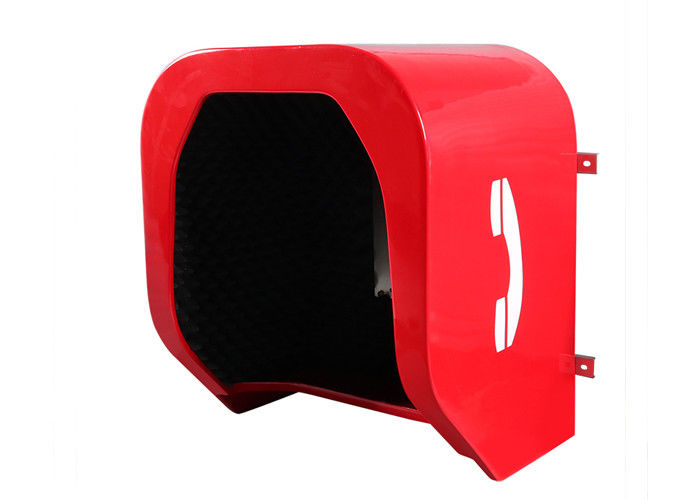

This Acoustic Telephone Booth made of fiberglass reinforced polyester (GRP), expecialy designed for installation in corrosive industrial and marine areas, Off-Shore & On-Shore, with non hygroscopic sound absorbing filling material, attenuation up to -24dB (SPL).It can be used both indoors, outdoors.

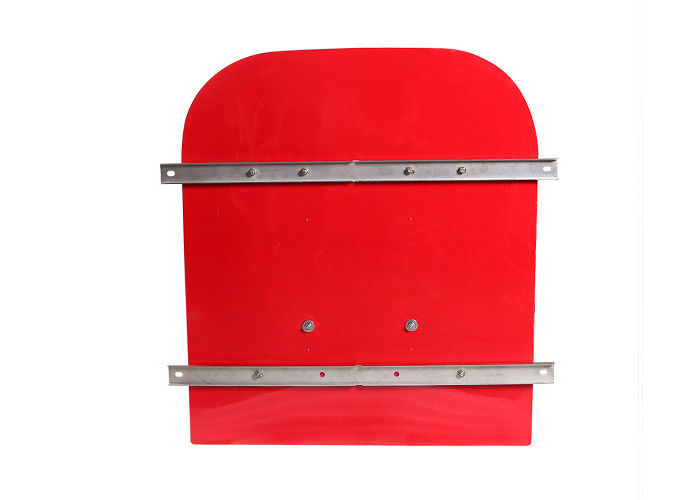

The hood is fixed to the wall via two stainless steel mounting brackets that are secured through the hood's back wall to the inner telephone apparatus plate. This enables a load of up to 60 kgs to be safely mounted on the plate. The plate is pre-drilled to accept many telephones.


Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant 0

Main Features

Public Emergency Cabinet Telephone Hood Marine Soundproof Booth for Power Plant

Features:
• Polyethylene plastic construction
• Polyethylene material flammability
• Durable, lightweight, chemical tesistant body
• Excellent low temperatures impact properties
• High performance polyurethane acoustic insulation liner, resistant to mildew and rot.
• Completely maintenance free and corrosion resistant, impervious to chemical attack
• Can be used both indoors, outdoors and offshore
• Standard color- Yellow
• Optional colors available upon request
• Special shape for higly noisy areas
• High acoustic insulation characteristics -24dB
• Designed for corrosive and saline atmosphere
• UV resistant and suitable for harsh environment
• Easy fixing system
• Suitable for heavy industrial telephones (up to 60 kg)
• Pass-trough hole on the shelf for cables inlet
• Fire Retardant
Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant 1



Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant 2

Specification

Dimensions
H780mm W680mm D500mm
Colour
Standard color is yellow, Blue and orange color is also available
Outer Shell
General Purpose Resin continuous filament mat - Fire Resistance
Material
fiberglass reinforced polyester
Acoustic Insulation
50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
Insulation Liner
White Perforated Polypropylene 3mm thickness
Apparatus plate
304 Grade Stainless Steel, 2mm thickness, powder coated white
Mounting Brackets
304 Grade Stainless Steel, 6mm thickness
Boxed Dimensions
80 x 70 x 55cm
Boxed Weight
pprox. 45kg


Application

Public Emergency Cabinet Telephone Hood Marine Soundproof Booth for Power Plant

This vandal resistant telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.


Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant 3

Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant 4



Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant 5

Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant 6



Certifications

Public Emergency Cabinet Telephone Hood Marine Soundproof Booth for Power Plant

Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant 7

Packing & Delivery

Public Emergency Cabinet Telephone Hood Marine Soundproof Booth for Power Plant

Packing :
Size: 780 * 680 * 500 (mm)
Packaging materials: pearl cotton, wooden box
Net Weight: 20 KGS
Gross weight: 45 KGS
Delivery:
3-10 working days after payment



Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant 8
Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant 9
Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant 10

Public Emergency Cabinet Telephone Hood Marine Soundproof Booth For Power Plant 11
