Water Proof GSM Explosion Proof Ip Phone Hotline Heavy Duty Emergency Telephone

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: ATEX CE FCC HoHS ISO9001
Model Number: JREX103
Minimum Order Quantity: 1 unit
Price: Reconsideration
Packaging Details: Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 7KG Gross weight:8KG
Delivery Time: 3-5 working days
Payment Terms: L/C, , D/P, T/T, Western Union,Paypal
Supply Ability: 3000 sets per month
Detail Information
Color: Orange Or Customized Feature1: Explosion Proof
Warranty: 2 Years Feature2: Hotline
Material: Die Cast Aluminium, Epoxy Powder Coated SIZE: 246*339*126(mm)
Net Weight: 7kg Usage: Heavy Duty Factory
Ingress Protection Rating: IP67 Function: SOS
High Light:

ex proof telephone


explosion proof ip phone

Product Description


Product Description

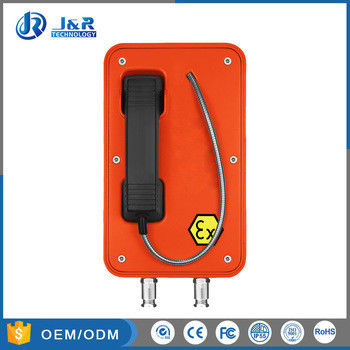

Explosion-Proof Waterproof GSM Emergency Hotline Heavy Duty Telephone

The Explosion Proof Telephone is designed for voice communication in the hostile enviornment where reliability, efficiency and safety are of prime importance. The telephone can handle the large temperature difference found out-doors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.

ex proof phone.jpg

explosionproof telephone.jpg


Explosion-Proof Waterproof GSM Emergency Hotline Heavy Duty Telephone

l Standard Analogue phone

l Aluminum alloy die-casting body

l Vandal resistant handset and armored cord

l Weather proof protection to IP67

l Full keypad with memory, 0-9 buttons can be programmed as speed dial button.

l LR button for last number redial

l R for flash recall

l M for muting

l Wall mounting, Simple installation

l Inductive coupler fitted as standard for hard of hearing

l Phone line powered (Analogue)

l CE, FCC, ATEX, RoHS compliant


l II 2G Rx e ib [ib] mb IIC T6 Gb

l III 2D Ex ib [ib] tb IIIC T135 °

l Certificated for use in Hazardous areas of Gas Group IIB/IIA

l Zone classification: Zone 1, Zone 2 and Zone 22

l Ex ’d’ protected

l Intrinsically safe Ex”ib” certified

l Temperature classification:T4


Casing Material Die cast aluminium, epoxy powder coated
Colors Orange, other colors to special order
Handset Material Cycoloy with stainless steel spiral cord
Keypad Rubber Keypad

Operating: -40°C to +70°C

Storing: -45°C to +80°C

Weather Resistance IP67
Ringing Tone Shrill warble tone 85 dBA @ 1 metre typical
Hook switch Electronic / magnetic with no visible moving parts
M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight Up to 7 kg depending on option



Explosion-Proof Waterproof GSM Emergency Hotline Heavy Duty Telephone

Unit size: 246 *339 *126 (mm)

Carton size: 200*300*440 (mm)

Packaging materials: pearl cotton, carton

Gross weight: 8 KG

Net weight: 7 KG
