J & R IP67 Waterproof Explosion Proof Phone Anti - Vandal For Coal Mine

Good quality Industrial VoIP Phone for sales
Good quality Industrial VoIP Phone for sales
I'm Online Chat Now

J & R IP67 Waterproof Explosion Proof Phone Anti - Vandal For Coal Mine

China J & R IP67 Waterproof Explosion Proof Phone Anti - Vandal For Coal Mine supplier
J & R IP67 Waterproof Explosion Proof Phone Anti - Vandal For Coal Mine supplier J & R IP67 Waterproof Explosion Proof Phone Anti - Vandal For Coal Mine supplier J & R IP67 Waterproof Explosion Proof Phone Anti - Vandal For Coal Mine supplier J & R IP67 Waterproof Explosion Proof Phone Anti - Vandal For Coal Mine supplier J & R IP67 Waterproof Explosion Proof Phone Anti - Vandal For Coal Mine supplier J & R IP67 Waterproof Explosion Proof Phone Anti - Vandal For Coal Mine supplier

Large Image :  J & R IP67 Waterproof Explosion Proof Phone Anti - Vandal For Coal Mine

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: ATEX CE FCC HoHS ISO9001
Model Number: JREX101-CB

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Reconsideration
Packaging Details: Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 7KG Gross weight:8KG
Delivery Time: 3-5 working days
Payment Terms: L/C, , D/P, T/T, Western Union,Paypal
Supply Ability: 3000 sets per month
Contact Now
Detailed Product Description
Color: Orange Or Customized Feature1: Explosion Proof
Warranty: 2 Years Feature2: Hotline
Material: Die Cast Aluminium, Epoxy Powder Coated SIZE: 246*339*126(mm)
Net Weight: 7kg Usage: Heavy Duty Factory
Ingress Protection Rating: IP67 Function: SOS

J & R IP67 Waterproof Explosion Proof Phone Anti - Vandal For Coal Mine



Product Description

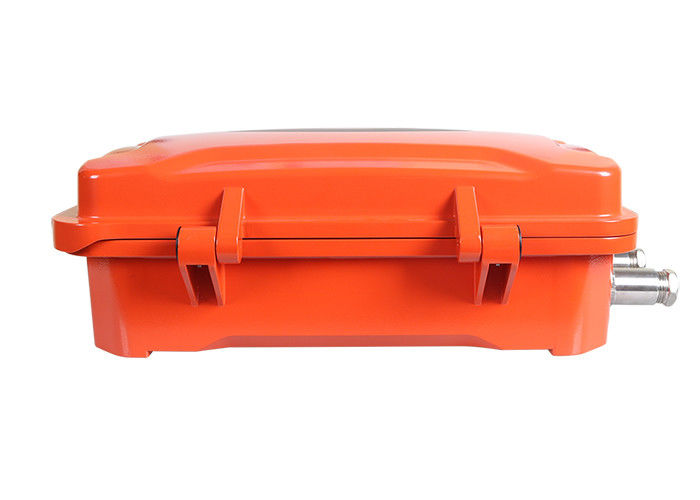

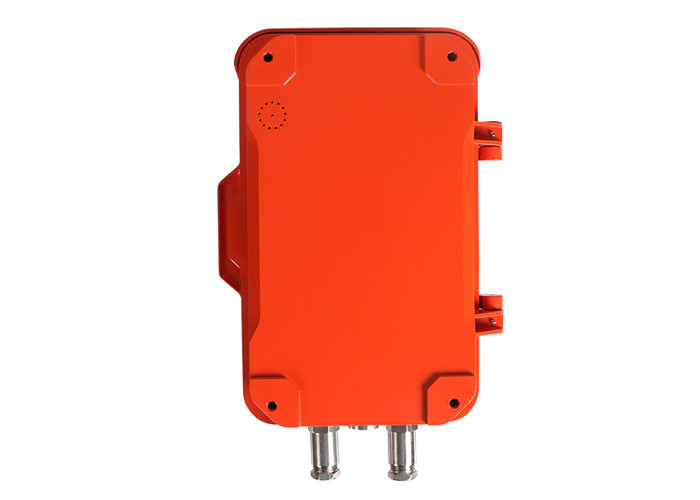

J&R IP67 waterproof Anti-Vandal Coal Mine EX-Proof Telephone

The Explosion Proof Telephone is designed for voice communication in the hostile enviornment where reliability, efficiency and safety are of prime importance. The telephone can handle the large temperature difference found out-doors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.

ex proof phone.jpg

explosionproof telephone.jpg

Feature

J&R IP67 waterproof Anti-Vandal Coal Mine EX-Proof Telephone

l Standard Analogue phone

l Aluminum alloy die-casting body

l Vandal resistant handset and armored cord

l Weather proof protection to IP67

l Full keypad with memory, 0-9 buttons can be programmed as speed dial button.

l LR button for last number redial

l R for flash recall

l M for muting

l Wall mounting, Simple installation

l Inductive coupler fitted as standard for hard of hearing

l Phone line powered (Analogue)

l CE, FCC, ATEX, RoHS compliant

EXPLOSION PROTECTION

l II 2G Rx e ib [ib] mb IIC T6 Gb

l III 2D Ex ib [ib] tb IIIC T135 °

l Certificated for use in Hazardous areas of Gas Group IIB/IIA

l Zone classification: Zone 1, Zone 2 and Zone 22

l Ex ’d’ protected

l Intrinsically safe Ex”ib” certified

l Temperature classification:T4

TECHNICAL SPECIFICATIONS

Casing Material Die cast aluminium, epoxy powder coated
Colors Orange, other colors to special order
Handset Material Cycoloy with stainless steel spiral cord
Keypad Rubber Keypad
Temperature

Operating: -40°C to +70°C

Storing: -45°C to +80°C

Weather Resistance IP67
Ringing Tone Shrill warble tone 85 dBA @ 1 metre typical
Hook switch Electronic / magnetic with no visible moving parts
M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight Up to 7 kg depending on option

Package

J&R IP67 waterproof Anti-Vandal Coal Mine EX-Proof Telephone

Unit size: 246 *339 *126 (mm)

Carton size: 200*300*440 (mm)

Packaging materials: pearl cotton, carton

Gross weight: 8 KG

Net weight: 7 KG

J & R IP67 Waterproof Explosion Proof Phone Anti - Vandal For Coal Mine

Our Company

J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.
