VOIP Industrial Weatherproof Telephone Audiocodec Main Chip J&R Speed Dial

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR102-SC
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 6.2KG Gross weight: 7KG
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 3000 sets per month
Detail Information
Product Name: New Design J&R Speed Dial Orange VOIP Industrial Tunnel Telephone Material: Aluminum Alloy
Function: SOS Main Chip: Audiocodec
Package: Pearl Cotton, Carton Modle: Analog/ SIP/ GSM/ 3G
Mounting: Wall /Pillar Mounted Ingress Protection Rating: IP66-IP67
Temperature: -30°C To +65°C OEM: Yes
Warranty: 2 Years Feature1: Speed Dial
Feature2: Anti Vandal Net Weight: 6kg
Gross Weight: 7kg Handset: Optional
High Light:

weather resistant telephone

,

weatherproof telephone box


Product Description

Product Description

New Design J&R Speed Dial Orange VOIP Industrial Tunnel Telephone

The industrial telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.
The industrial Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.

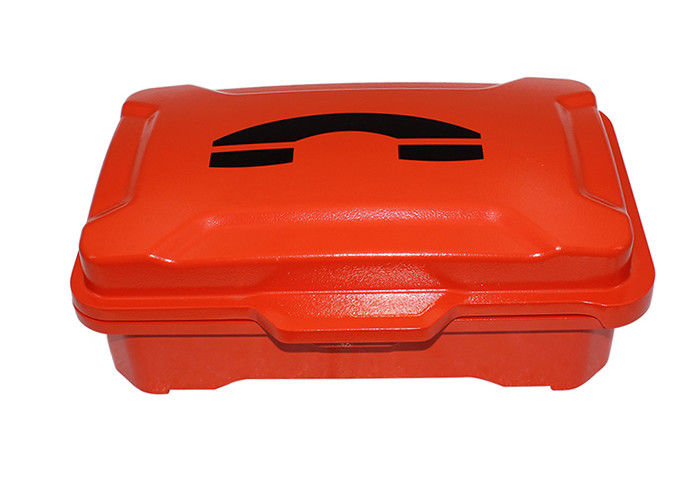

VOIP Industrial Weatherproof Telephone Audiocodec Main Chip J&R Speed Dial 0
Application

Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.

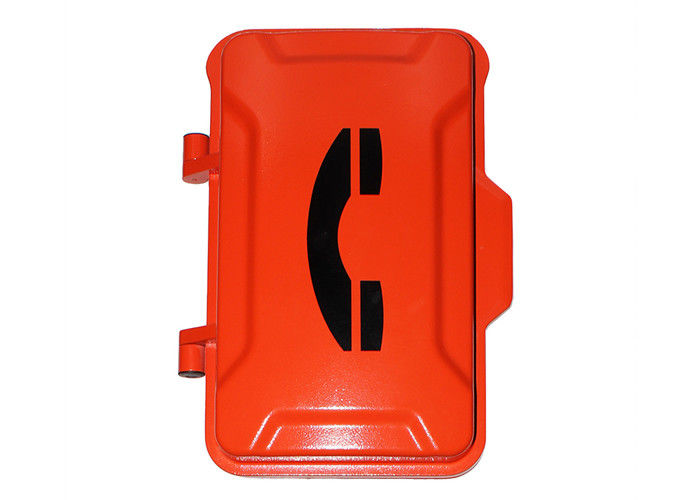

VOIP Industrial Weatherproof Telephone Audiocodec Main Chip J&R Speed Dial 1

Specification

New Design J&R Speed Dial Orange VOIP Industrial Tunnel Telephone

Casing Material
Die cast aluminium body, cold rolled steel paceplate epoxy powder coated
Colors
yellow, other colors to special order
Handset MaterialNo handset
No handset
Keypad
No Keypad
Temperature:Operating
Operating: -30°C to +65°C Storing: -40°C to +75°C
Weather Resistance
IP66-IP67
Ringing Tone
Shrill warble tone 90 dBA @ 1 metre typical
Hook switch
No hook switch
Push button
Vandal resistant stainless steel button
M.T.B.F.
Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight
Up to 6 kg depending on option
Power Input
12-24V DC

Feature

New Design J&R Speed Dial Orange VOIP Industrial Tunnel Telephone
Metal Bodied Weather and Vandal Resistant VoIP Telephone
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection
against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.
VoIP/SIP phone
Robust construction, Vandal resistant
All weather protection IP66-67
Tamper resistant fixings
Simple installation
Fast-fit terminal connection
Programmed via web interface
Non-volatile memory
Magnetic reed hook switch to reduce parts subject to wear
Voice over Internet Protocol (also called VoIP, IP Telephony,
Internet Telephony, Broadband Telephony, Broadband Phone, and Voice over Broadband) is the routing of voice conversations over the Internet or through another IP-based network.
DC 5V powered or PoE(Power Over Ethernet)
No Additional Interface Required
Web Page Configuration
Real-time Alarm Reporting
SIP Compatible
RJ45 LAN or WAN Direct Connection
Automatic Call Divert (rollover), via Memory List
Auto Answer
Multicast Capable
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Mass configuration available.
Compatible with standard SIP protocol VOIP phone systems. (Asterisk,Cisco,Mitel,Elastix,Freeswitch,MiniSipServer,Yeastar MyPBX etc.)

VOIP Industrial Weatherproof Telephone Audiocodec Main Chip J&R Speed Dial 2
Our Company

J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.

VOIP Industrial Weatherproof Telephone Audiocodec Main Chip J&R Speed Dial 3

Packing
New Design J&R Speed Dial Orange VOIP Industrial Tunnel Telephone

Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm )
Packaging materials: Pearl cotton, Carton
Net weight: 6KG
Gross weight: 7KG

VOIP Industrial Weatherproof Telephone Audiocodec Main Chip J&R Speed Dial 4
