| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR101-CB-L |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 6.2KG Gross weight: 7KG |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Product Name: | IP66-IP67 Waterproof Hotline Emergency Telephone | Material: | Aluminum Alloy |
|---|---|---|---|
| Function: | SOS | Main Chip: | Audiocodec |
| Package: | Pearl Cotton, Carton | Modle: | Analog/ SIP/ GSM/ 3G |
| Mounting: | Wall /Pillar Mounted | Ingress Protection Rating: | IP66-IP67 |
| Full Keypad: | Yes | Door Cover: | Yes |
| Handset: | Yes | Temperature: | -30°C To +65°C |
| OEM: | Yes | Warranty: | 2 Years |
| Feature1: | Hotline | Feature2: | Anti Vamdal |
| Net Weight: | 6kg | Gross Weight: | 7kg |
| High Light: | weather resistant telephone,weatherproof telephone box |
||
Specification

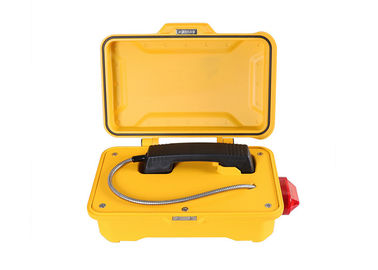

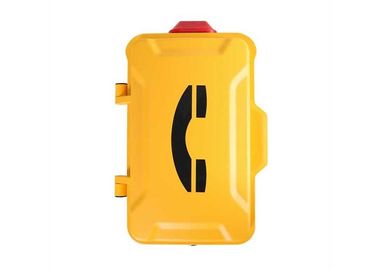

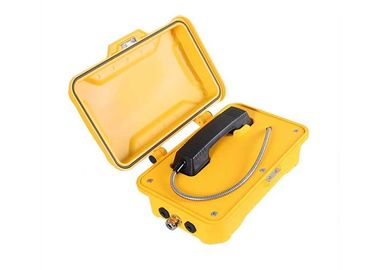

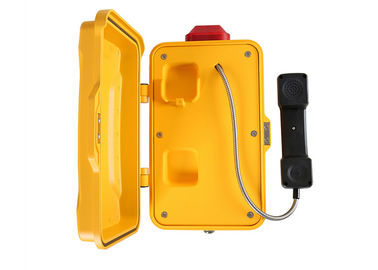

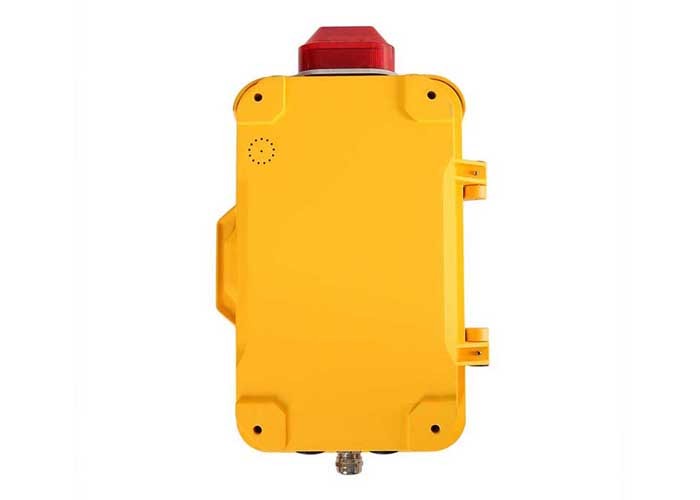

IP66-IP67 Waterproof Hotline Emergency Telephone
Analogue Version | |
Power Supply | From the analogue telephone network |
Supply Voltage | 24 VDC to 65 VDC |
Supply Current | 20 mA DC to 100 mA DC |
- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) | |
Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
SIP Version | |
Power Supply | PoE or 12V DC |
Power Consumption | -Idle:1.5W -Active:1.8W |
SIP Protocol | SIP 2.0 (RFC3261) |
Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
Communication Type | Full duplex |
- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) | |
3G Version | |
Power Supply | 12V DC |
Power Consumption | -Idle:0.3W -Active: 1.5W |
Communication Type | Full duplex |
Ringer volume | 90~95dB(A) at a distance of 1 m |
Program Method | Remote programming by SMS |
A version: - Dual-Band WCDMA/HSDPA 850/1900MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz E version: - Dual-Band UMTS/HSDPA 900/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz - Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz | |
Ambient conditions | |
Protection type | IP 66 as per EN60529 |
Operating temperature | -25°C to +70°C |
Storage temperature | -25°C to +85°C |
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airprot, transtation, bank,koisk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.
Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm )
Packaging materials: Pearl cotton, Carton
Net weight: 6KG
Gross weight: 7KG
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.
