|Place of Origin:||Shenzhen, China|
|Certification:||CE, FCC, RoHS, ATEX|
|Minimum Order Quantity:||1 Piece|
|Packaging Details:||J&R standard packing ,pearl cotton, carton|
|Delivery Time:||3-7 working days after payment|
|Payment Terms:||L/C, T/T, Western Union，PayPal|
|Supply Ability:||10000pcs per month|
|Product Name:||Intrinsic Safety Type Explosion Proof Robust Telephone In Hazardous Areas||Color:||Orange Or Customized|
|Version:||Analogue Or SIP||Installation:||Wall Mounting Or Pillar Mounting|
|Warranty:||2 Years||Main Chip:||ST|
|Door Cover:||Available||Power Supply:||POE/DC12V/Telephone Line Powered|
|Packaging Materials:||Pearl Cotton, Carton||Function:||Explosion Proof,free Dial,IP67|
ex proof telephone,
explosion proof ip phone

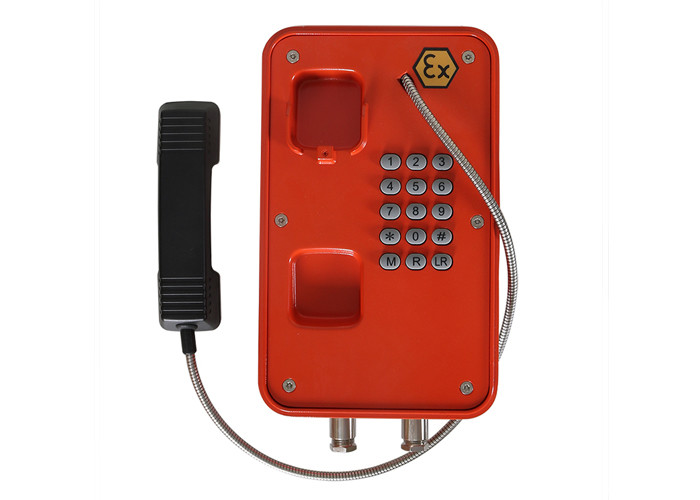

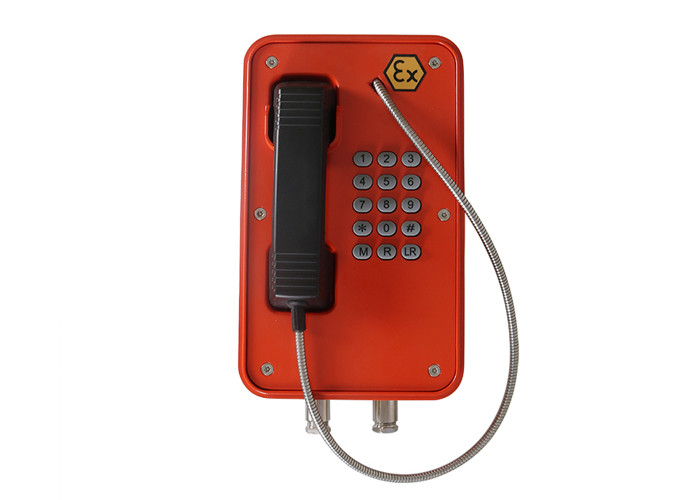

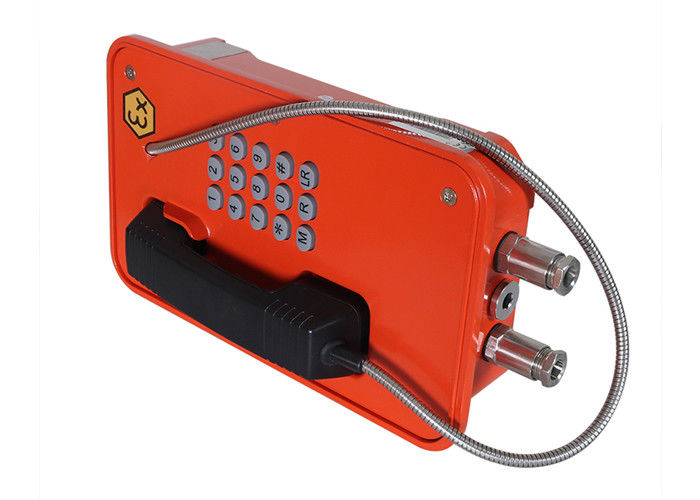

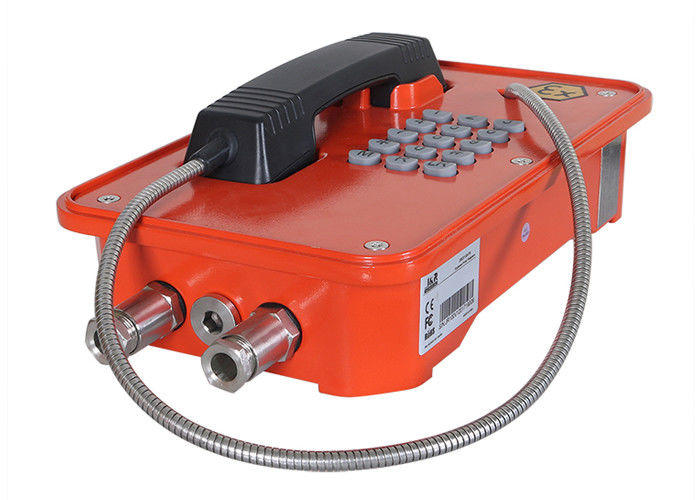

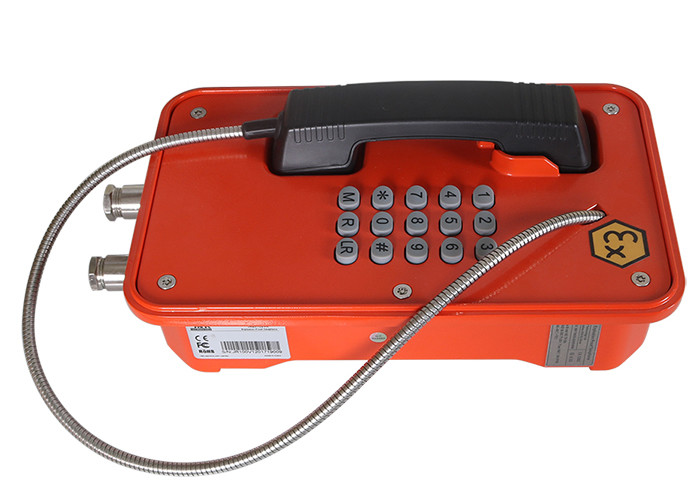

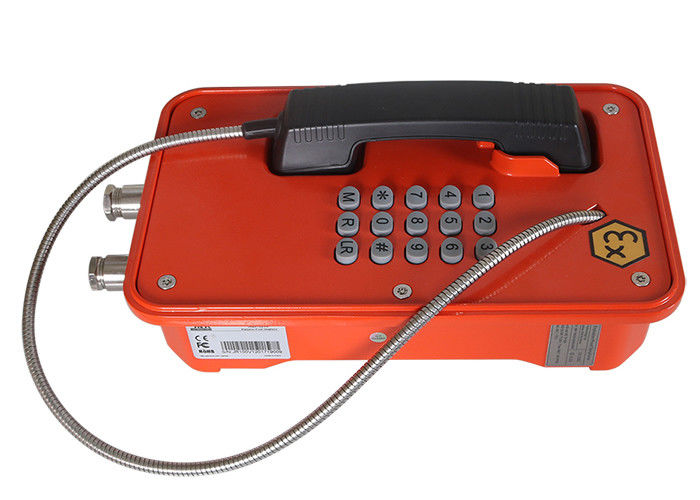

This Explosion Proof Telephone is protected in a corrosion resistant aluminum alloy die casting housing, provides the phone from the ingress of dust, dirt and fibers as well as resistance against the harmful and corrosive effects of water spray, sleet, snow and rain.
This explosion proof telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.
With explosion proof beacon and loudspeaker, the phone will ringing loudly and the lamp will flashing when there is a incoming call.
Telephone line power supply foranalogue version
POE or DC12V powered for IP version
Can be connected to any standard two-wire telephone line,including analogue PABX lines and PSTN.
Corrosion resistant aluminum alloy die casting housing(The telephone enclosure provides protection from the ingress of dust, dirt and fibers as well as resistance against the harmful and corrosive effects of water spray, sleet, snow and rain.)
With NPT conduit entries and Type 3 / IP67 environmental ratings
Certificated for Dust & Gas
Zone classification: (For explosive gas atmospheres Zone 1 and Zone 2. For IIA, IIB explosive atmosphere. For dust Zone 20, Zone 21 and Zone 22.)
Suitable for temperature class :T1 ~ T6.
Impact of protection:IK10 according to EN50102
The main keypad features 15 buttons (0-9,*,#,Redial,Mute,Last Number Redial) (Completely programmable weatherproof keypad designed to be used with gloves)
Handset with Noise canceling microphone,for effective communication from noisy areas
(Armored SS cord stands up to rough treatment,optional for black curly cord )
Hermetically sealed non-contact hook sensing switch improves system reliability
Ringing sound pressure level Approx. 90 dB(A) at 1m distance
Operating Temperatures: -40°C to + 70°C
Relative humidity high: 93% R.H at 40°C (non condensing)
Casing Material: Heavy Duty aluminium (salt & corrosion resistant)
Illuminated LCD Display: for status notifications and instructions
Flashing Light: ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality: STI approved to 0.9 (Excellent Sound)
Ringing volume: 80 dB(A) in 1m distance
Power Supply: 24V DC input, or Power over Ethernet (PoE).
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available.
Keypad Option: available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply.
Remote Management: Available with remote management software,to simplify installation and cut maintenance costs.
|Power Supply||From the analogue telephone network|
|Supply Voltage||24 VDC to 65 VDC|
|Supply Current||20 mA DC to 100 mA DC|
|Ringer Volume||- 80dB(A) at a distance of 1 m|
|- 110dB(A) at a distance of 1 m (for external horn speaker)|
|Dialing Method||DTMF mode in accordance with ITU-T recommendation Q.23.|
|Power Supply||PoE or 12V DC|
|SIP Protocol||SIP 2.0 (RFC3261)|
|Support Codec||G.711 A/U, G.722 8000/16000, G.723, G.729|
|Communication Type||Full duplex|
|Ringer volume||- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
|Protection type||IP 66 as per EN60529|
|Operating temperature||-25°C to +70°C|
|Storage temperature||-25°C to +85°C|
This easy-to-use explosion proof intrinsic safety type telephone can be used in a variety of hazardous and demanding environments.
For communication in areas which may be hazardous due to the presence of flammable gases or vapors,and/or combustile dusts.In chemical and petrochemical plants,oil refineries,mines,offshore,power generation facilities,bulk loading stations,paint and vamish manufacturing plants,grain processing and similar industries.as well as mechanical wear and tear.Telephone is ideal for security and industrial applications,as well as emergency help.
This product has the following explosion protection:
II 2G Rx e ib [ib] mb IIC T6 Gb
III 2D Ex ib [ib] tb IIIC T135 °
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22
|Unit Size||204*334*126mm (H*W*D)|
|Carton Dimension||200*300*440 mm (H*W*D)|
|Packaging materials||pearl cotton, carton|
|Net Weight||7 KG|
|Gross weight||8 KG|
|Delivery||3-10 working days after payment|
J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories. Our main products include weatherproof phones, Explosion proof telephone, prison phones, emergency phones, elevator phones , acoustic phone booths and telephone kits as well.
As a reliable supplier of different kinds of industrial telephones, we have been sharing the equipments and systems with different customers and users all over the world. The professional service and excellent quality made us enjoy the reputation over more than 80 countries, including USA, China, Thailand, Malaysia, Turkey, Israel, Greece, Spain, France, UK, Denmark, South Africa, Australia, Mexico, Colombia, Chile etc.
Dedication and profession have been our pursuing goal during any procedures of our production, not only in developing and quality controlling, but also in marketing and after sales. potential customer with special individual solutions and systems.
Choose J&R technology, choose reliable talks.
