Sip POE Powered Vandal Resistant Telephone Wall Mounted With 16 Keys

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR207-FK
Minimum Order Quantity: 1 Piece
Price: negotiable
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detail Information
Material: Cold Rolled Steel Body Color: Color Optional
Handset Material: ABS Material Handset With Stainless Steel Spiral Cord Keypad: Weather Sealed Tactile Digital Keypad
Operating Temperature: -30°C To +65°C Weather Resistance: IP55
Ringing Tone: Shrill Warble Tone 80 DBA @ 1 Metre Typical Hook Switch: Electronic / Magnetic With No Visible Moving Parts
Unit Size: 248 *195 *132(mm) Packaging Materials: Pearl Cotton, Carton
Net Weight: 2.5KG Gross Weight: 3.5KG
High Light:

vandal resistant phone


vandal proof telephone

Product Description

Product Description

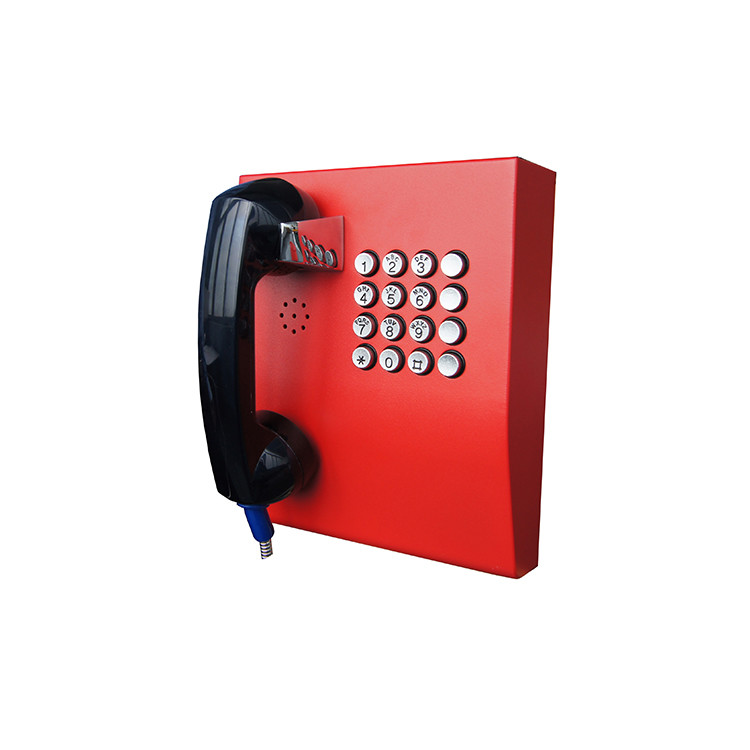

J&R wall mounted outdoor red POE line powered telephone with 16 keys
The Handest Telephone is designed to meet the needs of client who experience loss through vandalism. Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.
Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.

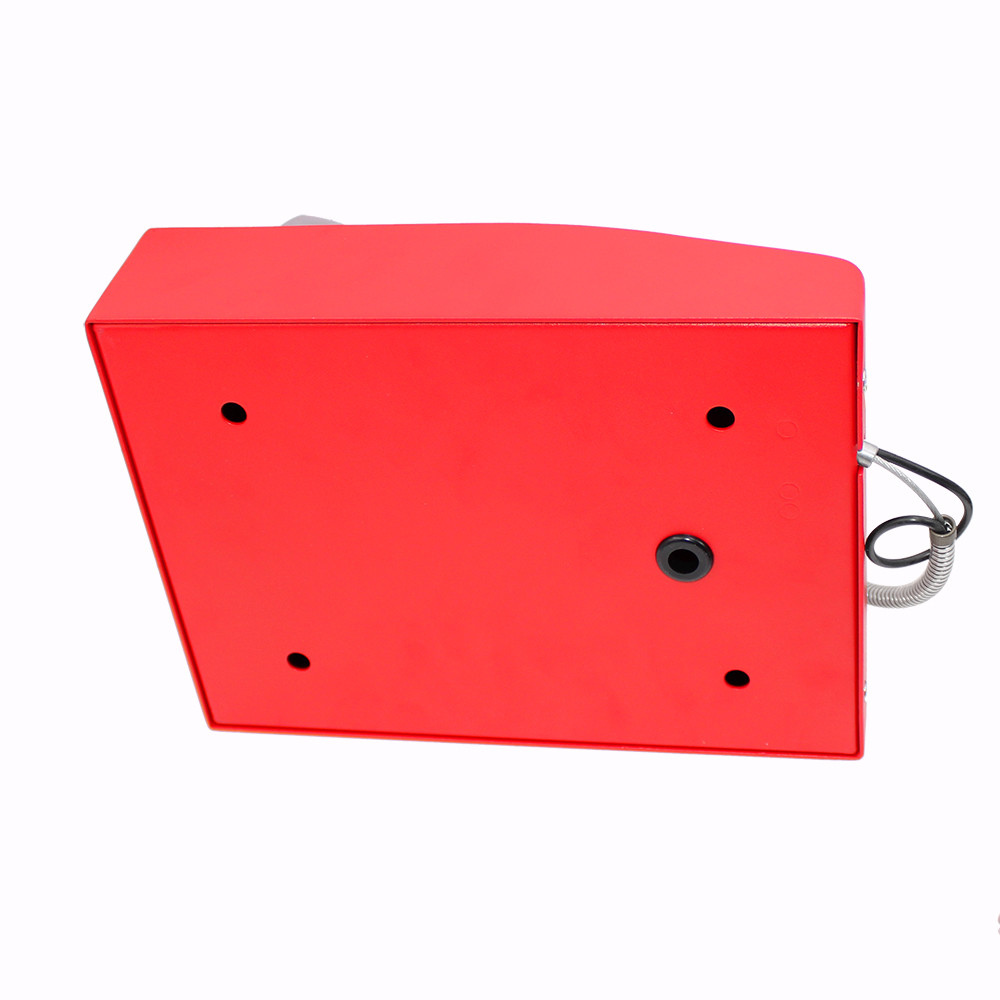

Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant

Sip POE Powered Vandal Resistant Telephone Wall Mounted With 16 Keys 0

J&R wall mounted outdoor red sip POE powered telephone with 16 keys

Operating Temperatures
-40°C to + 70°C
Relative humidity high
93% R.H at 40°C (non condensing)
Casing Material
Heavy Duty aluminium (salt & corrosion resistant)
Illuminated LCD Display
for status notifications and instructions
Flashing Light
ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality
STI approved to 0.9 (Excellent Sound)
Ringing volume
80 dB(A) in 1m distance
Power Supply
24V DC input, or Power over Ethernet (PoE)
RJ45 Ethernet socket through IP67 plug connector
Quality of Service (QoS)
ensuring optimal delivery of voice
Type of Service (ToS)
high throughput and reliability (RFC3168)
ISDN gateway compliance
connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
Inbuilt redundancy
able to make diversion calls to 2nd PBX
TR069 (Technical Report 069)
for advanced status monitoring and control
web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available
Keypad Option
available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply
Remote Management
Available with remote management software,to simplify installation and cut maintenance costs

J&R wall mounted outdoor red sip line powered telephone with 16 keys

Standard Analogue phone or VoIP phone
Robust housing, constructed of cold rolled steel with powder coated
Vandal resistant handset and armored cord
Full Rugged & durable keypad, easy to operate
Wall mounting, simple installation
Weather proof protection from IP55 to IP65
Programmable for auto-dial
External Power supply or PoE SIP phone
Inductive coupler fitted as standard for hard of hearing,RJ45 connector
CE, FCC,RoSH compliant

Sip POE Powered Vandal Resistant Telephone Wall Mounted With 16 Keys 2
Our Company

J&R is one of the most professional manufacturers of emergency telephones, industrial telephones, Explosion-proof Telephones, and public telephones in Asia. The successful cooperation with thousands of customers all over the world and the supports to hundreds of projects have made us a reliable and popular supplier of industrial phones and phone accessories. Our main products include weatherproof phones, Explosion proof telephone, prison phones, emergency phones, elevator phones , acoustic phone booths and telephone kits as well.
As a reliable supplier of different kinds of industrial telephones, we have been sharing the equipments and systems with different customers and users all over the world. The professional service and excellent quality made us enjoy the reputation over more than 80 countries, including USA, China, Thailand, Malaysia, Turkey, Israel, Greece, Spain, France, UK, Denmark, South Africa, Australia, Mexico, Colombia, Chile etc.
Dedication and profession have been our pursuing goal during any procedures of our production, not only in developing and quality controlling, but also in marketing and after sales. We serve any single potential customer with special individual solutions and systems.

Sip POE Powered Vandal Resistant Telephone Wall Mounted With 16 Keys 3
Sip POE Powered Vandal Resistant Telephone Wall Mounted With 16 Keys 4

unit size: 248 *195 *132(mm)
botton size:340*235*165(mm)
Packaging materials: pearl cotton, carton
Net weight: 2.5KG
Gross weight: 3.5KG

Sip POE Powered Vandal Resistant Telephone Wall Mounted With 16 Keys 5
Sip POE Powered Vandal Resistant Telephone Wall Mounted With 16 Keys 6
