Hotline Emergency Vandal Resistant Telephone , Wall Mounted Telephones For Public

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR202-CB
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days after payment
Payment Terms: Western Union, L/C, T/T,PAYPAL
Supply Ability: 3000 sets per month
Detail Information
Material: Stainless Steel Warranty: 2 Years
Weather Protection: IP55-IP65 Handset: ABS Material With Armored Cord
Version: Analogue/SIP/GSM Powered: Telephone Line Powered Or DC12V/POE Powered
Hotline: Yes Application: Prisons, Jail, Parking Lots, Hospitals, Guard Stations, Police Stations, Bank Halls, ATM Machines
Color: Stainless Steel G.W: 3KGS
Ringer Volume: - 110dB(A) At A Distance Of 1 M (for External Horn Speaker) Main Chip: Audiocodec
Product Name: Wall Mounting Hotline EmergencyVandal Resistant Help Line For Public
High Light:

vandal proof telephone

,

vandal proof intercom


Product Description

Product Description

Wall Mounting Hotline EmergencyVandal Resistant Help Line for Public

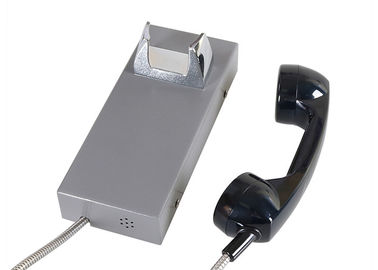

This Prison Emergency Telephone is housed in stainless steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF

Extremely easy to install. The cable entrance is on the back of the phone to prevent from artificial damage, while the keypad is weather and vandal resistant

Hotline Emergency Vandal Resistant Telephone , Wall Mounted Telephones For Public 0


Main Features

Wall Mounting Hotline EmergencyVandal Resistant Help Line for Public

1. Standard Analogue/ SIP/ GSM/ 3G Phone
2. Can be programmed remotely by tone phone or locally via keypad
3. Robust housing, constructed of stainless steel
4. Handset operation

5. Weatherproof and corrosion resisitant handset
6. Mini Size, on Flush mounting, simple intallation
7. Weather proof protection IP54-IP65
8. Inductive coupler fitted as standard for hard of hearing

9. Tamper resistant fixings
10. Fast-fit terminal connection
Hotline Emergency Vandal Resistant Telephone , Wall Mounted Telephones For Public 1




Specification

Wall Mounting Hotline EmergencyVandal Resistant Help Line for Public

TECHNICAL SPECIFICATION:
Operating Temperatures: -40°C to + 70°C
Relative humidity high: 93% R.H at 40°C (non condensing)
Casing Material: Heavy Duty aluminium (salt & corrosion resistant)
Illuminated LCD Display: for status notifications and instructions
Flashing Light: ideal for noisy areas where a ring may not be heard, or for easy location inside dark tunnels etc
Excellent Sound Quality: STI approved to 0.9 (Excellent Sound)
Ringing volume: 80 dB(A) in 1m distance
Power Supply: 24V DC input, or Power over Ethernet (PoE).
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP. Mass configuration available.
Keypad Option: available without a keypad (autodial-on-handset-lift),used to initiate a PABX Hotline or wait for reply.
Remote Management: Available with remote management software,to simplify installation and cut maintenance costs.

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply PoE or 12V DC
Power Consumption -Idle:1.5W
-Active:1.8W
SIP Protocol SIP 2.0 (RFC3261)
Support Codec G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type Full duplex
Ringer volume - 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply 12V DC
Power Consumption -Idle:0.3W
-Active: 1.5W
Communication Type Full duplex
Ringer volume 90~95dB(A) at a distance of 1 m
Program Method Remote programming by SMS
Frequency A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -25°C to +70°C
Storage temperature -25°C to +85°C


Application

Wall Mounting Hotline EmergencyVandal Resistant Help Line for Public

This vandal resistant telephone is Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.

Hotline Emergency Vandal Resistant Telephone , Wall Mounted Telephones For Public 2



Hotline Emergency Vandal Resistant Telephone , Wall Mounted Telephones For Public 3

Hotline Emergency Vandal Resistant Telephone , Wall Mounted Telephones For Public 4

PACKAGE of Rugged Airport Telephones

Wall Mounting Hotline EmergencyVandal Resistant Help Line for Public

Unit size: 300 *120 *101 (mm)

Carton size: 340 *235 *165 (mm )

Packaging materials: Pearl cotton, Carton

Net weight: 2.5 KG

Gross weight: 3 KG
