Yellow Industrial Weatherproof Telephone Simple Installation With Cast Aluminum Enclousure

China J&R Technology Limited certifications
China J&R Technology Limited certifications
I'm Online Chat Now

Yellow Industrial Weatherproof Telephone Simple Installation With Cast Aluminum Enclousure

Yellow Industrial Weatherproof Telephone Simple Installation With Cast Aluminum Enclousure
Yellow Industrial Weatherproof Telephone Simple Installation With Cast Aluminum Enclousure Yellow Industrial Weatherproof Telephone Simple Installation With Cast Aluminum Enclousure Yellow Industrial Weatherproof Telephone Simple Installation With Cast Aluminum Enclousure

Large Image :  Yellow Industrial Weatherproof Telephone Simple Installation With Cast Aluminum Enclousure

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR103-FK-H

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: negotiable
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detailed Product Description
Color: Yellow Or Customized Material: Die-casting Aluminum
Version: Analogue, SIP, GSM, 3G Warranty: 2 Years
Net Weight: 6KG Unit Size: 204 *334 *126(mm)
Packaging Materials: Pearl Cotton, Carton Keypad: Rubber Keypad
Weather Resistance: IP67 Power Input: 12-24V DC
High Light:

weatherproof telephone box

,

outdoor weatherproof telephones

Product Description

Full Keypad Yellow Weatherproof Industry Telephone with Cast Aluminum Enclousure

As a Weatherproof telephone, it is fully contained within a corrosion resistant cast aluminum waetherproof case with a door providing complete protection against dust and moisture ingress, resulting in a high reliable product with a long MTBF.



The phone is suitable for use in harsh enviornment characterized by: indoor & outdoor, Presence of dust & water ingress, Corrosive atmpsphere, varying temperature, loud ambient noise, safety ect.

Feature

Full Keypad Yellow Weatherproof Industry Telephone with Cast Aluminum Enclousure

Standard Analogue phone/SIP phone

Vandal resistant handset and cord

Weather proof protection to IP67

Full keypad with memory, 0-9 buttons can be programmed as speed dial button.

“LR” button for last number redial, “R” for flash recall, “M” for muting

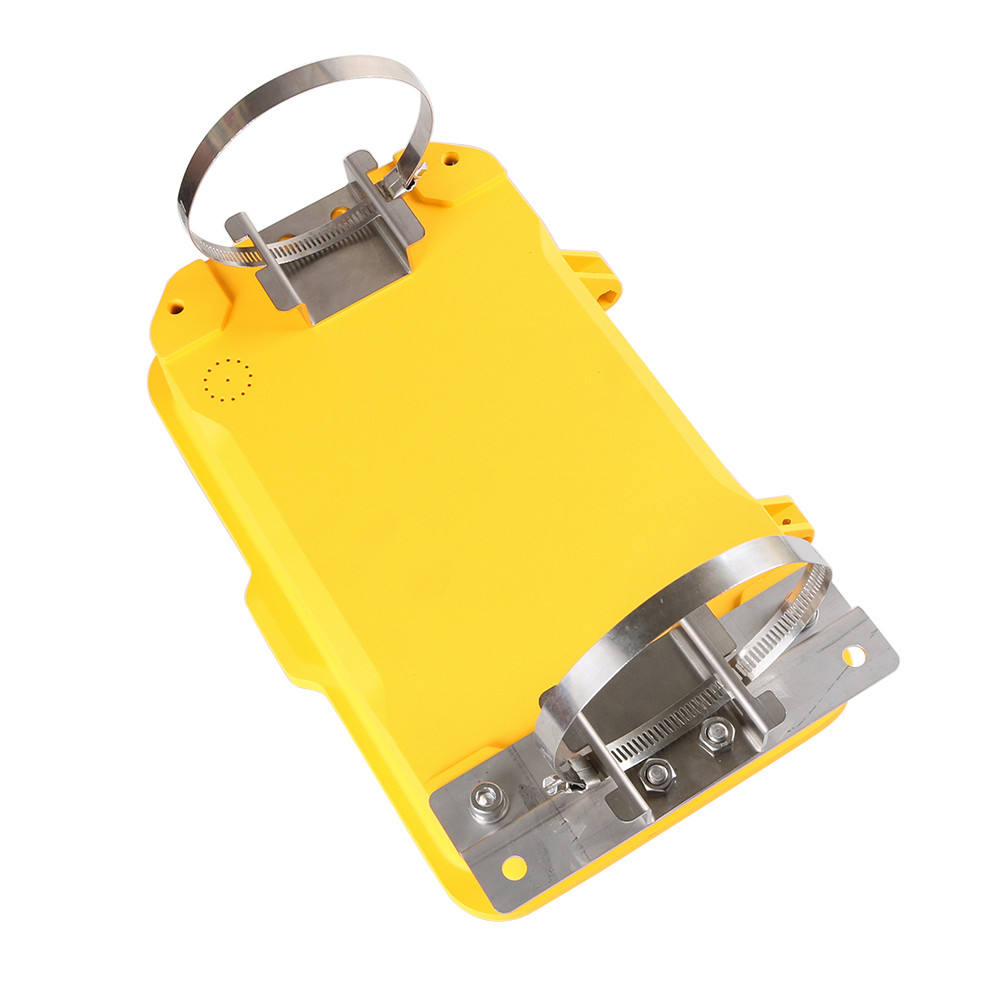

Wall mounting, simple installation

Built-in amplifier, with external ringer :15W (30W optional),for broadcasting feature

Inductive coupler fitted as standard for hard of hearing

External power supply

RJ45 port for SIP phone

CE,FCC,ROSH compliant

Yellow Industrial Weatherproof Telephone Simple Installation With Cast Aluminum Enclousure 0

Yellow Industrial Weatherproof Telephone Simple Installation With Cast Aluminum Enclousure 1





Specification

Full Keypad Yellow Weatherproof Industry Telephone with Cast Aluminum Enclousure

Casing Material

Die cast aluminium, epoxy powder coated

Colors

yellow, other colors to special order

Handset Material

Cycoloy with stainless steel spiral cord

Keypad

Rubber Keypad

Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

Weather Resistance

IP67

Ringing Tone

Shrill warble tone 80 dBA @ 1 metre typical

Hook switch

Electronic / magnetic with no visible moving parts

M.T.B.F.

Calculated to have an M.T.B.F. in excess of 50,000 hours using

Weight

Up to 6 kg depending on option

Application

Full Keypad Yellow Weatherproof Industry Telephone with Cast Aluminum Enclousure

Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airprot, transtation, bank,koisk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.

7

Yellow Industrial Weatherproof Telephone Simple Installation With Cast Aluminum Enclousure 3

Delivery

Full Keypad Yellow Weatherproof Industry Telephone with Cast Aluminum Enclousure

Unit Size: 204 *334 *126(mm)

Carton size:200*300*440( mm )

Packaging materials: pearl cotton, carton

Gross weight: 7KG

Net weight: 6KG

IMG_4080

Yellow Industrial Weatherproof Telephone Simple Installation With Cast Aluminum Enclousure 5
