Full Keypad Industrial Weatherproof Telephone Corrosion Resistance 204 * 334 * 126mm

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR101-FK-H
Minimum Order Quantity: 1 Piece
Price: negotiable
Packaging Details: J&R standard packing ,pearl cotton, carton
Delivery Time: 3-7 working days after payment
Payment Terms: L/C, T/T, Western Union,PayPal
Supply Ability: 10000pcs per month
Detail Information
Color: Yellow Or Customized Material: Die-casting Aluminum Alloy
Version: Analogue, SIP, GSM, 3G Installation: Wall Mounting
Warranty: 2 Years Weight: 6 KG
Size: 204 *334 *126(mm) Keypad: Full Keypad
Power Input: 12-24V DC Weather Resistance: IP66-IP67
Feature: With Horn
High Light:

weatherproof telephone box

,

outdoor weatherproof telephones


Product Description

Product Description

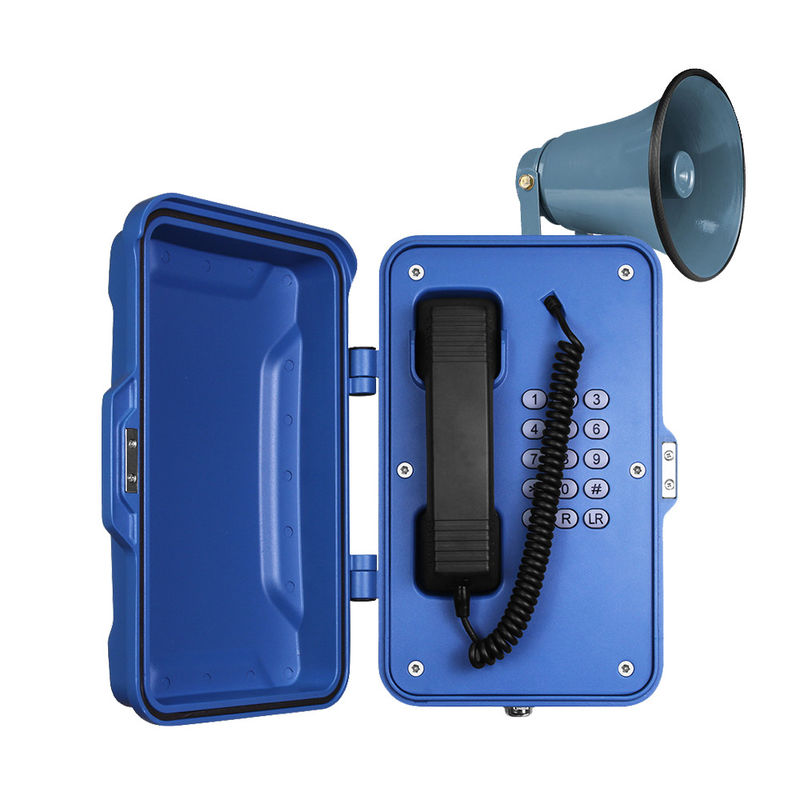

Full Keypad and Horn Waterproof Broadcasting Heavy Duty Analog Telephone

As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

The Industry Telephone stands for: Telephone under rough environmental conditions with the highest degree of safety in industry areas.

Full Keypad Industrial Weatherproof Telephone Corrosion Resistance 204 * 334 * 126mm 0

Application

Full Keypad and Horn Waterproof Broadcasting Heavy Duty Analog Telephone

Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical

plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.

Full Keypad Industrial Weatherproof Telephone Corrosion Resistance 204 * 334 * 126mm 1

Full Keypad Industrial Weatherproof Telephone Corrosion Resistance 204 * 334 * 126mm 2

Specification

Full Keypad and Horn Waterproof Broadcasting Heavy Duty Analog Telephone



Casing Material
Die cast aluminium, epoxy powder coated
Colors
Yellow, other colors to special order
Handset Material
Cycoloy with stainless steel spiral cord
Keypad
Rubber Keypad
Temperature
Operating: -30°C to +65°C
Storing: -40°C to +75°C
Weather Resistance
IP66-IP67
Ringing Tone
Shrill warble tone 120 dBA @ 1 metre typical
Hook switch
Electronic / magnetic with no visible moving parts
M.T.B.F.
Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight
Up to 6 kg depending on option



Feature

Full Keypad and Horn Waterproof Broadcasting Heavy Duty Analog Telephone

Standard Analogue phone/SIP phone

Vandal resistant handset and cord

Weather proof protection to IP67

Full keypad with memory, 0-9 buttons can be programmed as speed dial button.

“LR” button for last number redial,“R” for flash recall,“M” for muting

Wall mounting, simple installation

Built-in amplifier, with external ringer :15W

(30W optional),for broadcasting feature

External power supply

RJ45 port for SIP phone

CE,FCC,ROSH compliant

Full Keypad Industrial Weatherproof Telephone Corrosion Resistance 204 * 334 * 126mm 3

Package

Full Keypad and Horn Waterproof Broadcasting Heavy Duty Analog Telephone

unit size

204 *334 *126(mm)

Carton size 200*300*440(mm)
Package Materials pearl cotton, carton
Gross Weight 7KG
Net Weight 6KG

Full Keypad Industrial Weatherproof Telephone Corrosion Resistance 204 * 334 * 126mm 4

Our Company

J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.

Full Keypad Industrial Weatherproof Telephone Corrosion Resistance 204 * 334 * 126mm 5

Full Keypad Industrial Weatherproof Telephone Corrosion Resistance 204 * 334 * 126mm 6
