| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR104-2B |
| Minimum Order Quantity: | 1 Piece |
| Price: | negotiable |
| Packaging Details: | J&R standard packing ,pearl cotton, carton |
| Delivery Time: | 3-7 working days after payment |
| Payment Terms: | L/C, T/T, Western Union，PayPal |
| Supply Ability: | 10000pcs per month |
| Color: | Yellow Or Customized | Material: | Die-casting Aluminum Alloy |
|---|---|---|---|
| Version: | Analogue, SIP, GSM, 3G | Installation: | Wall Mounting |
| Warranty: | 2 Years | Weight: | 5 KG |
| Size: | 204 *334 *74(mm) | Keypad: | No Keypad |
| Power Input: | 12-24V DC | Weather Resistance: | IP66 |
| High Light: | weatherproof telephone box,outdoor weatherproof telephones |
||

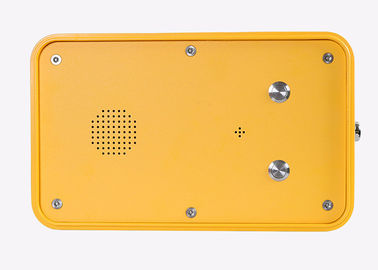

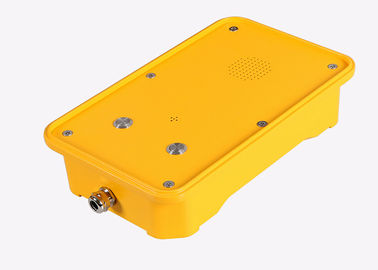

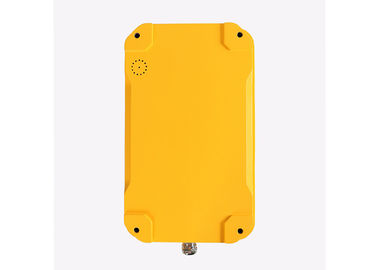

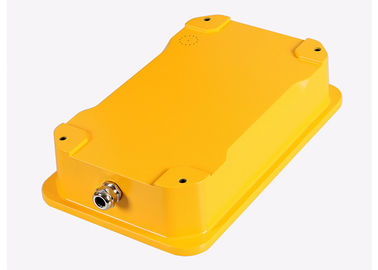

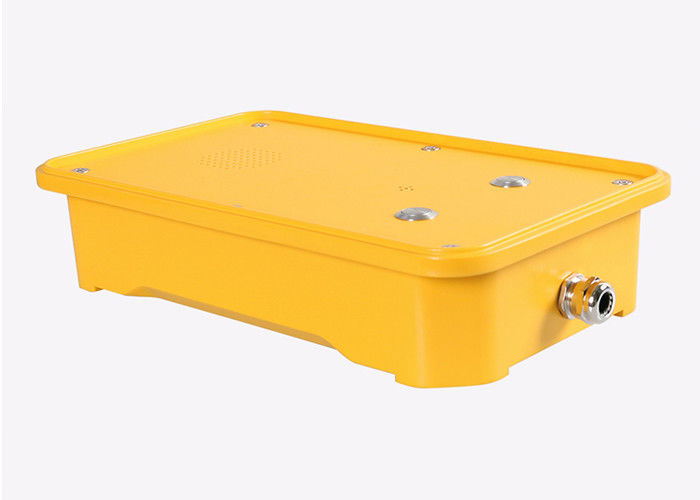

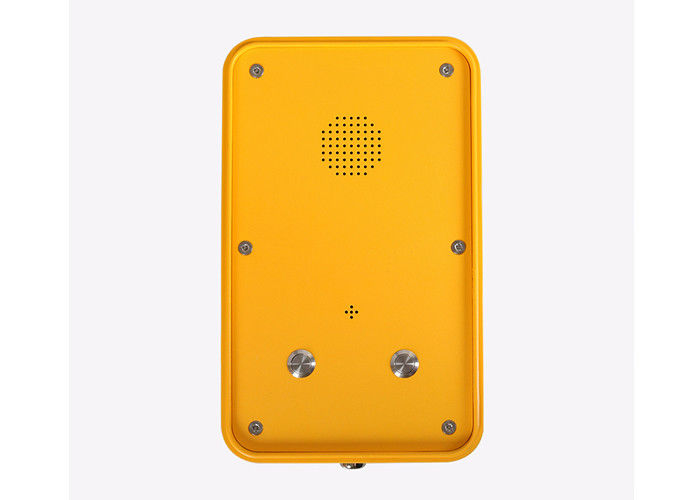

Two Buttons of Speed Dial Outdoor IP Wall Mounting Waterproof Telephone
The industrial telephones are fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.
The industrial Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions.
Two Buttons of Speed Dial Outdoor IP Wall Mounting Waterproof Telephone
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical
plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.
Two Buttons of Speed Dial Outdoor IP Wall Mounting Waterproof Telephone
|
Casing Material
|
Die cast aluminium body, cold rolled steel paceplate epoxy powder coated
|
|
Colors
|
yellow, other colors to special order
|
|
Handset MaterialNo handset
|
No handset
|
|
Keypad
|
No Keypad
|
|
Temperature:Operating
|
Operating: -30°C to +65°C Storing: -40°C to +75°C
|
|
Weather Resistance
|
IP66-IP67
|
|
Ringing Tone
|
Shrill warble tone 90 dBA @ 1 metre typical
|
|
Hook switch
|
No hook switch
|
|
Push button
|
Vandal resistant stainless steel button
|
|
M.T.B.F.
|
Calculated to have an M.T.B.F. in excess of 50,000 hours using
|
|
Weight
|
Up to 6 kg depending on option
|
|
Power Input
|
12-24V DC
|
Two Buttons of Speed Dial Outdoor IP Wall Mounting Waterproof Telephone
Metal Bodied Weather and Vandal Resistant VoIP Telephone
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection
against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.
VoIP/SIP phone
Robust construction, Vandal resistant
All weather protection IP66-67
Tamper resistant fixings
Simple installation
Fast-fit terminal connection
Programmed via web interface
Non-volatile memory
Magnetic reed hook switch to reduce parts subject to wear
Voice over Internet Protocol (also called VoIP, IP Telephony,
Internet Telephony, Broadband Telephony, Broadband Phone, and Voice over Broadband) is the routing of voice conversations over the Internet or through another IP-based network.
DC 5V powered or PoE(Power Over Ethernet)
No Additional Interface Required
Web Page Configuration
Real-time Alarm Reporting
SIP Compatible
RJ45 LAN or WAN Direct Connection
Automatic Call Divert (rollover), via Memory List
Auto Answer
Multicast Capable
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Mass configuration available.
Compatible with standard SIP protocol VOIP phone systems. (Asterisk,Cisco,Mitel,Elastix,Freeswitch,MiniSipServer,Yeastar MyPBX etc.)
Two Buttons of Speed Dial Outdoor IP Wall Mounting Waterproof Telephone
| unit size | 204*334*74(mm) |
| Carton size | 200*300*400(mm) |
| Package Materials | pearl cotton, carton |
| Gross Weight | 6KG |
| Net Weight | 5KG |
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.
