| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR102-SC |
| Minimum Order Quantity: | 1 |
| Price: | Reconsideration |
| Packaging Details: | Pearl cotton, Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Color: | Red Or Customized | Material: | Aluminum Alloy |
|---|---|---|---|
| Function: | Waterproof | Usage: | Outdoor |
| Package: | Pearl Cotton, Carton | Modle: | Analog/ SIP/ GSM/ 3G |
| Mounting: | Wall /Pillar Mounted | Ingress Protection Rating: | IP66-IP67 |
| Full Keypad: | No | Door Cover: | Yes |
| Feature: | Speed Dial | Handset: | Handfree |
| Temperature: | -30°C To +65°C | OEM: | Yes |
| Warranty: | 2 Years | ||
| High Light: | weatherproof telephone box,outdoor weatherproof telephones |
||

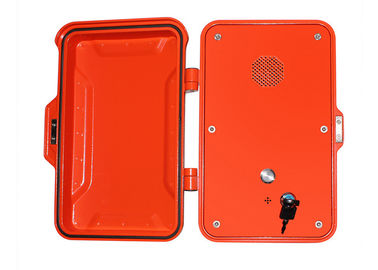

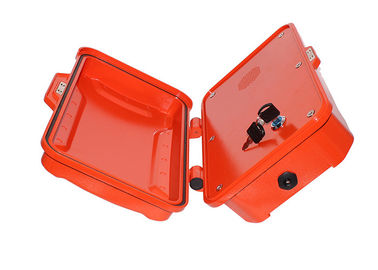

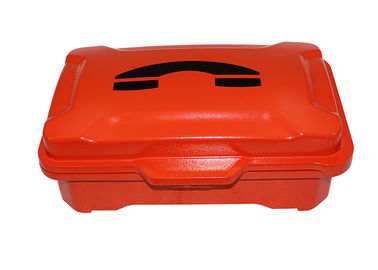

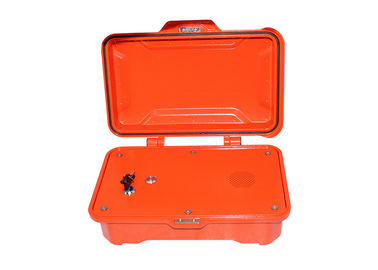

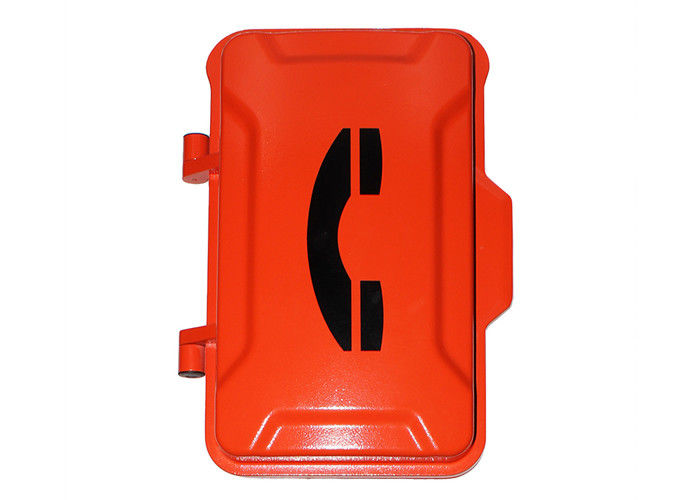

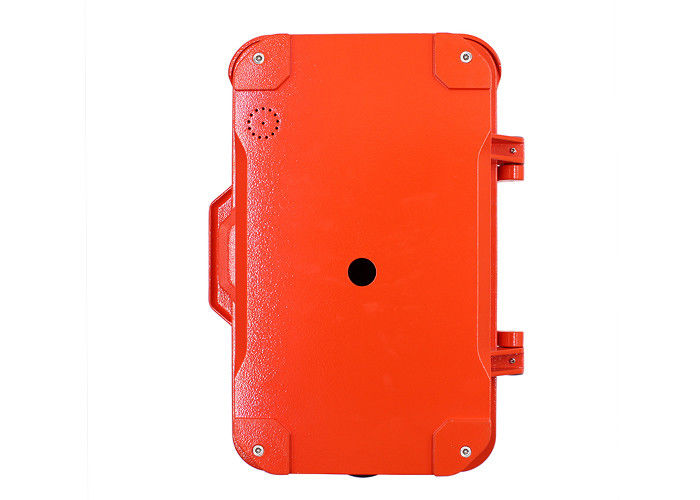

Red Hand-free GSM Public Emergency Hotline Telephone in Industry
Product Description
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
JR102-SC are hans-free and with one button for speed dial. It is easy to install and use, it effectively avoids the bad condition of the receiver. And it with a door cover to protect the phone increases telephone service life.
Specification
| Casing Material | Die cast aluminium body, cold rolled steel paceplate epoxy powder coated |
| Colors |
yellow, other colors to special order |
| Handset Material | No handset |
| Keypad | No Keypad |
| Temperature |
Operating: -30°C to +65°C Storing: -40°C to +75°C |
| Weather Resistance |
IP66 |
| Ringing Tone | Shrill warble tone 90 dBA @ 1 metre typical |
| Hook switch | No hook switch |
| Push button | Vandal resistant stainless steel button |
| M.T.B.F. | Calculated to have an M.T.B.F. in excess of 50,000 hours using |
| Weight | Up to 6 kg depending on option |
Application
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.
Feature
Power Input:12-24V DC
Port: WAN: 10/100Base- T RJ-45 for LAN, Auto MDIX
LAN: 10/100Base- T RJ-45 for PC, Auto MDIX
Power Consumption:Idle:1.5W/ Active:1.8W
Voice Features
Support SIP 2.0 (RFC3261)
Codec: G.711A/u, G.7231 high/low, G.729, G.722
Echo cancellation: Support G.168 and hand-free can support 96ms
Supports full duplex
SIP support SIP domain, SIP authentication(none, basic,MD5),DNS name of server
DTMF:SIP info, DTMF Relay,RFC2833
Call control features: Flexible dial map, support hot-line
Network Features
WAN/LAN: support Bridge mode
Support static IP address
Support DHCP get IP on WAN port
Support VLAN
Support web config
| Unit size | 339*246*126 (mm) |
| Carton size | 200*300*440 (mm ) |
| Packaging materials | Pearl cotton, Carton |
| Net weight | 6KG |
| Gross weight |
7KG |
