Home > products > Industrial Weatherproof Telephone > Anti Vandal Industrial Weatherproof Telephone IP66 - IP67 Ingress Protection Rating

Anti Vandal Industrial Weatherproof Telephone IP66 - IP67 Ingress Protection Rating

Product Details

Place of Origin: Shenzhen, China

Brand Name: J&R

Certification: CE, FCC, RoHS, ISO9001

Model Number: JR101-CB

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Reconsideration

Packaging Details: Pearl cotton, Carton

Delivery Time: 3-5 working days

Payment Terms: L/C, T/T

Supply Ability: 3000 sets per month

Get Best Price
Product Details
High Light:

weatherproof telephone box

,

outdoor weatherproof telephones

Color:
Yellow Or Customized
Material:
Aluminum Alloy
Function:
Waterproof
Usage:
Outdoor
Package:
Pearl Cotton, Carton
Modle:
Analog/ SIP/ GSM/ 3G
Mounting:
Wall /Pillar Mounted
Ingress Protection Rating:
IP66-IP67
Full Keypad:
No
Door Cover:
Yes
Feature:
Hot Line
Handset:
Yes
Temperature:
-30°C To +65°C
OEM:
Yes
Warranty:
2 Years
Color:
Yellow Or Customized
Material:
Aluminum Alloy
Function:
Waterproof
Usage:
Outdoor
Package:
Pearl Cotton, Carton
Modle:
Analog/ SIP/ GSM/ 3G
Mounting:
Wall /Pillar Mounted
Ingress Protection Rating:
IP66-IP67
Full Keypad:
No
Door Cover:
Yes
Feature:
Hot Line
Handset:
Yes
Temperature:
-30°C To +65°C
OEM:
Yes
Warranty:
2 Years
Product Description

Aluminum Automatic Dialing IP66 Analog Waterproof Anti Vandal Phone with Yellow Color



Product Description

As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door.

The unique robust handset is manufacture from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industry use.

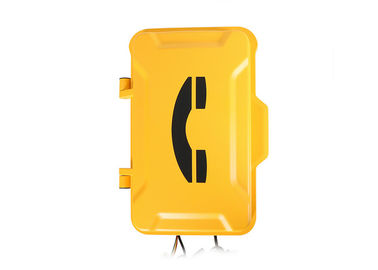

Anti Vandal Industrial Weatherproof Telephone IP66 - IP67 Ingress Protection Rating 0

Specification

Power Input:12-24V DC

Port: WAN: 10/100Base- T RJ-45 for LAN, Auto MDIX

         LAN: 10/100Base- T RJ-45 for PC, Auto MDIX

Power Consumption:Idle:1.5W/ Active:1.8W

Voice Features

Support SIP 2.0 (RFC3261)

Codec: G.711A/u, G.7231 high/low, G.729, G.722

Echo cancellation: Support G.168 and hand-free can support 96ms

Supports full duplex

SIP support SIP domain, SIP authentication(none, basic,MD5),DNS name of server

DTMF:SIP info, DTMF Relay,RFC2833

Call control features: Flexible dial map, support hot-line

Network Features

WAN/LAN: support Bridge mode

Support static IP address

Support DHCP get IP on WAN port

Support VLAN

Support web config

Application

Ideal for public place outdoor or somewhere dusty, full of corrosive gases. For example, bank, park, station, railway, power stations, heavy industry.

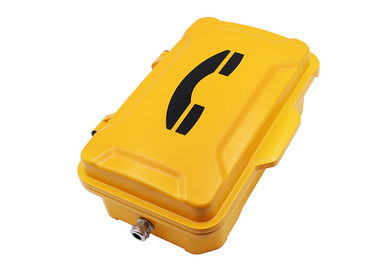

Anti Vandal Industrial Weatherproof Telephone IP66 - IP67 Ingress Protection Rating 1

Feature

Casing Material Die cast aluminium, epoxy powder coated
Colors Yellow, other colors to special order
Handset Material Cycoloy with stainless steel spiral cord
Keypad No Keypad
Temperature

Operating: -30°C to +65°C

Storing: -40°C to +75°C

Weather Resistance IP67
Ringing Tone Shrill warble tone 80 dBA @ 1 metre typical
Hook switch Electronic / magnetic with no visible moving parts
M.T.B.F. Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight Up to 7 kg depending on option

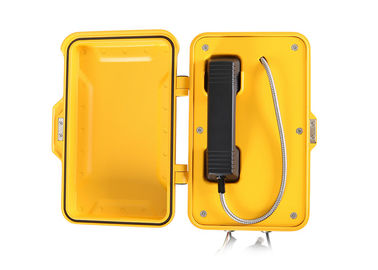

Anti Vandal Industrial Weatherproof Telephone IP66 - IP67 Ingress Protection Rating 2

Packing
Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm )
Packaging materials: Pearl cotton, Carton
Net weight: 6KG
Gross weight: 7KG

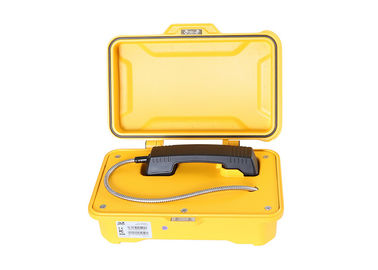

Anti Vandal Industrial Weatherproof Telephone IP66 - IP67 Ingress Protection Rating 3
Our Company
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.

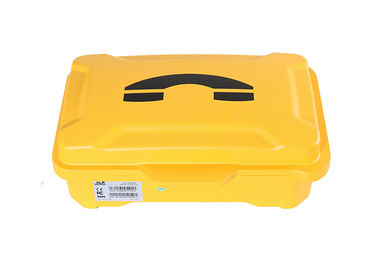

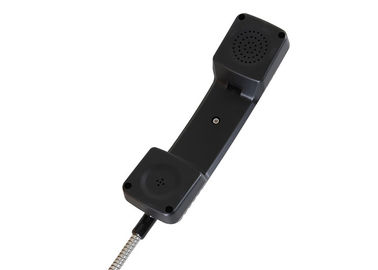

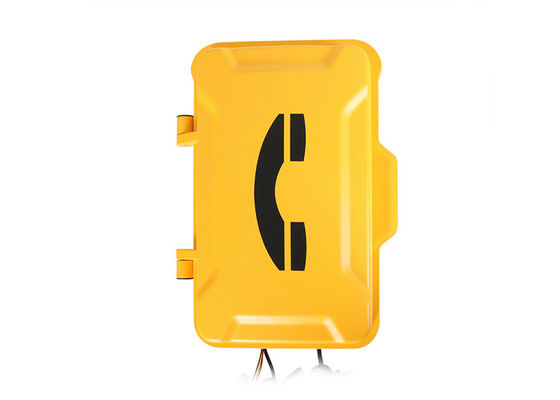

Anti Vandal Industrial Weatherproof Telephone IP66 - IP67 Ingress Protection Rating 4Anti Vandal Industrial Weatherproof Telephone IP66 - IP67 Ingress Protection Rating 5Anti Vandal Industrial Weatherproof Telephone IP66 - IP67 Ingress Protection Rating 6
