Aluminum Enclosure Outdoor Weatherproof Telephones With Tamper Resistant Fixings

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR101-FK
Minimum Order Quantity: 1
Price: Reconsideration
Packaging Details: Unit size: 339*246*126 (mm) Carton size: 200*300*440 (mm ) Packaging materials: Pearl cotton, Carton Net weight: 6.2KG Gross weight: 7KG
Delivery Time: 3-5 working days
Supply Ability: 3000 sets per month
Detail Information
Color: Yellow Or Customized Material: Aluminum Alloy
Function: Waterproof Usage: Outdoor
Package: Pearl Cotton, Carton Modle: Analog/ SIP/ GSM/ 3G
Mounting: Wall /Pillar Mounted Ingress Protection Rating: IP66-IP67
Full Keypad: Yes Door Cover: Yes
High Light:

weatherproof telephone box

,

outdoor weatherproof telephones


Product Description

JR101-FK Aluminum Enclosure Industrial Marine Telephone VOIP Orange Phone
Product Description
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

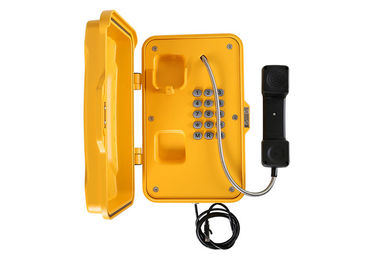

Aluminum Enclosure Outdoor Weatherproof Telephones With Tamper Resistant Fixings 0

Specification

Analogue Version
Power Supply
From the analogue telephone network
Supply Voltage
24 VDC to 65 VDC
Supply Current
20 mA DC to 100 mA DC

Ringer Volume



- 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)



Dialing Method
DTMF mode in accordance with ITU-T recommendation Q.23.
SIP Version
Power Supply
PoE or 12V DC
Power Consumption
-Idle:1.5W
-Active:1.8W
SIP Protocol
SIP 2.0 (RFC3261)
Support Codec
G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type
Full duplex

Ringer volume
- 90~95dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
3G Version
Power Supply
12V DC
Power Consumption
-Idle:0.3W
-Active: 1.5W
Communication Type
Full duplex
Ringer volume
90~95dB(A) at a distance of 1 m
Program Method
Remote programming by SMS




Frequency
A version:
- Dual-Band WCDMA/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
E version:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
J version:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Ambient conditions
Protection type
IP 66 as per EN60529
Operating temperature
-25°C to +70°C
Storage temperature
-25°C to +85°C

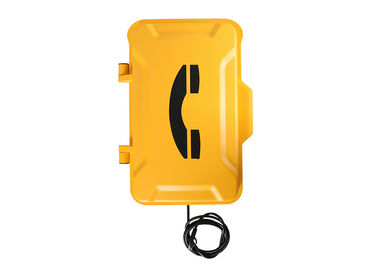

Aluminum Enclosure Outdoor Weatherproof Telephones With Tamper Resistant Fixings 1Application
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant indoor: Airport, bank, kiosk, elevator, university, hotel, hospital, plant, oil and gas,Outdoor station,Bridge,Mine, Army,and related industrial application, etc.

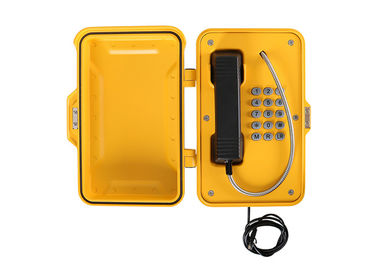

Aluminum Enclosure Outdoor Weatherproof Telephones With Tamper Resistant Fixings 2
Feature

Metal Bodied Weather and Vandal Resistant VoIP Telephone
As a weatherproof telephone, it is fully contained within a corrosion resistant cast aluminium weatherproof case with a door providing complete protection
against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
Ideal for Metro, Railway, Highway side, Marine, Mining, Tunnels, Steel Plant,Chemical plant,Power plant and related industrial application, etc.
VoIP/SIP phone
Robust construction, Vandal resistant
All weather protection IP66-67
Tamper resistant fixings
Simple installation
Fast-fit terminal connection
Programmed via web interface
Non-volatile memory
Magnetic reed hook switch to reduce parts subject to wear
Voice over Internet Protocol (also called VoIP, IP Telephony,
Internet Telephony, Broadband Telephony, Broadband Phone, and Voice over Broadband) is the routing of voice conversations over the Internet or through another IP-based network.
DC 5V powered or PoE(Power Over Ethernet)
No Additional Interface Required
Web Page Configuration
Real-time Alarm Reporting
SIP Compatible
RJ45 LAN or WAN Direct Connection

Automatic Call Divert (rollover), via Memory List
Auto Answer
Multicast Capable
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Mass configuration available.
Compatible with standard SIP protocol VOIP phone systems. (Asterisk,Cisco,Mitel,Elastix,Freeswitch,MiniSipServer,Yeastar MyPBX etc.)

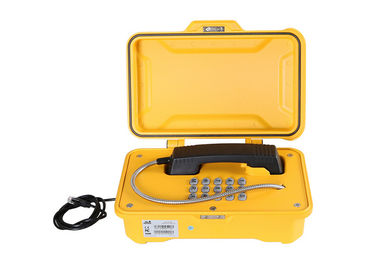

Aluminum Enclosure Outdoor Weatherproof Telephones With Tamper Resistant Fixings 3

Packing
Unit size: 339*246*126 (mm)
Carton size: 200*300*440 (mm )
Packaging materials: Pearl cotton, Carton
Net weight: 6.2KG
Gross weight: 7KG

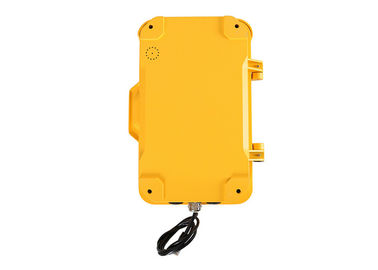

Aluminum Enclosure Outdoor Weatherproof Telephones With Tamper Resistant Fixings 4Aluminum Enclosure Outdoor Weatherproof Telephones With Tamper Resistant Fixings 5Certification
Aluminum Enclosure Outdoor Weatherproof Telephones With Tamper Resistant Fixings 6Our Company
J&R is China based design and manufacturer of rugged communications equipment. Our telephones and systems work, and last, in environments where regular products wouldn't.
(All of our phone model avaliable for Analogue version,IP/SIP versio,GSM/3G version)
After well study your information,we sincerely hope to enter into partnership with your esteemed compnay.and we hope to serve you and cooperate with you for all of our product range in your market.
We could offer you all of our product range with ODM&OEM solution to meet your demands and requirement well.
and we will support you with the best product solution and costeffective solution to support you with the project requirement and marketing proposal.
