Vandal Proof Phone / Vandal Resistant Telephone With Volume Control Button For Prison

Vandal Proof Phone / Vandal Resistant Telephone With Volume Control Button For Prison

Brand Name:	J&R
Model Number:	JR201-FK-VC
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, ISO9001

Armored Cord:

Yes

Material:

Cold Rolled Steel

Magnetic Hook:

Yes

Warranty:

2 Years

Weather Protection:

IP55-IP65

Brand:

J&R

Volume Control Button:

Yes

Metal Keypad:

Yes

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

vandal proof telephone

vandal proof intercom

Product Description

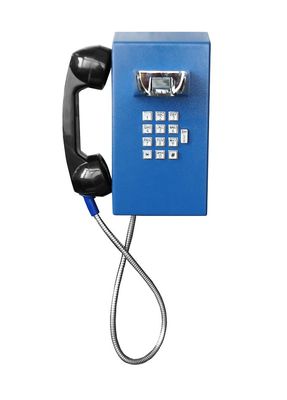

Vandal Proof handset Telephone with Volume Control Button for Prison, Jail

MAIN FEATURES of the Vandal Proof handset Telephone with Volume Control Button for Prison, Jail

- Standard Analogue phone, or VoIP/SIP Phone
- Weather protection IP54-IP65
- Tamper resistant fixings, Simple installation
- Fast-fit terminal connection

- Mechanical hookswitch or Magnetic reed hook switch to reduce parts subject to wear
- Full Keypad with volume control button
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory

- Weatherproof and corrosion resistant handset
- Stainless steel armoured handset cord
- Built-in user controlled volume “LOUD” button for ADA mandated volume control (user must have control of volume amplification AND volume must reset to normal with hang up to meet ADA requirements).

- Telephone line powered for Analog phone
- DC 12V powered or PoE
- Quality of Service (QoS): ensuring optimal delivery of voice
- Type of Service (ToS): high throughput and reliability (RFC3168)

- SIP (Session Initiation Protocol) RFC3261
- Inbuilt redundancy: able to make diversion calls to 2nd PBX
- TR069 (Technical Report 069): for advanced status monitoring and control

- Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
- Mass configuration available.
- CE, FCC, ISO9001, RoHS compliant

TECHNICAL PARAMETERS of the Vandal Proof handset Telephone with Volume Control Button for Prison, Jail

SIP Version
Power Supply	PoE or 12V DC
Power Consumption	-Idle: 1.5W -Active: 1.8W
SIP Protocol	SIP 2.0 (RFC3261)
Support Codec	G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type	Full duplex
Ringer volume	- 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

PACKAGE of the Vandal Proof handset Telephone with Volume Control Button for Prison, Jail

Unit size: 247 *130 *132 (mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 3 KG

Gross weight: 4 KG

Vandal Proof Phone / Vandal Resistant Telephone With Volume Control Button For Prison 0

Vandal Proof Phone / Vandal Resistant Telephone With Volume Control Button For Prison 1

Vandal Proof Phone / Vandal Resistant Telephone With Volume Control Button For Prison 2

Vandal Proof Phone / Vandal Resistant Telephone With Volume Control Button For Prison 3
