Water Resistant Industrial Weatherproof Telephone Auto - Dial Telephone

Basic Information
Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001:2015
Model Number: JR103-CB
Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Detail Information
Material: Aluminum Alloy Color: Blue, Yellow (or Optional)
Power Supply: Analog, VoIP, GSM/3G Weather Resistant: IP66
Warranty: 2 Years Size: 246 *339 *109 (mm)
Net Weight: 6 KG Installation: Wall/ Pillar Mounting
High Light:

weather resistant telephone


weatherproof telephone box

Product Description

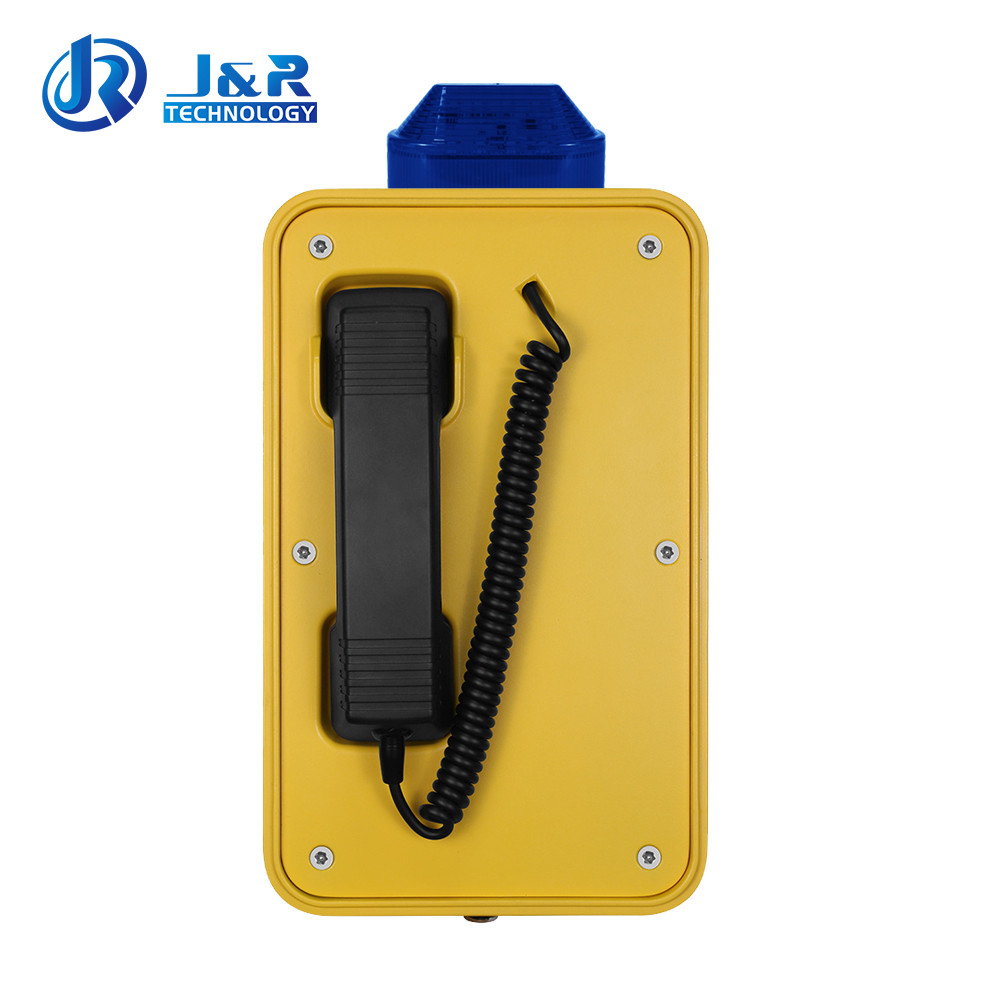

Waterproof Industrial Auto-dial Telephone with Flashing Light


This Weatherproof hotline telephone is fully contained within a corrosion resistant cast aluminium weatherproof case, which providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.


Once pick up the handset, it will auto-dial the reserve number for emergency, and the light will flashing when there is an incoming call.


Main Features:

- Standard SIP/ VoIP phone
- Vandal resistant handset with armored cord (Stretched Cable is optional)

- Weather proof protection to IP66


- Power supply: PoE or 12V DC

- RJ45 port connector

- Wall / Pillar mounted, simple installation

- CE, FCC, RoHS, ISO9001 compliant


- Hands free operation

- Programmed for auto-dial
- The lamp will flashing when there is an incoming call.
- With auto-answer feature after 5 ringing, Auto- release the line when the other side cut off the line.



This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.


Technical Parameters

SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle:1.5W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)
Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



Unit Size:    339*246*109 mm (H *W * D)
Carton Dimension:    200 * 300 *440 mm (H * W * D)
Packaging materials:     pearl cotton, carton
Net Weight:    5 KG
Gross weight:    6 KG


Water Resistant Industrial Weatherproof Telephone Auto - Dial Telephone 0

Water Resistant Industrial Weatherproof Telephone Auto - Dial Telephone 1
