| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, ISO9001 |
| Model Number: | JR309-FK |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 2-5 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Stainless Steel | Warranty: | 2 Years |
|---|---|---|---|
| Weather Protection: | IP65 | Unit Size: | 150*240*32 (mm) |
| Weight: | 3 KG | Power Supply: | Phone Line Powered |
| Keypad: | 12-key Metal Keypad | Customized: | Support Customized Size |
| High Light: | vandal proof telephone,vandal proof intercom |
||
Flush Mounted Oxidation Resistance Waterproof Clean Room Telephone with 12-key
Housed in stainless steel box, and with flush mounted, this telephone not only can resist the frequently washing, but also the peroxide on the Clean room. The IP rating up to IP65, which offer a well pretection to the telephone from the water, and can ensure the long time communications.
MAIN FEATURES of the Flush Mounted Oxidation Resistance Waterproof Clean Room Telephone with 12-key
- Standard Analog phone
- Robust housing, constructed of stainless steel
- Vandal resistant metal button
- Rugged keypad with 12-key
- Hands free operation
- In wall mounted, simple installation
- Weather proof protection: up to IP65
- Phone line powered (Analog)
- 4 X Tamper proof screws for mounting
- CE, FCC, RoHS, ISO9001 compliant
APPLICATIONS of the Flush Mounted Oxidation Resistance Waterproof Clean Room Telephone with 12-key
Ideal for Clean room, Sterile areas, Elevators/Lifts, Parking lots, Prisons, Railway/Metro platforms, Hospitals, Police stations, ATM machines, Stadiums, Campus, Shopping malls, Doors, Hotels, outside building etc.
TECHNICAL PARAMETERS of the Flush Mounted Oxidation Resistance Waterproof Clean Room Telephone with 12-key
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |

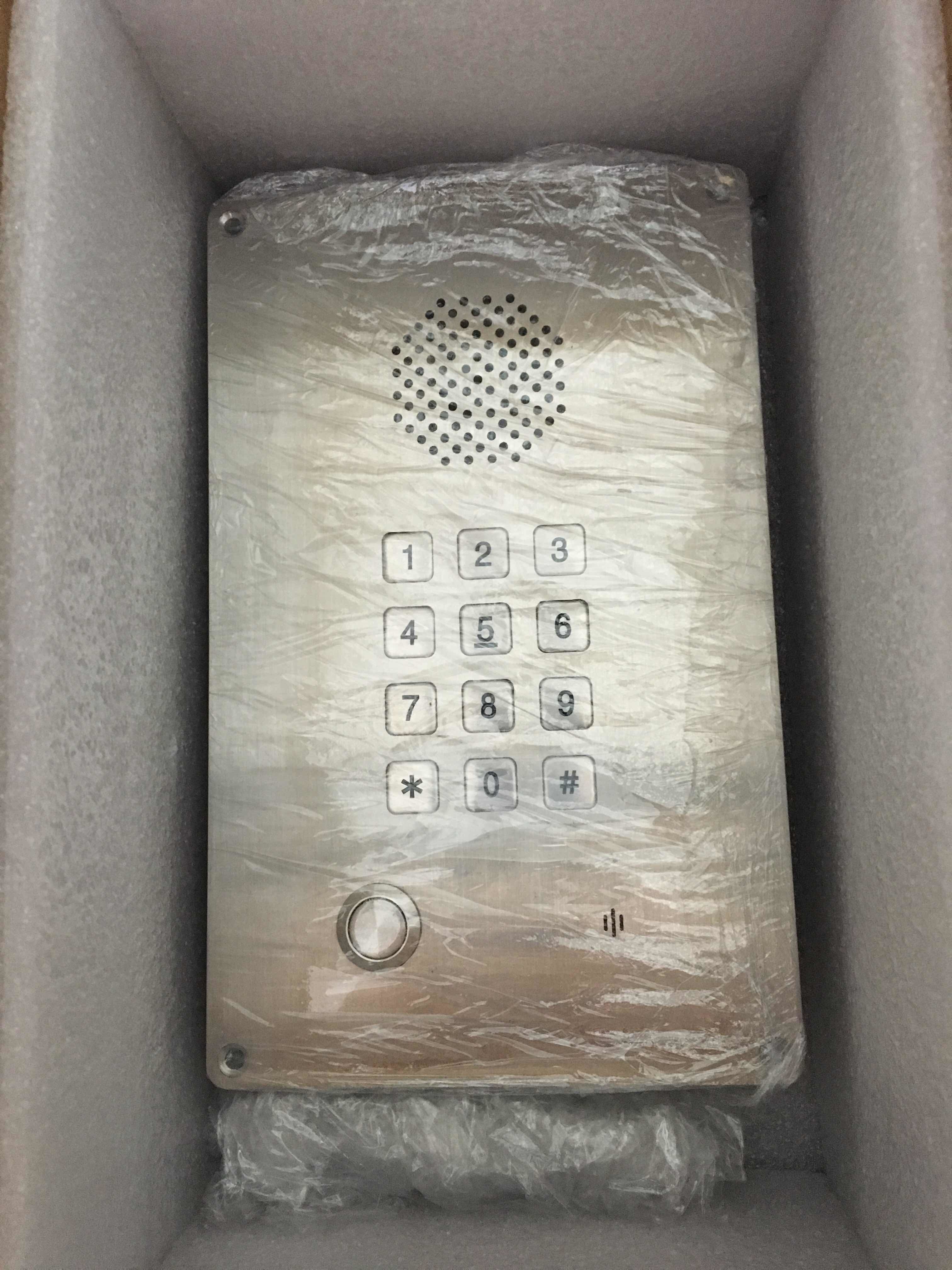

PACKAGE of the Flush Mounted Oxidation Resistance Waterproof Clean Room Telephone with 12-key
Unit size: 150*240*32 (mm)
Carton size: 340 *235 *165 ( mm )
Packaging materials: pearl cotton, carton
Gross weight: 3 KG
Net weight: 2 KG
