| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JR101-CB-L |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Aluminum Alloy | Weather Resistant: | IP`66-IP67 |
|---|---|---|---|
| Color: | Yellow, Blue, Orange (or Optional) | Version: | Analogue, SIP/VoIP, GSM/3G |
| Size: | 246 *339 *126 (mm) | Installation: | Wall / Pillar Mounted |
| Net Weight: | 8 KG | Vandal Resistant: | Yes |
| Warranty: | 2 Years | ||
| High Light: | weather resistant telephone,weatherproof telephone box |
||

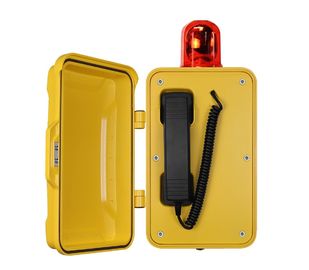

Waterproof Industrial Ringdown Telephone with Flashing Lamp for Emergency

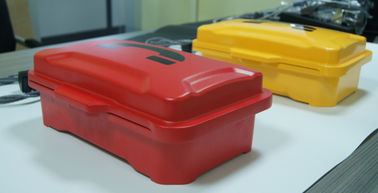

This Waterproof Industrial Ringdown Telephone is fully contained within a corrosion resistant cast aluminium alloy weatherproof case. With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
In an application not involving a telephone operator, a two-point automatic ringdown circuit, or ringdown, has a telephone at each end. When the telephone at one end goes off-hook, the phone at the other end instantly rings. No dialing is involved and therefore telephone sets without dials are sometimes used.
Applications of the Waterproof Industrial Ringdown Telephone with Flashing Lamp for Emergency
This weatherproof industrial telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.
Main Features of the Waterproof Industrial Ringdown Telephone with Flashing Lamp for Emergency
- Standard Analog phone
- Phone line powred
- Weather proof protection to IP66-IP67
- Aluminum alloy die-casting body
- Vandal resistant handset
- With curly lines, can stretch to more than 130 mm length
- Programmable for auto-dial
- The light will flashing when there is an incoming call
- Wall/ Pillar mounted, simple installation
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant
Technical Parameters of the Waterproof Industrial Ringdown Telephone with Flashing Lamp for Emergency
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package of the Waterproof Industrial Ringdown Telephone with Flashing Lamp for Emergency
Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 7 KG
Gross weight: 8 KG
Main Features of the flashing light
- Adopted the vacuum processing mirror,Improve the brightness diffusion
- Rated revolution:120-140RPM
- Adopt High Brightness LED light bulb glow, illuminance＞800LX, Lifespan＞1000 hours
- Material:lampshade-PS Base-ABS Reflector-ABS
- Protection class:IP55
