| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JR101-CB-L |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Aluminum Alloy | Weather Resistant: | IP`66-IP67 |
|---|---|---|---|
| Color: | Yellow, Blue, Orange (or Optional) | Version: | Analogue, SIP/VoIP, GSM/3G |
| Size: | 246 *339 *126 (mm) | Installation: | Wall / Pillar Mounted |
| Net Weight: | 8 KG | Vandal Resistant: | Yes |
| Warranty: | 2 Years | ||
| High Light: | weather resistant telephone,weatherproof telephone box |
||

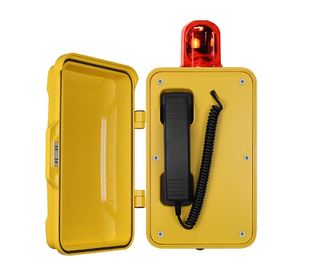

Vandal Resistant IP67 Waterproof Hotline Telephone with Light for Industry

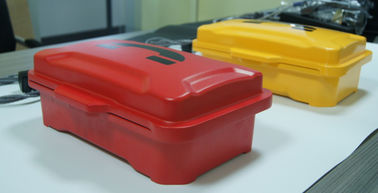

This industrial telephone is fully contained within a corrosion resistant cast aluminium alloy weatherproof case. With a door providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.
The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use.
Main Features of the Vandal Resistant IP67 Waterproof Hotline Telephone with Light for Industry
- Standard SIP/VoIP phone
- Power supply: PoE, or 12V DC
- RJ45 port connector
- Aluminum alloy die-casting body
- Vandal resistant handset
- With curly lines, can stretch to more than 130 mm length
- Weather proof protection to IP66-IP67
- Programmable for auto-dial
- The light will flashing when there is an incoming call
- Wall/ Pillar mounted, simple installation
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant
Applications of the Vandal Resistant IP67 Waterproof Hotline Telephone with Light for Industry
This weatherproof industrial telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.
Technical Parameters of the Vandal Resistant IP67 Waterproof Hotline Telephone with Light for Industry
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle: 1.5W -Active: 1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package of the Vandal Resistant IP67 Waterproof Hotline Telephone with Light for Industry
Unit Size: 339*246*126 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 7 KG
Gross weight: 8 KG
