GSM/3G Outdoor Public Help Wall Mounted Telephones , Industrial Analog Phones

China GSM/3G Outdoor Public Help Wall Mounted Telephones , Industrial Analog Phones supplier
GSM/3G Outdoor Public Help Wall Mounted Telephones , Industrial Analog Phones supplier GSM/3G Outdoor Public Help Wall Mounted Telephones , Industrial Analog Phones supplier GSM/3G Outdoor Public Help Wall Mounted Telephones , Industrial Analog Phones supplier

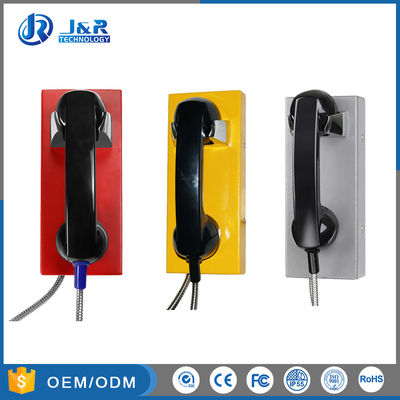

Large Image :  GSM/3G Outdoor Public Help Wall Mounted Telephones , Industrial Analog Phones

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR202-CB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Contact Now
Detailed Product Description
Material: Stainless /Cold Rolled Steel Warranty: 2 Years
Weather Protection: IP55-IP65 Vandalproof Handset: Yes
Hotline: Yes Gross Weight: 4 KGS
Armored Cord: Yes Magnetic Hook: Yes
Color: Red,Yellow,Gray Standard Version: Analog/SIP/GSM/3G

GSM/3G Outdoor Public Help Phone,Hotline handset Telephone wiht hooder for campus





APPLICATIONS

Ideal for Railway applications, Marine applications, Tunnels. Underground Mining, Firefighter, Industrial, Prisons, Jail, Parking lots, Hospitals, Guard Stations, Police stations, Bank halls, ATM machines, Stadiums, inside and outside building etc.



This Vandal Resistant Telephone with armored cord is housed in robust cold rolled steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.



MAIN FEATURES

- Standard Analogue phone, or SIP/VoIP phone, or GSM/ 3G Phone

-Robust housing, constructed of cold rolled steel with powder coat

- Vandal resistant handset and armored cord

- Full Rugged & Hotline easy to operate



- Wall/Pillar mounting, simple installation

- Weather proof protection IP65

- 4 additional buttons can programmable for auto-dial



- Phone line powered (Analogue)

- External power supply or PoE (SIP)

- RJ45 Port for SIP connection

- Inductive coupler fitted as standard for hard of hearing

-CE, FCC, RoHS, ISO9001 compliant



Technical Specification

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.




SIP Version
Power Supply  PoE or 12V DC
Power Consumption  -Idle: 1.5W
 -Active: 1.8W
SIP Protocol  SIP 2.0 (RFC3261)
Support Codec  G.711 A/U, G.722 8000/16000, G.723, G.729
Communication Type  Full duplex
Ringer volume  - 90~95dB(A) at a distance of 1 m
 - 110dB(A) at a distance of 1 m (for external horn speaker)



Ambient conditions
Protection type  IP 66 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C






PACKAGE

unit size: 240 *100 *117(mm)

Carton size: 340 *235 *165 (mm)

Packaging materials: pearl cotton, carton

Net weight: 2.5 KG

Gross weight: 3 KG



GSM/3G Outdoor Public Help Wall Mounted Telephones , Industrial Analog Phones

GSM/3G Outdoor Public Help Wall Mounted Telephones , Industrial Analog Phones

GSM/3G Outdoor Public Help Wall Mounted Telephones , Industrial Analog Phones
