| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | J&R |
| Certification: | CE, FCC, RoHS, IP67, ISO9001:2015 |
| Model Number: | JR101-CB |
| Minimum Order Quantity: | 1 set |
| Price: | Reconsideration |
| Packaging Details: | pearl cotton, carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 sets per month |
| Material: | Aluminum Alloy | Color: | Blue, Yellow (or Optional) |
|---|---|---|---|
| Version: | Analog, VoIP, GSM/3G | Weather Resistant: | IP66 |
| Warranty: | 2 Years | Warranty: | 2 Years |
| Size: | 246 *339 *109 (mm) | Net Weight: | 5 KG |
| Installation: | Wall/ Pillar Mounting | ||
| High Light: | weather resistant telephone,weatherproof telephone box |
||

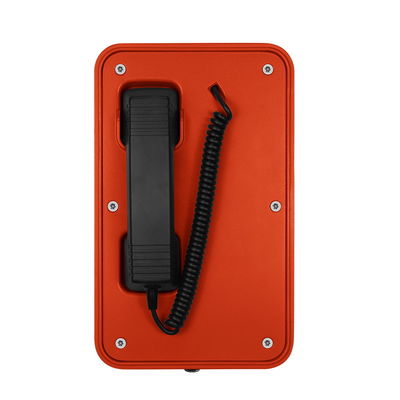

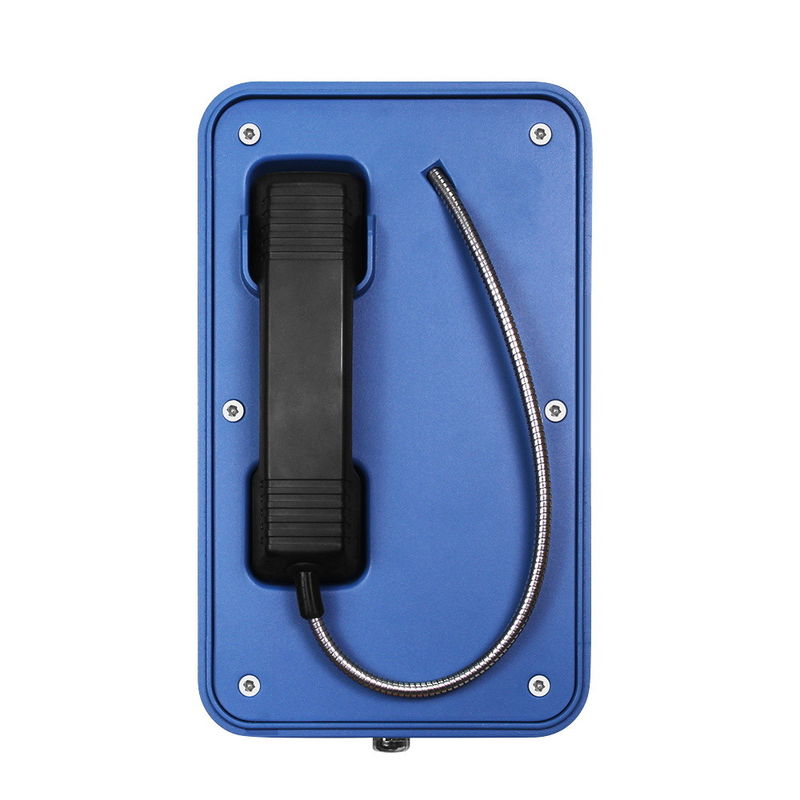

Corrosion Resistant Ringdown Telephone for Industry, Weatherproof Hotline Telephone
Applications of the Corrosion Resistant Ringdown Telephone for Industry, Weatherproof Hotline Telephone
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.
Main Features of the Corrosion Resistant Ringdown Telephone for Industry, Weatherproof Hotline Telephone
- Standard Analog phone
- Also available in SIP/ VoIP and GSM/3G version
- Aluminum alloy die-casting body
- Vandal resistant handset and volume circle line
- Weather proof protection to IP66
- Programmed for auto-dial
- Wall / Pillar mounting
- Simple installation
- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant
- Phone line powered (Analog version)
- External power supply or PoE (SIP-VoIP)
- RJ45 port for SIP phone
Technical Parameters of the Corrosion Resistant Ringdown Telephone for Industry, Weatherproof Hotline Telephone
| Analogue Version | |
| Power Supply | From the analogue telephone network |
| Supply Voltage | 24 VDC to 65 VDC |
| Supply Current | 20 mA DC to 100 mA DC |
| Ringer Volume | - 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Dialing Method | DTMF mode in accordance with ITU-T recommendation Q.23. |
| SIP Version | |
| Power Supply | PoE or 12V DC |
| Power Consumption | -Idle:1.5W -Active:1.8W |
| SIP Protocol | SIP 2.0 (RFC3261) |
| Support Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Communication Type | Full duplex |
| Ringer volume | - 90~95dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker) |
| Ambient conditions | |
| Protection type | IP 66 as per EN60529 |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -45°C to +85°C |
Package of the Corrosion Resistant Ringdown Telephone for Industry, Weatherproof Hotline Telephone
| Unit Size: | 339*246*109 mm (H *W * D) |
| Carton Dimension: | 200 * 300 *440 mm (H * W * D) |
| Packaging materials: | pearl cotton, carton |
| Net Weight: | 5 KG |
| Gross weight: | 6 KG |
