Weatherproof Analog Anti Explosion Telephone With LCD Display For Hazardous Areas

Product Details

Place of Origin: Shenzhen, China

Brand Name: J&R

Certification: ATEX, CE, FCC, RoHS, IP67, ISO9001

Model Number: JREX101

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Reconsideration

Packaging Details: pearl cotton, carton

Delivery Time: 5-8 working days

Payment Terms: L/C, T/T

Supply Ability: 1000 sets per month

Get Best Price
Product Details
High Light:

ex proof telephone

,

explosion proof ip phone

Material:
Aluminium Alloy
Color:
Orange, Others Optional
Warranty:
2 Years
Power Supply:
Phone Line Powered
Weather Resistant:
IP67
Weight:
8 KG
Installation:
Wall Mounting
Unit Size:
246*339*126 (mm)
Vandal Resistant:
Yes
Material:
Aluminium Alloy
Color:
Orange, Others Optional
Warranty:
2 Years
Power Supply:
Phone Line Powered
Weather Resistant:
IP67
Weight:
8 KG
Installation:
Wall Mounting
Unit Size:
246*339*126 (mm)
Vandal Resistant:
Yes
Product Description

Weatherproof Analog Anti Explosion Telephone with LCD Display for Hazardous Areas


This Analogue Industrial Explosion-proof Telephone is designed for voice communication in the hostile environment where reliability, efficiency and safety are of prime importance. The telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust, Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.



MAIN FEATURES
- Corrosion resistant aluminum alloy die casting housing, available in four colors, with NPT conduit entries and Type 3 / IP67 environmental ratings
- Certificated for use in Hazardous areas of Gas Group IIB/IIA


- Zone classification: Zone 1, Zone 2 and Zone 22
- Ex ’d’ protected
- Intrinsically safe Ex”ib” certified
- Temperature classification:T4


Hermetically sealed non-contact hook sensing switch improves system reliability
Mounting: Wall/column/structural
Captive cover screws prevent loss during installation
- Power supply: Phone Line Powered


- With LCD display
- Completely programmable weatherproof keypad designed to be used with gloves
- No.of keys (TOTAL 15KEYS): 0-9, *, #, Redial, Mute, Last Number Redial

Dimension: Approx. 246*339*126mm (H*W*D)
Weight: 8Kg. (Approx)



This product has the following explosion protection:
II 2G Rx e ib [ib] mb IIC T4 Gb
III 2D Ex ib [ib] tb IIIC T135 °
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22



APPLICATIONS
1. Suitable for explosive gas atmospheres Zone 1, 2, 22.
2. Suitable for temperature class T1 ~ T6.
3. Widely used in oil exploration, chemical, military, pharmaceutical, oil refining and other hazardous environments and depots, offshore oil platform, oil tankers and other related industrial application, etc.



TECHNICAL SPECIFICATION

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



Ambient conditions
Protection type IP 66 as per EN60529
Operating temperature -40°C to +70°C
Storage temperature -45°C to +85°C



OPTIONAL
- Add Horn & Lamp on the top

- Key lockable latch
- Upper & lower internal mounting plates
- Flat label area or custom embossed logo on door
- Vandal resistant screws for upper mounting plate


PACKAGE
Unit Size: 246*339*126mm (H*W*D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 7 KG
Gross weight: 8 KG

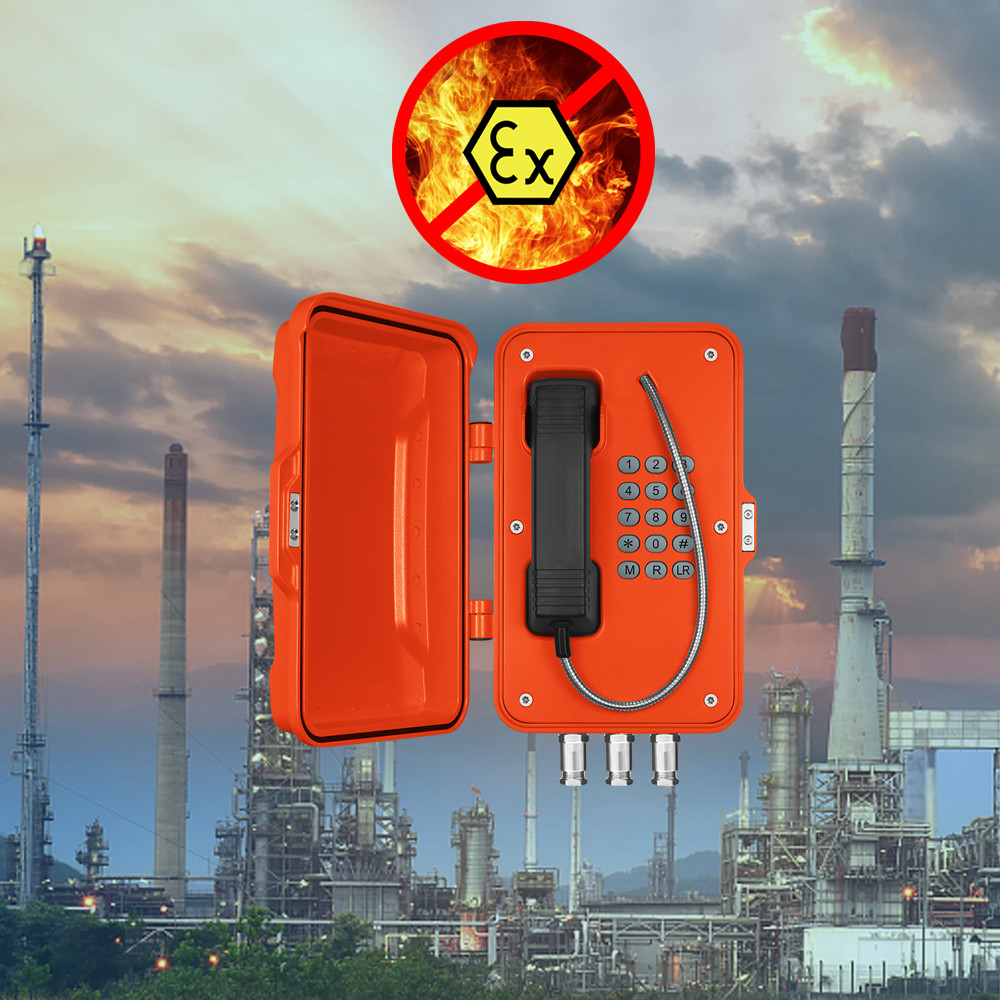

Weatherproof Analog Anti Explosion Telephone With LCD Display For Hazardous Areas 0
