Weatherproof Industrial Analog Telephone , Fire Fighting Telephone System

China Weatherproof Industrial Analog Telephone , Fire Fighting Telephone System  supplier
Weatherproof Industrial Analog Telephone , Fire Fighting Telephone System  supplier Weatherproof Industrial Analog Telephone , Fire Fighting Telephone System  supplier Weatherproof Industrial Analog Telephone , Fire Fighting Telephone System  supplier

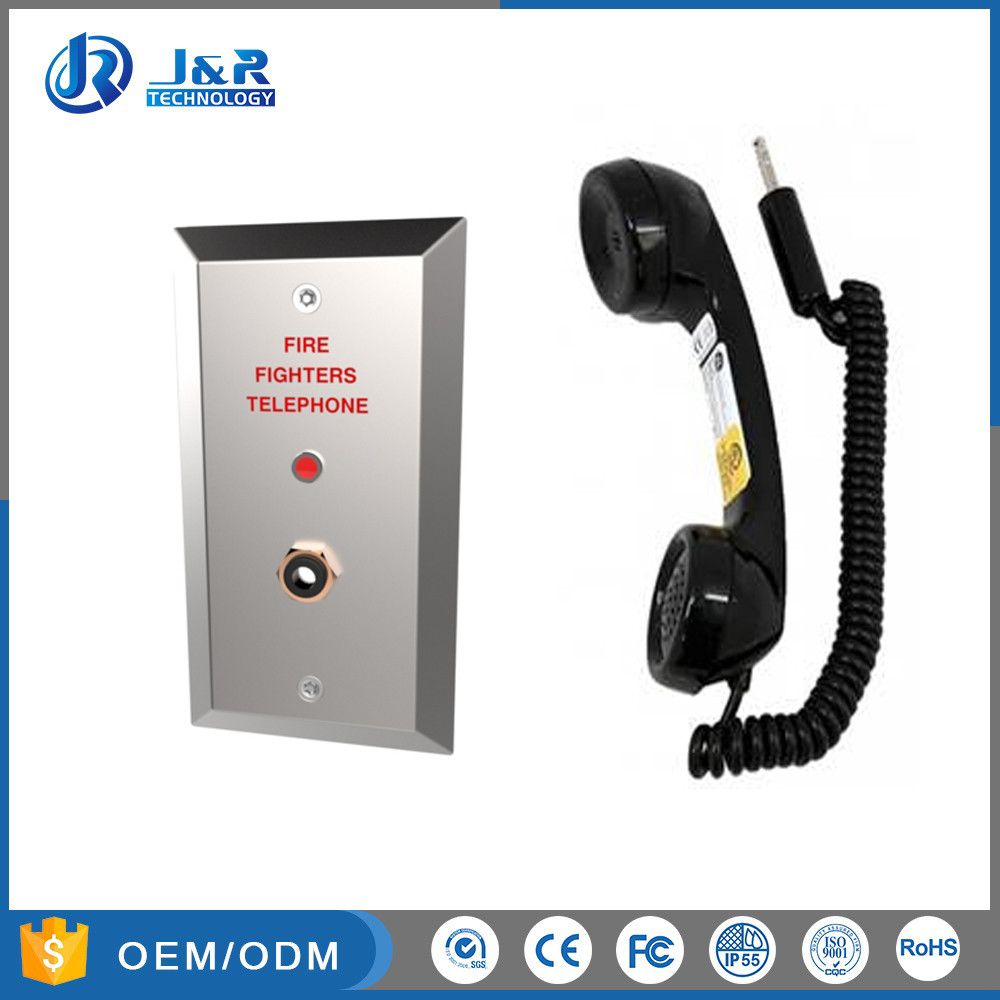

Large Image :  Weatherproof Industrial Analog Telephone , Fire Fighting Telephone System

Product Details:

Place of Origin: Shenzhen, China
Brand Name: J&R
Certification: CE, FCC, RoHS, ISO9001
Model Number: JR301-SC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Reconsideration
Packaging Details: pearl cotton, carton
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 3000 sets per month
Contact Now
Detailed Product Description
Material: Stainless Steel Warranty: 2 Years
Weather Protection: IP65 Unit Size: 150*80 *60 (mm)
Net Weight: 1 KG Handset: ABS Material With Jack
With Indicator Lamp: Yes Power Supply: Phone Line Powered

Vandal-proof Analog Fire Fighter Telephone with Rugged handset



The Fire Fighters Telephone is designed to meet the needs of client who experience loss through vandalism.Housed in cold rolled steel box and manufactured to a high standard, these telephones offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times.





MAIN FEATURES

- Standard Analog fire phone

- Robust housing, constructed of stainless steel

- Vandal resistant metal button



- Insert handset jack plug to dial hotline number
- Surface mounting, simple installation

- Weather proof protection: IP55 to IP65



- Power supply: Phone line powered

- 2 X Tamper proof screws for mounting

- CE, FCC, RoHS compliant





TECHNICAL PARAMETERS

Analogue Version
Power Supply From the analogue telephone network
Supply Voltage 24 VDC to 65 VDC
Supply Current 20 mA DC to 100 mA DC
Ringer Volume - 80dB(A) at a distance of 1 m
- 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method DTMF mode in accordance with ITU-T recommendation Q.23.



Ambient conditions
Protection type  IP 55 as per EN60529
Operating temperature  -40°C to +70°C
Storage temperature  -45°C to +85°C



Weatherproof Industrial Analog Telephone , Fire Fighting Telephone System


PACKAGE

Unit size: 150*80 *60 (mm)

Packaging materials: pearl cotton, carton

Gross weight: 1.5 KG

Net weight: 1 KG



Weatherproof Industrial Analog Telephone , Fire Fighting Telephone System
