Moisture Resistant Tunnel / Mining Intercom Suitable for Any Standard PABX

Brand Name:	J&R
Model Number:	JR103-FK
MOQ:	1 set
Price:	Reconsideration
Payment Terms:	L/C, T/T
Supply Ability:	3000 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

CE, FCC, RoHS, IP67, ISO9001:2015

Material:

Aluminum Alloy

Color:

Red, Yellow, Blue (or Optional)

Power Supply:

Phone Line Power

Warranty:

2 Years

Weather Resistant:

IP67

Size:

246 *339 *109 (mm)

Net Weight:

6 KG

Installation:

Wall/ Pillar Mounting

Packaging Details:

pearl cotton, carton

Supply Ability:

3000 sets per month

Highlight:

weatherproof analog phone

heavy duty analog phone

Tunnel Mining Intercom

Product Description

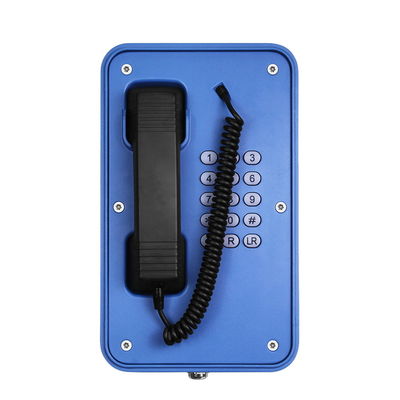

Moisture Resistant Tunnel Intercom, Vandal-proof Watertight Mining Call Box

This Emergency call box is based on a Aluminum alloy die-casting body and provide a clear loud-speaking operation for any public area. It is designed to meet the needs of clients who experience loss through vandalism.

As a standard analogue telephone, this unit provides basic telephone functions and can be connected to any standard two-wire telephone line, including analogue PABX lines and PSTN.

Main Features:
- Standard Analogue phone
- Aluminum alloy die-casting body
- Vandal-resistant handset and armored cord
- Weather proof protection to IP67

- Phone line powered (Analogue)

- Wall/ Pillar mounting, simple installation

- Inductive coupler fitted as standard for hard of hearing
- CE, FCC, ISO9001, RoHS compliant

- Full keypad with memory, 0-9 buttons can be programmed as speed dial button
“LR” button for last number redial
“R” for flash recall
“M” for muting

Applications
This weatherproof telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.

Technical Specification

Ambient conditions
Protection type	IP 66 as per EN60529
Operating temperature	-40°C to +70°C
Storage temperature	-45°C to +85°C

Analogue Version
Power Supply	From the analogue telephone network
Supply Voltage	24 VDC to 65 VDC
Supply Current	20 mA DC to 100 mA DC
Ringer Volume	- 80dB(A) at a distance of 1 m - 110dB(A) at a distance of 1 m (for external horn speaker)
Dialing Method	DTMF mode in accordance with ITU-T recommendation Q.23.

Package
Unit Size: 339*246*109 mm (H *W * D)
Carton Dimension: 200 * 300 *440 mm (H * W * D)
Packaging materials: pearl cotton, carton
Net Weight: 5 KG
Gross weight: 6 KG
